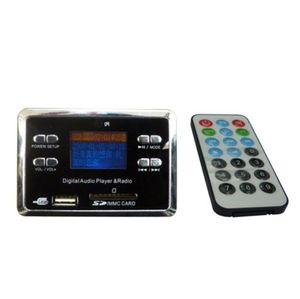

Remote LCD USB SD MP3 Player Module A

Prod Model:	Remote LCD Module A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1:	New Original
2:	High Quality

Product Description

Remote LCD USB-SD MP3 Player Module -A
Description:
This module has multimedia MP3 audio decode board, which highly integrated single-chip. And add extra signal switch, USB / SD switch, digital display. The chief advantage are fast user-friendly and convenient. What's more, not only enrich programs with radio feature, but also enhance the U disk and SD compatibility. This module is widely used in home music centers, car stereo and computer multimedia stereo, professional audio active, iPod audio, AV amplifier, massage chairs, electronic gifts, electronic toys and so on. The module has been in mass production, stable performance. And we offer a wide selection of this panels.
Product Parameter:
1. Support to switch external signals directly
2. Support automatic switchover for USB/SD/AUX/FM
3. Built-in MP3 decoding chip
4. Support music playback with USB flash drive, SD card and MMC card
5. Support USB&SD card switchover, previous, next, VOL+/VOL-, EQ, play/pause, stop, single cycle, mute, shutdown, random choice of songs
6. Support FAT16 and FAT32 file systems
7. Support the songs of MP1 Layer3, MP2 Layer3, MP3 Layer3 versions
8. Support MP3 songs of 30-320kbps
9. Support memory store function when power off
10. With LCD support display of date and time, and synchronous lyrics
11. Options voltage for power input: 5V or 12V ( the default is 5V )
12. Dimension: 55(mm) * 50(mm)
Panel Key-Press Description:
1. "POWER": Long press this button to enter the standby mode, and long press this button again for power on.
2. "SET": This button is for time setting. Setting order: TIMEALARMSLEEPLANGUAGEFINISH
3. "VOL-": Can set VOL-, TIME-, ALARM-, and POWEROFF-.
4. "VOL+": Can set VOL+, TIME+, ALARM+, and POWEROFF+.
5. "PLAY/PAUSE": It functions PLAY/PAUSE at USB/SD state; Short press it to search and save channels.
6. "MODE": When this player works with SD card and USB flash drive together, it has such switching order as USBSDAUXFMUSB; When only with USB flash drive, it has the switching order as USBAUXFMUSB; When only with SD card, it has such switching order as SDAUXFMSD; And the backlight will get on at the standby mode when you press this button.
7. "PREV": Short press this button at USB/SD state for the previous song; Short press this button at FM status for the previous channel; And for settings of TIME, ALARM and POWEROFF as well.
8. "NEXT": Short press this button at USB/SD state for the next song; Short press this button at FM status for the next channel; And for settings of TIME, ALARM and POWEROFF as well.
Remote Keys Description:
1. POWER: The same with the panel button.
2. MODE: When have SD card and U disk at the same time: The switching sequence is the USB SD AUX FM USB; When have only U disk: The switching sequence is the USB AUX FM USB; When have only SD card: The switching sequence is the SD AUX FM SD.
3. PREV: The same with the panel button.
4. NEXT: The same with the panel button.
5. VOL+: The same with the panel button.
6. VOL-: The same with the panel button.
7. REP: Switch over between single loop and all loop at the USB/SD mode. When power on, the player loops all songs by default.
8. SET: The same with the panel button.
9. MUTE: Press it for mute, and press it again for deactivating.
10. EQ: Sound field mode. NORMALJAZZROCKPOPCLASSICNORMAL
11. PLAY/PAUSE: The same with the panel button.
Supported Languages:
1, Simplified Chinese
2, Traditional Chinese
3, Japanese
4, Korean
5, Arabic
6, Greek
7, Russian
8, MID-European Languages
9, West-European Languages
10, Turkish
11, Hebraic
12, Baltics
13, Vietnamese
14, Thai
Item List:
1, MP3 module with Panel
2, Remote Controller
