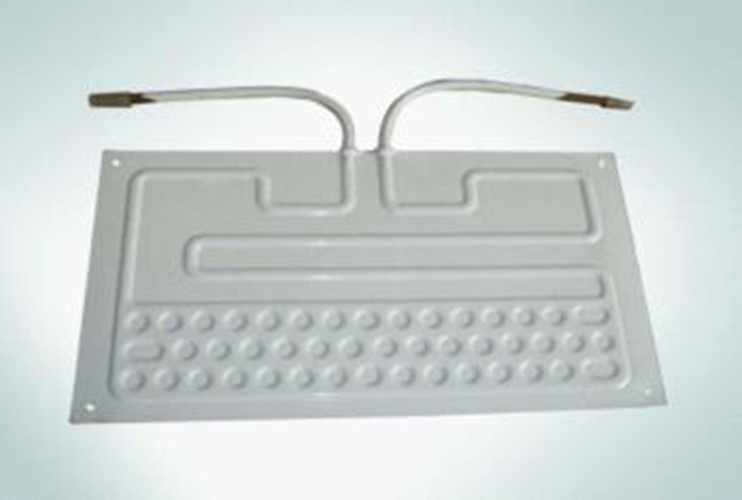

Refrigerator/Water Dispenser Roll Bond Evaporator

Refrigerator/Water Dispenser Roll Bond Evaporator
Price: US $ 15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: RTK series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hardness Of Coating: More Than 2h .
Adhesion Coating: More Than Two Grade
Coating Thickness: 40-90um
Surface: Powder Painting
Application: Wine Cooler Parts
Parts: Evaporator

Product Description

Roll bond evaporator, frigerator evaporator, refrigeration part, freezer evaporator, ice box evaporator
Different size avaliable. We could supply according to customers' drawing or samples.

Specifications
1) Raw material:
Al-plate: Finished products thickness: 1.1 ~ 2.0mm
Al plate thickness: 1.4 ~ 2.5mm
2) Structure:
Double side rollbond evaporator
Single side rollbond evaporator
Part single side rollbond evaporator
3) Key process:
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
4) Technical Standards:
Size: Width 590mm (max), length 2050mm (max)
Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
5) Performance:
Surface treated with powder painting to prevent the corrosion
Inner cleanness can meet the requirement of R134a & CFC cooling system.
Can satisfy the cooling capability requirements.
3.5 million sets per year (10000 sets per day)

We supply roll bond evaporator(evaporator for refrigerator and ice box),evaporator,condenser,refrigeration .

Raw material

Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm

Structure

Double side  rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator

Key process

Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Technical Standards

1) Size: width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.

Performance

1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.

Performance

3.5 million sets per year (10000 sets per day)



R134a Cooling System Tube Inside standards

Residual moisture

≤5 /100cm3

Residual impurity

≤1 /100cm3

Residual mineral oil

≤100 /100cm3

Residual chlorine

≤5vloppm

Residual paraffin

≤3 /

Biggest single impurity

≤0.5mm



Specification of coating

Coating thickness

thickness of coating40 90 μ m

Hardness of coating

≥2H

Impact of coating

50cm?kg/cm impact, no crack

Adhesion of coating

≥two grade

Flexibility of coating

Around R=3D bend 180?, no crack or no fall off

Color tolerance of powder
painting

E≤1.5



Please feel free to contact with me.
Ms. Lydia
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
