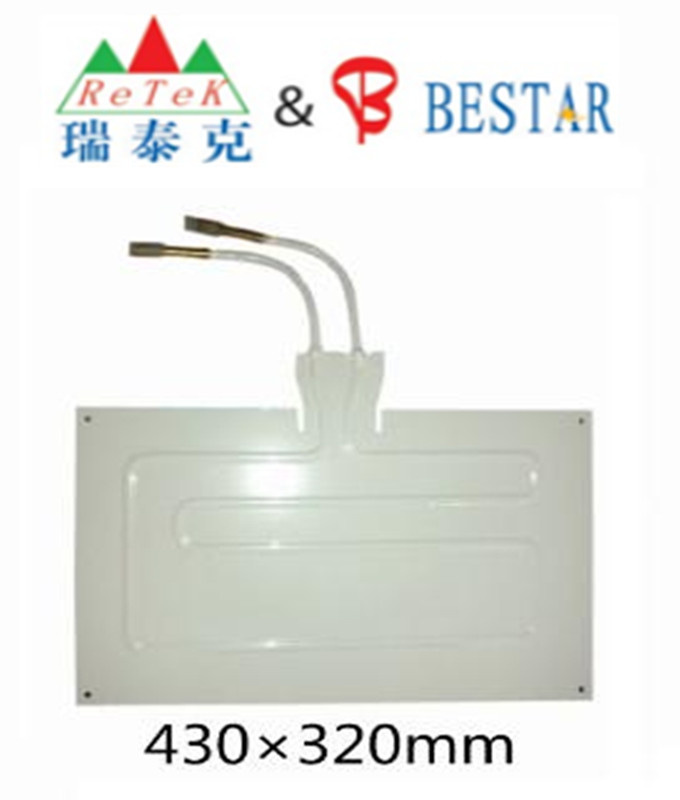

Refrigerator Roll Bond Evaporator Plate

Prod Model:	Retek-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Refrigerator Roll Bond Evaporator
Structure:	Double Side and Single Side
Finish:	Painting
Color:	White
Condition:	New
Raw Material:	Aluminium Plate and Copper Tube
Principle:	Regenerative Heat Exchanger
Structure Material:	Metal Material
Application:	Heater, Cooler, Condenser
Heat Transfer Surface:	Plate Heat Exchanger

Product Description

Raw materials (Al plate)
1. Al plate: The thickness of finished product is 1.1-2.0mm
2. The thickness of raw Al plate: 1.7-3.0mm
Size for your reference:
508X1219, 508X1093, 508X1143,
558X1193, 559X1270, 558X1320, 432x1118,
381x915, 381x991, 381x838, 381X229, 381X1042,
350X500, 350X410, 380X310, 380X610, 380X120,
457X991, 457X1067, 457X1194,
482X1092, 482X1143, 483X1220, 419X1067
Key process:
Preparing materials cleaning printing rolling annealing - blowing up punching folding and sharpening adding the capillary assemble welding leakage testing cleaning and drying coating - inspection packing.
We can produce according to your requirement.
Structure:
Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll bond evaporator.
Performance:
Surface is treated with powder painting to prevent the corrosion.
Inner cleanness can meet the requirement of R134a&CFC cooling system.
Can satisfy different cooling capability according to customer requirement.
Main Market:
Pakistan, India, Nigeria, Morocco, Egypt, Australia, Colombia, UK...
If you are interested in our roll bond evaporator, pls give us detailed specification.
Your drawings or samples is also OK. We can produce according to your requirement.
Best regards
Betty



Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm Structure   Double side rollbond evaporator,   single side rollbond evaporator,   part single side rollbond evaporator Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing Technical Standards 1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. Performance 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. Capacity 3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture ≤5 /100cm3 Residual impurity ≤1 /100cm3 Residual mineral oil ≤100 /100cm3 Residual chlorine ≤5vloppm Residual paraffin ≤3 / Biggest single impurity ≤0.5mm

Specification of coating

Coating thickness thickness of coating40 90 μ m Hardness of coating ≥2H Impact of coating 50cm?kg/cm impact, no crack Adhesion of coating ≥two grade Flexibility of coating Around R=3D bend 180?, no crack or no fall off Color tolerance of powder painting
