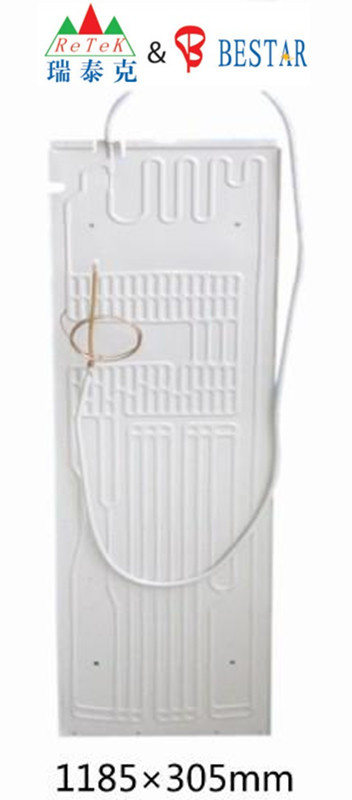

Refrigerator Roll Bond Evaporator for Solar Panel

Refrigerator Roll Bond Evaporator for Solar Panel
Price: US $ 15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: roll
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Al Plate
Structure: Double Side,Single Side,Part Single Side
Coating Thickness: 40um-90um
Application: Wine Cooler Parts
Parts: Evaporator

Product Description

We can supply aluminum roll bond evaporator for refrigerator and ice-box.

Raw material Al-plate: Finished products thickness: 1.1-2.0mm,
Raw material Al plate thickness: 1.4-2.5mm
Structure Double side rollbond evaporator,
Single side rollbond evaporator,
Part single side rollbond evaporator
Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Technical Standards
1) Size: Width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.

Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.

R134A Cooling System Tube Inside standards
Residual moisture ≤ 5 /100cm3
Residual impurity ≤ 1 /100cm3
Residual mineral oil ≤ 100 /100cm3
Residual chlorine ≤ 5vloppm
Residual paraffin ≤ 3 /
Biggest single impurity ≤ 0.5mm

Coating:
Coating thickness thickness of coating40 90 μ M
Hardness of coating ≥ 2H
Impact of coating 50cm? Kg/cm impact, no crack
Adhesion of coating ≥ Two grade
Flexibility of coating Around R=3D bend 180? , no crack or no fall off
Color tolerance of powder painting E≤ 1.5


Al- plate
Finished products thickness:1.1-2.0mm
Raw material Al plate thickness1.4-2.5mm
Coating thickness40-90um
Coating hardnessMore than 2H


If any needs, pls contact me
Best regards!
Amanda
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
