| Prod Model: |
15G, 20G, 25G, 30G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Thickness: |
0.3-0.5mm |
| Molecular Sieves: |
Xh-09 |
| Item: |

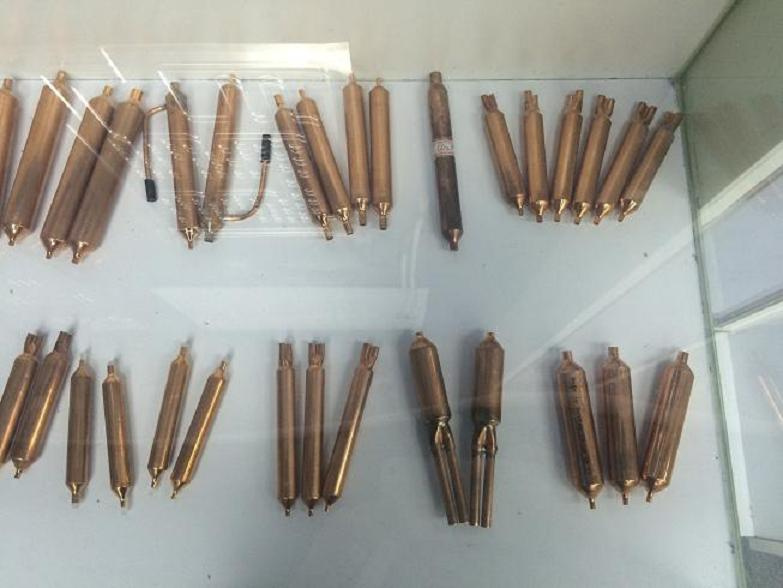

Copper Filter Drier |
| Use: |
Refrigerator Parts |
| Application: |
Refrigerator Parts |
| Parts: |
Filter Drier |
Product Description
The Diameter and Length of the copper tube can be customized by your requirements, the inlet and outlet also can be designed by your needs.
Out current dimensions for Filter Drier:
8g: Dia. 15.8mm*L102mm
10g: Dia. 15.8mm*L112mm
15g: Dia. 18.8mm*L113mm
20g: Dia. 18.8mm*L140mm
25g: Dia. 24mm*L117mm
30g: Dia. 24mm*L130mm
40g: Dia. 24mm*L172mm
50g: Dia. 29mm*L160mm
We can also supply your accumulators and strainers.
It is for refrigerator, freezer and air conditioning use, compressor units. Copper filter drier, copper strainer, filter dryer, Refrigeration Copper Filter Dryer
5gr, 7gr, 9gr, 10gr, 12gr, 15gr, 20gr, 30gr, 45gr
R12, R134A, R22, universal type.
Different diameter and different wall thickness
Both ends cappped or welded with copper tubes, access valves or flare nuts.
Packing: In common plastic bag/vacuum packing, then packed into carton or drum.
We could produce according to your drawing and sample, pls contract me for more information.
|
Molecular Sieves
+5%,-0% |
Body diameter
0.10mm |
Overall Length
2mm |
Screen Depth
2mm |
CF 5 |
5 gr |
16 |
80 |
24 |
CF 7 |
7 gr |
16 |
90 |
24 |
CF10A |
10 gr |
16 |
115 |
24 |
CF 10B |
10 gr |
19 |
100 |
26 |
CF 12 |
12 gr |
19 |
105 |
26 |
CF 13 |
13 gr |
19 |
110 |
26 |
CF 15 |
15 gr |
19 |
115 |
26 |
CF 18 |
18 gr |
19 |
128 |
26 |
CF 20A |
20 gr |
19 |
141 |
26 |
CF 20B |
20 gr |
24 |
120 |
28 |
CF 25 |
25 gr |
24 |
125 |
28 |
CF 30 |
30 gr |
24 |
140 |
28 |
CF 35 |
35 gr |
24 |
155 |
28 |
CF 40 |
40 gr |
24 |
170 |
28 |
CF 50 |
50 gr |
29 |
160 |
30 |
| Model | Molec | External Diameter(mm) | Length(mm) |
| Tolerances | ±5% | ±0.1mm | ±3mm |
| CF5 | 5 | ø16 | 80 |
| CF7 | 7 | ø16 | 90 |
| CF7.5 | 7.5 | ø16 | 96 |
| CF8 | 8 | ø16 | 101 |
| CF10 | 10 | ø16 | 115 |
| CF10A | 10 | ø19 | 100 |
| CF12 | 12 | ø19 | 105 |
| CF13 | 13 | ø19 | 110 |
| CF15 | 15 | ø19 | 115 |
| CF18 | 18 | ø19 | 128 |
| CF20 | 20 | ø19 | 141 |
| CF20A | 20 | ø24 | 120 |
| CF25 | 25 | ø24 | 125 |
| CF30 | 30 | ø24 | 140 |
| CF35 | 35 | ø24 | 155 |
| CF40 | 40 | ø24 | 170 |
| CF50 | 50 | ø29 | 160 |
Best regards,
Angie
0086 185 6012 5536
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
