Product Description

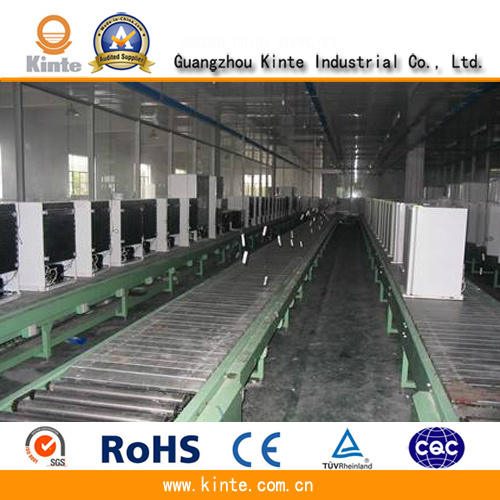

Configured for refrigerator engineering, this stationary testing system is used to test cooling and safety performances of refrigerators & freezer.
The testing system will be used on general assembly line, using a distributive test system. Two computers manage the all the test lines that can perform tests separately at any time.
Test items: Refrigerator's internal temperature, voltage withstand strength, earth resistance, leakage current as well as input power and current are tested in order to determine refrigerating effect and compressor's working condition.
This line is very suitable for the production of refrigerator industry
1 conveyor
Aluminum frame structure, legs of H550mm; Steel structure, frame dimensions of about: L W910mm
Transportation panel is steel molding, panel external dimensions: 800mmx96mmx25mm
2, No power roller line
Aluminum frame, steel legs, feet 60mm cold drawn seamlessE 2mm diameter /distance 1.5 m; Drum wall thickness steel pipe production, roller spacing 80mm, the surface of galvanized roller; H500mm; W942mm line of body size: Lmm
3, power roller line
Power roller diameter φ 60mm wall 2mm, roller pitch 100mm, galvanized/cold drawn seamless steel tube production roller surface;
Driver built-in, motor reducer with cycloid, smooth drive noise underground; Line of velocity: 6m/min, line W942mm; Body size: L
4, deg; Bending plate chain line
5, Li L-shaped box machine rotary mechanism, with the refrigerator stickers soft rubber contact surface to prevent scratching the refrigerator; Cylinder drive arm rotation, a smooth rotation; Assembly stand in front of the refrigerator box machine can be manually placed immediately after the end of care cases; Li box machine manual button (or foot switch) control.
6, lifting machine translation and power roller conveyors into one structure, aluminum alloy frame for the line between the tank body 90 ° Directional transmission; With pneumatic lifting structure, cylinder, solenoid valve high-quality products made in China, the two row of new tanks chain transfer box, lifting smooth and safe transport, no drop box phenomenon.
7, vacuum line with conveyor structure, elevation of 2.5m, 2m cable set every body a column, the entire line requested reasonable structure, beautiful appearance, flexible operation, low noise, easy installation and maintenance. Line body weeks about 40m, turning radius of about 600mm, trolley line and suspension line spacing of about, station° = 180 a200mm, made of turning part of the overall structure of spacing of about 800mm;
8, lifting 180 ° (90 ° ) rotation translation machine aluminum frame structure, steel frame, pneumatic lifting, air shift, the whole beautiful shape, reliable performance, with organic drum line together;
9, pneumatic system
9.1 gas line, pipeline set reasonable and meet production requirements;
9.2 cylinder and other components reliable, piping and fittings shall not have leakage phenomenon;
9.3 cylinder and other components of domestic high-quality brand-name selection.
10, electrical control system
Production lines at both ends of the control signal more concentrated, with the master control station structure can reduce the amount of wiring and fault point, so maintenance is more efficient and convenient.
And if you want to know more details about this testing system, please feel free to contact us.
