| Prod Model: |
defrost heater-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Refrigerator Defrost Heating Element |
| Material: |
Ss304,Ss316,Ss321,Incoloy 800,Incoloy840 |
| Voltage: |
24V-480V |
| Power: |
200W-6000W |
| Diameter: |
>6.5mm |
| Package: |
Carton |
| Delivery Time: |
15days |
| Price Terms: |
FOB Ningbo or FOB Shanghai |
| Heating Wire: |
Cr20ni80 Cr25al5 |
| Ambient Temperature: |
-60c ~ +125c |
| Application: |
Wine Cooler Parts |
| Parts: |
Fin Tube |
Product Description

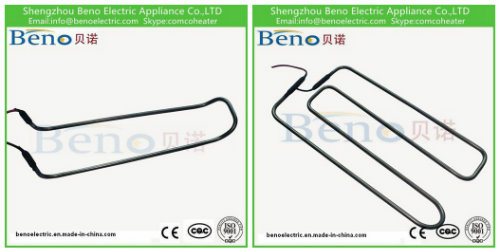

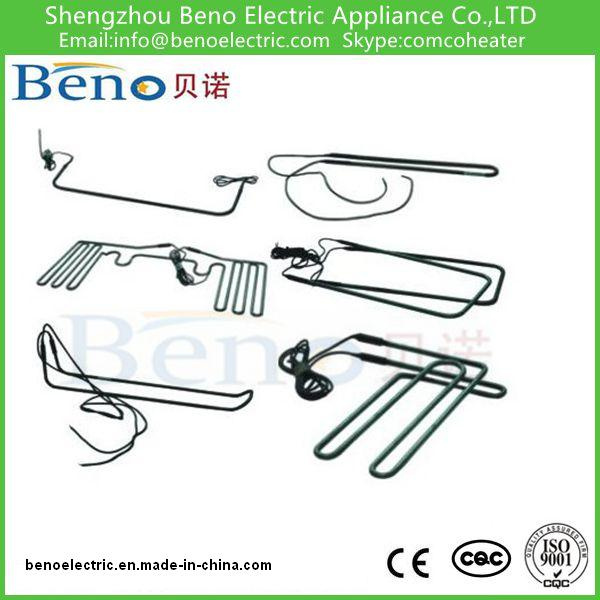

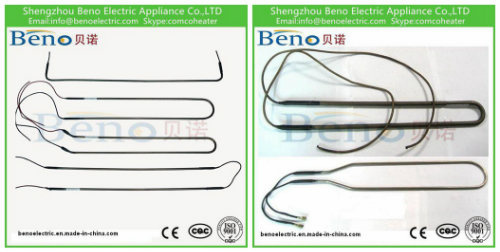

Refrigerator Defrost Heating Element
Detailed Information
Dimeter of tube | 6.5mm | 8.0mm | 8.5mm | 9.0mm | 10mm | 11mm | 12mm | 14mm | 16mm |
Material | AISI304* | AISI321* | AISI316 | AISI310S | INCOLOY840 |
Length of tube | From 200mm to 6500mm, The length will be manufacture it according to custom's require |
Length of wire | From 200mm to 2000mm, The length will be manufacture it according to custom's require |
Color | Color of tube is yellowish*or Dark-green or Black |
Application
Defrosting heating element is designed for defrosting hard of various kinds of freezer , refrigerator . It is adopted the stainless steel as the base material. Any shape to the user's requirements This properties of the product are defrosted effectually, The insulating resistance is excellent , corrosion-resistant, resist and wear out ,It is safe and reliable to carry the sealed dampproof performance of the end which obtained the national patent. The quality indexes of the products and technical indicator are all better than JB/T2379-93 standard.
Feature
1.Defrosting Heating Element is Apply in Refrigerator, Freezer , Evaporator ,Unit cooler , Condenser.
2.The material of tube is Incoloy840, 800, stainless steel 304, 321, 310S, aluminum.
3.The diameter of tube is 6.5 mm, 8 mm, 8.5mm,9mm,10mm,11mm& 12mm, 14mm,16mm and so on.
4. Ambient temperature: -60°C ~ +125°C
5. High- voltage in Test : 16,00V/ 5S
6. Firmness of connection end: ≥50N
7. High temperature molded Neoprene
8. Can be manufactured to proper length
Technoloy date
1.Insulation resistance:500MΩ
2.Leakage current to be 0.5ma max While energized at rated voltage
3.Power tolerance:+5%,-10%
4.Voltage:12V-440V
5.Diameter range:4.5mm to 20mm
6.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement
7.Air tubular heater wattage : ≥ 1w-5w/cm2Pictures:
Pls advise below details when inquire
(1). Type of Heater
(2). Wattage and Voltage
(3). Dimension of the heater Belt
(4). Drawing required for special configuration
(5). Working environment
As a trustworthy manufacturer, we can assure you for:
(1)Consistent & Uniform quality of products throughout the Merchandise.
(2)Shipments well within the time agreed between us.
(3) Most competitive prices and assuring our products quality.
We can send the sample to you for free. you can test our qanlity!!
Shengzhou Beno Electric Appliance Co. Ltd. Is specialized in the design and manufacture of electric heating elements and evaporator. We have many years' experience in design, test, verification, inspection, manufacture and packing and devote to the perfection of our technologies. With unceasing research and innovation, our products have a comprehensive structure, complete specification series, and various applications.
Our products are wieldy used for refrigerator, air-cooler, Heat Press Machine, coffeepots, electric rice cookers, oil heaters, water heaters (showering), electronic ovens, medical instruments, air heaters, air conditioners, plastic seal machines, and various mold heating devices, industrial straight tubes and profiled tubes which need electric heating.
Due to Beno has been digesting and innovating the most advanced production equipments and technology that has been introducing from foreign, we have won a lot of credit and trust from our broad masses of users. Our production has been sold to Europe, America, southeast Asia, the Middle East and so on.
In the future, our company will strive to develop higher-level products for different fields with advanced technologies, high quality, first-rate services and competitive prices. We believe that our systems for heating elements and evaporator would be considered world-wide reliable products, and we will be an ideal partner for friends in different industries.
