Product Description
UAS SERIES SUBWOOFER
The UAS is a high-powered subwoofer system mainly for indoor sound reinforcement applications. It provides extended low-frequency power bandwidth, handling high continuous operating levels and extreme transient information with minimal distortion.
Applications include:
Indoor Events, Stadiums, Theaters, Arenas, Convention Centers, Large Ballrooms etc.

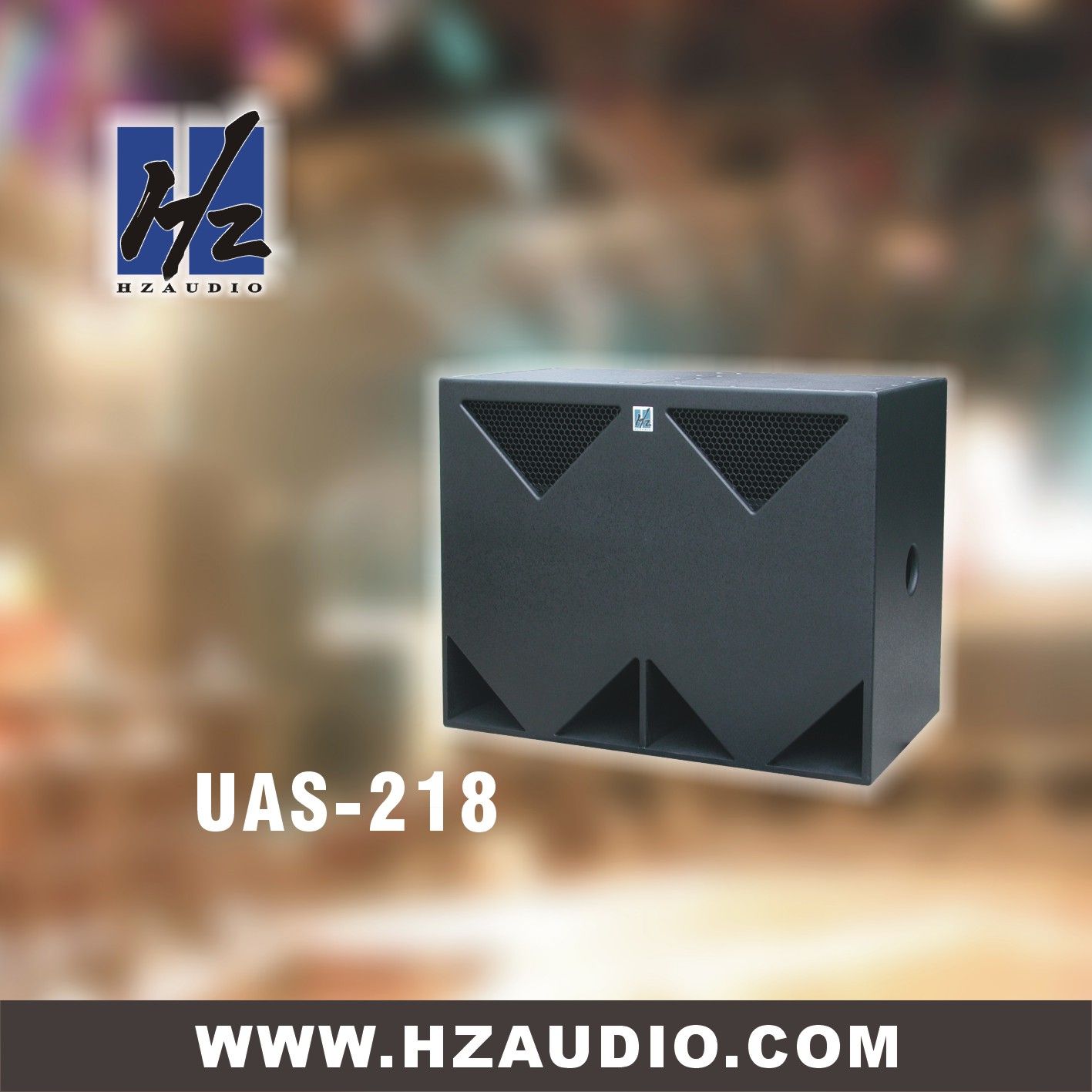

UAS-218 reflexed subwoofer
FEATURES
Concert-level
Premium component
DESCRIPTION
The reflexed design UAS-218 subwoofer is specifications in 4" aluminum flat wire voice coil and 220mm diameter magnet high efficiecy 18" woofers. Delivering surprising powerful output while audience overwhelmed by the strong sound wave but not being uncomfortable. It's engineered in concert-level and offering solution for live events, stadium, theatres, areanas.
|
Model |
UAS-215 |
UAS-218 |
|
Power handling |
900 W |
1000 W |
|
Frequency response |
45 Hz - 1000 Hz |
45 Hz - 300 Hz |
|
Impedance |
4Ω |
4Ω |
|
Sensitivity(dB/1m/1W) |
103 dB |
103 dB |
|
Long term(dB/m) |
133 dB |
127 dB |
|
Maximum level(dB/m) |
139 dB |
133 dB |
|
Dispersion |
N / A |
N / A |
|
Net weight |
68 kg |
99 kg |
|
Dimensions(mm) |
750 ( H ) x 890 ( W ) x 690 ( D ) |
796 ( H ) x 1020 ( W ) x 601 ( D ) |
|
Enclosure Material |
MDF |
MDF |
|
Finish / Colour |
PE / Black |
PE / Black |
|
Grille |
1.5mmPerforated steel framed backed |
1.5mmPerforated steel framed backed |
|
Suspenion Hardware |
N / A |
N / A |
|
Connector |
Neutrik NL4MP x 2 |
Neutrik NL4MP x 2 |
|
Drivers quantity |
LF : 15" x 2 |
LF : 18" x 2 |
Hz Audio is specialized in designing and manufacturing professional audio systems, founded in 1989, at a time when Chinese PRO audio industry was at backward elementary beginning. Hz Audio took the lead in providing high quality, concert-level systems applied with compressed driver in aluminum wire titanium diaphragm and 4" aplati wire voice coil woofer. The systems was mainly offered to clubs, ballrooms and other entertainment venues. Hz Audio changed the industry and kept playing a leading role in advanced acoustic technology.
Manufacturing
Hz Audio products are made in Foshan 66600-squre-meters plant, located in Datang National High Technoloy Industrial Park. There are different R&D labs for electronics, cabinets and other compontents engineering. Using CNC, custom-designed painting line, computerized quality control, advanced warehouse manage system and highly modified machinery, the company strictly ensure every details of manufacturing. Further, with years of experience from 1989, enable Hz plant to provide reliable and competitve products, even large orders in a matter of days.
Feedback
After years of constant effort, Hz Audio owns great reputaion among customers and audience. In the lastest years, Hz systems were adopted by many different kinds of large live concerts, high-class clubs and other applications. For instance, CCTV Sprit Festival Celebration, Zhuhai Aviation Exhibition, Chinese Costume Fashion Show (Chendu), Naning Folk Song Festival, Taichi Band Live concert etc. Most of those large-scale applications were complicated that required high quality sound system and technocial support. So far, Hz Audio Systems meet the challenge of time.
Development
With years experience on product engineering, manufacturing, installation, live events and after-sale service, Hz Audio is confident to bring you great sound experience and constantly looking for new ways to improve. In fact, nothing can stop us open up by emerging technologies and finding new solutions for our customers and audience, as well as continually improve what we already have. Thereby, your suggestions and ideas for Hz Audio development is much greatly appreciated. Hz Audio is ready for the next revolution.
