Product Description

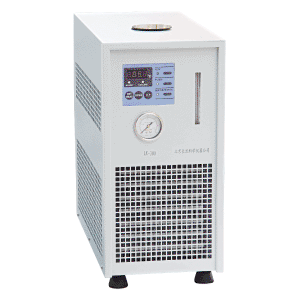

Recirculating Chiller Introduction:
LX series Recirculating chiller, use start-stop refrigeration technology, its design and production
Is industrial leading skill and reliable standards. Our chiller is very accuracy and quality is
Consistent high level. LX series is whole sealing cooling system, with PID control, fast cooling,
Constant temperature. Especially very proper to be used with requiring precision cooled
Equipment.
LX series Recirculating chiller is widely used kinds of test and production. To meet different
Cooling requirement. Could work with calorimeter, Refractometer, density tester, electrophoresis
Chamber, laser, Scanning Transmission Electron Microscope and vacuum coating equipment etc.
Character:
Could display temperature, pressure and water level
Professional designed Dynamic temperature control system, High accuracy of temperature control, Temperature fluctuation is small
Easy operation panel, control technical data is automatically remembered.
Full choice, with kinds of cooling power and pump pressure, could meet different instruments cooling requirement.
Core parts such as compressor, cooling fan, circulation pump all used imported qualified ones. Guarantee constant working without problem.
6. Circulating pressure is adjustable, pressure display gauge is made of stainless steel.
7. Standard stainless steel connect port. Could connect with kinds of different connector
And soft pipe
8. Have wheel easy to move.
Model |
LX- 60 0 |
LX- 10 00 |
LX- 20 00 |
LX- 30 00 (F) |
LX- 50 00 (A,F) |
Temp Range |
5--35 0 C |
Temp Accuracy |
±0.1 0 C |
Cooling Power |
60 0W |
100 0W |
2000W |
3000W |
50 00W |
Water Tank |
5 L |
8 L |
14 L |
40 L |
40 L / 80L(A) |
Circulation Pressure |
0.8bar |
0--4bar |
Circulation
Flow Rate(L/min) |
0--15 |
0--28 |
0--28 |
0--45 |
0--45 |
Connection Port Size |
1/2" NPT |
Power Supply |
220V, 50Hz, 5A |
Working Stype |
Continuously |
Equipment Weight |
39 kgs |
56 kgs |
71kgs |
80kgs
56+45
(F model) |
105 kgs
60+55(F model)
135(A model) |
Equipment Size
( W*D*H mm ) |
29*55*54 |
35*62*60 |
39*66*70 |
43*75*77
43*75*77+
80*27*53(F) |
47*86*80
43*75*77+88*30*60(F)
46*95*104(A) |
