| Prod Model: |
P883496Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
P883496y Battery Cell |
| Anode Material: |
Lifecopo4 |
| Certification: |
UL, CE, Rosh |
| Install Direction: |
Can Be Operated/Set in Any Position |
| Application: |
Electric Vehicle, Energy Storage |
| Warranty: |
More Than 2 Years |
| Environment: |
Non-Toxic |
| Security: |
No Fire, No Explosion, No Leakage |
| Lifespan: |
>2000 Times |
| OEM/ODM: |
Ok |
| Type: |
Lithium-Polymer Battery |
| Usage: |
Boat |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.7V |
Product Description
Product Description

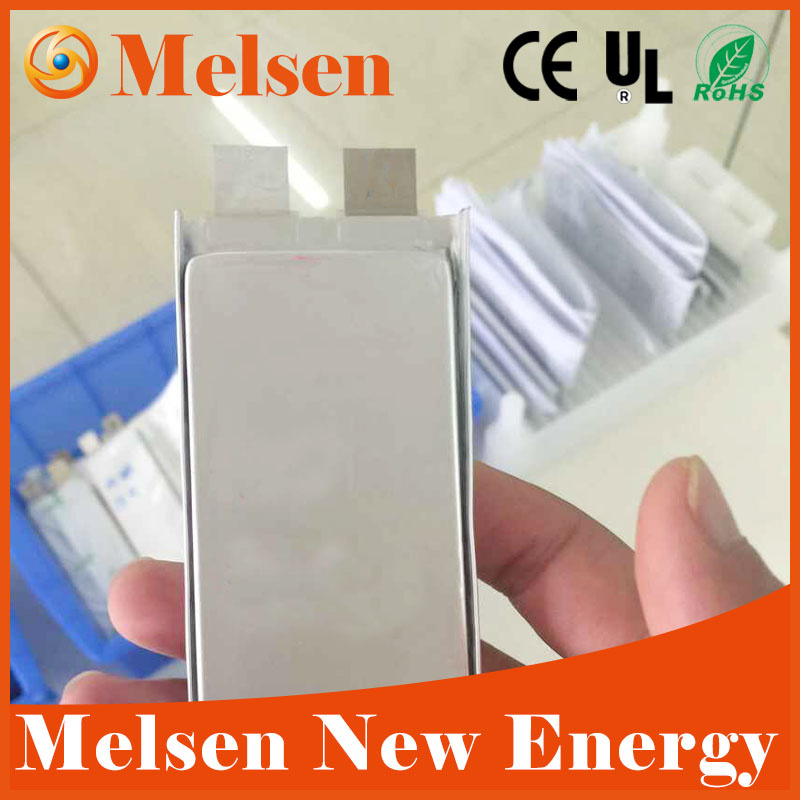

li-ion rechargeable battery cell for energy storage 3.7 V
1.Specification
| Model No. | Dimension | Max continuous
discharge current | Max pulse
discharge current | Max charge current | Charge voltage | Weight |
| P883496Y | 8.5*34*96.5mm | 132A | 200A | 4.4A | 4.2V | 57g |
2.Features:
Safety very well
Lighter weight
Larger capacity
Small Impendance
Discharge cycle characteristics are excellent.
There is no memory effect
Charge is very speed
2.Advantages:
(1) About warranty
we promise replacement within 24 months if any quality problems are found.
(2) About certificate
Our products passed the CE, ROHS, FCC certification. and we have KC, COC, ACMA test reports.
(3) About delivery time:
For sample, 1-3 work days only.
For formal order, 7-15 days after deposit.
For OEM, 10 -15 days after receiving your sample confirmation and payment.
(4) About price:
The most favorable price in the same quality products.
3.Other Products
| Model No. | Capacity | Discharge rate | Weight | Max continuous
discharge current | Max pulse
discharge current | Max charge current | Charge voltage |
|
| P723496K | 2000 | 20 | 50±3.0 | 40 | 60 | 4 | 4.2 |
| P903496K | 2550 | 20 | 62.0±3.0 | 51 | 80 | 5.1 | 4.2 |
| P803496M | 2200 | 25 | 54.0±3.0 | 55 | 100 | 4.4 | 4.2 |
| P783496K | 2200 | 20 | 54.0±3.0 | 44 | 60 | 4.4 | 4.2 |
| P863496S | 2200 | 40 | 57.0±3.0 | 88 | 120 | 4.4 | 4.2 |
| P853496N | 2200 | 30 | 57.0±3.0 | 66 | 100 | 4.4 | 4.2 |
| P853496R | 2200 | 35 | 57.0±3.0 | 77 | 120 | 4.4 | 4.2 |
| P863496R | 2200 | 35 | 57.0±3.0 | 77 | 120 | 4.4 | 4.2 |
| P853496W | 2150 | 50 | 57.0±3.0 | 108 | 150 | 4.3 | 4.2 |
| P883496Y | 2200 | 60 | 57.0±3.0 | 132 | 200 | 4.4 | 4.2 |
| P733496E | 2600 | 10 | 52.0±3.0 | 26 | 40 | 5.2 | 4.2 |
| P853496E | 3000 | 10 | 57.0±3.0 | 30 | 50 | 6 | 4.2 |
| P7043125K | 3200 | 20 | 76.0±3.0 | 64 | 100 | 6.4 | 4.2 |
| P1043125K | 5000 | 20 | 117.0±3.0 | 100 | 150 | 10 | 4.2 |
| P7243125M | 3200 | 25 | 81.0±3.0 | 80 | 120 | 6.4 | 4.2 |
| P8543125M | 3800 | 25 | 94.0±3.0 | 95 | 150 | 7.6 | 4.2 |
| P5643125N | 2400 | 30 | 63.0±3.0 | 72 | 100 | 4.8 | 4.2 |
| P5743125N | 2450 | 30 | 63.0±3.0 | 74 | 100 | 4.9 | 4.2 |
| P7443125N | 3200 | 30 | 82.0±3.0 | 96 | 160 | 6.4 | 4.2 |
| P8643125N | 3800 | 30 | 96.0±3.0 | 114 | 180 | 7.6 | 4.2 |
| P9043125N | 4000 | 30 | 101.0±3.0 | 120 | 200 | 8 | 4.2 |
| P1043125N | 4500 | 30 | 113.0±3.0 | 135 | 220 | 9 | 4.2 |
| P6343125S | 2650 | 40 | 69.0±3.0 | 106 | 180 | 5.3 | 4.2 |
| P7243125S | 3000 | 40 | 79.0±3.0 | 120 | 200 | 6 | 4.2 |
| P6043125W | 2400 | 50 | 62.0±3.0 | 120 | 200 | 4.8 | 4.2 |
| P8243125W | 3300 | 50 | 88.0±3.0 | 165 | 250 | 6.6 | 4.2 |
4.Contact Information
The best quality ,the best serive! Please feel free to contact me !
Name:Rebecca
Melsen New Energy is a subsidiary of Melsen Group. It is profession in researching, developing, producing and marking high quality Li-ion polymer battery. With its leading technology and excellent manufacturing leave, Melsen New Energy promoting the "Innovation Industrialization" process of the car energy field.
Melsen located in Melsen Industrial Park, Economical developing zone in Ningxiang, Hunan. With 50 million registered capital, 120, 000 national standard workshop area. The first annual production capacity is 0.25 billion kwh, 1 billion of the next annual.
There are 5 doctoral supervisors, more than 20 senior executives. Besides, there are 60 engineers who are responsible for reserching and developing lithium battery, battery management, electronic control. 200 technicists and managerial people have undergarduate diploma. And in our company, a state-of-the-art and standard factory has been built, which is equipped with completely automative production line. We passed ISO9001 quality management system certification, ISO14001 environment system certification, OHSA18001: 2007 occupational health and safety management system certification and TS16949 quality management system certification, etc.
Our product passed CE, RoHS, UL certification to ensuring the performance and security. At the same time with well-established after-sales service system.
The Company battery core product is soft package of power batteries. Positive electrode material divided into ternary and lithium iron phosphate. PACK products mainly for car emergency starting, motorcycle-car start, hybrid electric vehicles, electric vehicles and communication energy storage.
Our Company has a high degree of automation through introducing domestic and foreign advanced production equipment to reduces the influence of the human factor and effectively improves product consistency; We strengthen the production process quality control online by increasing the process on-line detecting instrument and improve the speed of the flow of products, control process environment and improve product performance by optimizing the production process.
Company established a regular exchange mechanism and laboratory with Leading Universities.
Looking into the future, our company will continuously adhere to the quality policy of "Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs". Besides, our company keeps self-initiative and strives for excellence to create more values for clients through top-notch technologies, first-class products, outstanding brand and the best services. Scientific innovation is the basic of an enterprise and to meet customers' needs is our ultimate goal.
The company takes science and technology as the first productivity and makes a full range of strict control of product safety. At the same time, the enterprise make excellent management, advanced network business model as a key output and development way. Our company also shoulders the social responsibility and its mission to build a new energy colossus, ultimately being international.
Melsen jump starter, the advocate of green energy, is the leader of environmentally friendly rechargeable battery with high quality! Melsen jump starter is your Best Choice!
Melsen New Energy starts a new world!
Melsen power lithium battery is the only battery that can be used to jump start vehicle in anywhere all over the world.
