Product Description

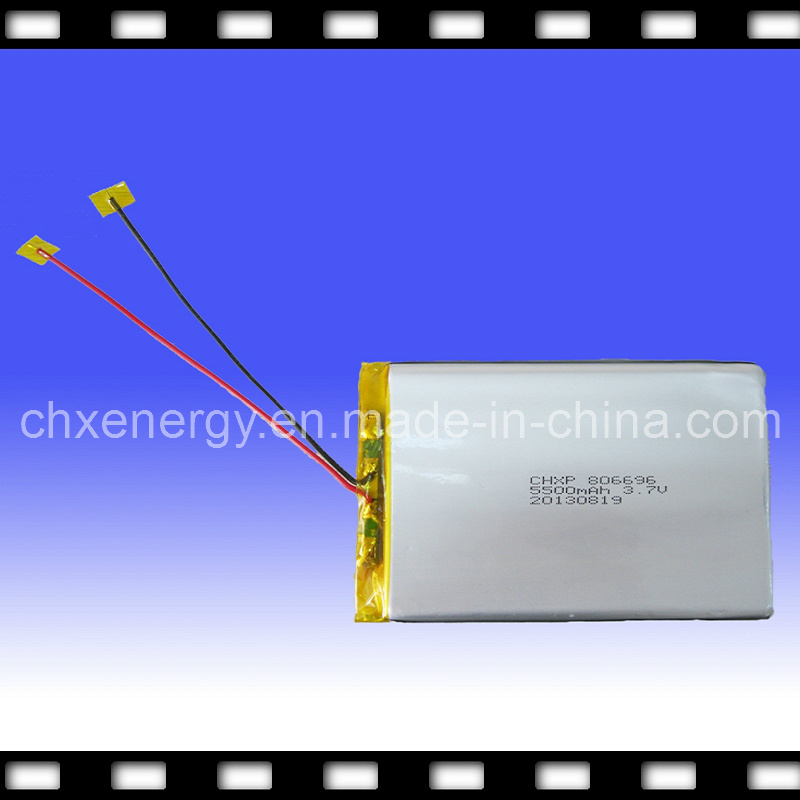

Rechargeable Lithium Polymer Battery Pack for Camcorde/Camera 3.7V 4500mAh (806696)
OEM/ODM
Long Cycle Life
Advanced Battery Management System
Nominal Capacity: 4500mAh( for this model the Max Capacity can be made to 5500mAh)
Nominal Voltage: 3.7V
Overcharge Protection Voltage: 4.25V
Internal Impedance: ≤ 45mΩ
Max. Charge Current: 0.5C
Max. Discharge Current: 1C
Discharge Cut-off Voltage: 3V
Cycle Life: ≥ 300 times
Weight: Approx. 85g
Dimension with PCM: 8mm X66 mm X 98 mm
Application Range:
For Camcorde, power bank, MID, mobile phone, bluetooth, POS terminal, GPS battery, electric toy, E-bike, electric tools, RC toy (cars and airplanes), robots, cameras, DVD external battery etc.
Remarks:
1. The battery could be customized, and with PCB/PCM/BMS or not according to clients requirements.
2. When working with Li-ion/LiPo cells, they are very sensitive to charging characteristics and may explode if mis-handled.
3. User should have enough knowledge on Lithium rechargeable batteries in charging, discharging and assembly before use.
4. We are not responsible for any damage caused by misuse or mishandling of these Li-polymer batteries.
Warranty Period:
1 year
Below is part of the battery cell list for your reference.
Model |
Capacity(mAh) |
Dimension(mm) |
Impedance |
Nominal Valtage(V) |
Standard Charge |
Fast Charge |
(mΩ,Max) |
Current(mA) |
Time(h) |
Current(mA) |
Time(h) |
102120 |
350 |
10.0 ±0.2× 21.0 ±0.5× 20.0 ±0.5 |
150 |
3.7 |
175 |
4 |
350 |
2 |
102535 |
800 |
10.0 ±0.2× 25.0 ±0.5× 35.0 ±0.5 |
80 |
3.7 |
400 |
4 |
800 |
2 |
103040 |
1100 |
10.0 ±0.2× 30.0 ±0.5× 40.0 ±0.5 |
25 |
3.7 |
550 |
4 |
1100 |
2 |
103450 |
1800 |
10.0 ±0.2× 34.0 ±0.5× 50.0 ±0.5 |
50 |
3.7 |
900 |
4 |
1800 |
2 |
103483 |
3500 |
10.0 ±0.2× 34.0 ±0.5× 83.0 ±0.5 |
40 |
3.7 |
1750 |
4 |
3500 |
2 |
103636 |
1200 |
10.0 ±0.2× 36.0 ±0.5× 36.0 ±0.5 |
60 |
3.7 |
600 |
4 |
1200 |
2 |
104050 |
2400 |
10.0 ±0.2× 40.0 ±0.5× 50.0 ±0.5 |
50 |
3.7 |
1200 |
4 |
2400 |
2 |
104566 |
3300 |
10.0 ±0.2× 46.0 ±0.5× 66.5 ±0.5 |
45 |
3.7 |
1650 |
4 |
3300 |
2 |
105068 |
4000 |
10.5 ±0.2× 50.0 ±0.5× 68.0 ±0.5 |
40 |
3.7 |
2000 |
4 |
4000 |
2 |
105575 |
5000 |
10.0 ±0.2× 55.0 ±0.5× 75.0 ±0.5 |
35 |
3.7 |
2500 |
4 |
5000 |
2 |
105575 |
5200 |
10.0 ±0.2× 55.0 ±0.5× 75.0 ±0.5 |
35 |
3.7 |
2600 |
4 |
5200 |
2 |
105575 |
5010 |
10.0 ±0.2× 55.0 ±0.5× 76.0 ±0.5 |
40 |
3.7 |
2505 |
4 |
5010 |
2 |
106696 |
8000 |
10.0 ±0.2× 66.0 ±0.5× 96.0 ±0.5 |
25 |
3.7 |
4000 |
4 |
8000 |
2 |
112560 |
1700 |
11.0 ±0.2× 25.0 ±0.5× 60.0 ±0.5 |
80 |
3.7 |
850 |
4 |
1700 |
2 |
112739 |
1200 |
11.0 ±0.2× 27.0 ±0.5× 39.0 ±0.5 |
70 |
3.7 |
600 |
4 |
1200 |
2 |
113759 |
2600 |
11.0 ±0.2× 37.0 ±0.5× 59.0 ±0.5 |
45 |
3.7 |
1300 |
4 |
2600 |
2 |
114698 |
5800 |
11.0 ±0.2× 46.0 ±0.5× 98.5 ±0.5 |
40 |
3.7 |
2900 |
4 |
5800 |
2 |
115068 |
4500 |
11.0±0.2× 50.0 ±0.5× 68.5 ±0.5 |
40 |
3.7 |
2250 |
4 |
4500 |
2 |
116168 |
5000 |
11.0 ±0.2× 61.0 ±0.5× 68.0 ±0.5 |
35 |
3.7 |
2500 |
4 |
5000 |
2 |
116168 |
5200 |
11.0 ±0.2× 61.0 ±0.5× 68.0 ±0.5 |
30 |
3.7 |
2600 |
4 |
5200 |
2 |
126368 |
6200 |
12.2 ±0.2× 63.0 ±0.5× 68.0 ±0.5 |
30 |
3.7 |
3100 |
4 |
6200 |
2 |
203248 |
215 |
2.0 ±0.2× 32.0 ±0.5× 48.0 ±0.5 |
200 |
3.7 |
107.5 |
4 |
215 |
2 |
254086 |
930 |
2.5 ±0.2× 40.0 ±0.5× 86.0 ±0.5 |
80 |
3.7 |
465 |
4 |
930 |
2 |
301030 |
60 |
3.0 ±0.2× 10.0 ±0.5× 30.0 ±0.5 |
450 |
3.7 |
30 |
4 |
60 |
2 |
302030 |
120 |
3.0 ±0.2× 20.0 ±0.5× 30.0 ±0.5 |
400 |
3.7 |
60 |
4 |
120 |
2 |
303443 |
400 |
3.0 ±0.2× 34.0 ±0.5× 43.0 ±0.5 |
120 |
3.7 |
200 |
4 |
400 |
2 |
304050 |
500 |
2.7 ±0.2× 40.0 ±0.5× 50.0 ±0.5 |
100 |
3.7 |
250 |
4 |
500 |
2 |
305080 |
1200 |
3.0 ±0.2× 50.0 ±0.5× 80.0 ±0.5 |
70 |
3.7 |
600 |
4 |
1200 |
2 |
305553 |
850 |
3.0 ±0.2× 55.0 ±0.5× 53.0 ±0.5 |
80 |
3.7 |
425 |
4 |
850 |
2 |
306281 |
1450 |
3.0 ±0.2× 62.0 ±0.5× 81.0 ±0.5 |
60 |
3.7 |
725 |
4 |
1450 |
2 |
323840 |
450 |
3.2 ±0.2× 38.0 ±0.5× 40.0 ±0.5 |
100 |
3.7 |
225 |
4 |
450 |
2 |
324272 |
900 |
3.2 ±0.2× 42.0 ±0.5× 72.0 ±0.5 |
80 |
3.7 |
450 |
4 |
900 |
2 |
324555 |
750 |
3.2 ±0.2× 45.0 ±0.5× 55.0 ±0.5 |
80 |
3.7 |
375 |
4 |
750 |
2 |
351220 |
50 |
3.5 ±0.2× 12.0 ±0.5×20.0 ±0.5 |
350 |
3.7 |
25 |
9 |
50 |
7 |
351220 |
50 |
3.5 ±0.2× 12.0 ±0.5× 20.0 ±0.5 |
280 |
3.7 |
25 |
4 |
50 |
2 |
352030 |
140 |
3.5 ±0.2× 20.0 ±0.5× 30.0 ±0.5 |
350 |
3.7 |
70 |
4 |
140 |
2 |
355068 |
1800 |
3.5 ±0.2× 50.0 ±0.5× 68.0 ±0.5 |
50 |
3.7 |
900 |
4 |
1800 |
2 |
356585 |
2000 |
3.5 ±0.2× 65.0 ±0.5× 85.0 ±0.5 |
50 |
3.7 |
1000 |
4 |
2000 |
2 |
365080 |
1700 |
3.6 ±0.2× 50.0 ±0.5× 80.0 ±0.6 |
70 |
3.7 |
850 |
5 |
1700 |
3 |
372447 |
350 |
3.7 ±0.2× 24.0 ±0.5× 47.0 ±0.5 |
150 |
3.7 |
175 |
4 |
350 |
2 |
382030 |
180 |
3.8 ±0.2× 20.0 ±0.5× 30.0 ±0.5 |
250 |
3.7 |
90 |
4 |
180 |
2 |
384045 |
700 |
3.8 ±0.2× 39.5 ±0.5× 45.0 ±0.5 |
80 |
3.7 |
350 |
4 |
700 |
2 |
384045 |
680 |
3.8 ±0.2× 40.0 ±0.5× 45.0 ±0.5 |
80 |
3.7 |
340 |
4 |
680 |
2 |
401220 |
70 |
4.0 ±0.2× 11.5 ±0.5× 21.5 ±0.5 |
400 |
3.7 |
35 |
4 |
70 |
2 |
401233 |
130 |
4.0 ±0.2× 12.0 ±0.5× 33.0 ±0.5 |
350 |
3.7 |
65 |
4 |
130 |
2 |
401235 |
120 |
4.0 ±0.2× 12.0 ±0.5× 35.0 ±0.5 |
400 |
3.7 |
60 |
4 |
120 |
2 |
401730 |
170 |
4.0 ±0.2× 17.0 ±0.5× 30.0 ±0.5 |
250 |
3.7 |
85 |
4 |
170 |
2 |
401930 |
170 |
4.0 ±0.2× 19.0 ±0.5× 30.0 ±0.5 |
120 |
3.7 |
85 |
4 |
170 |
2 |
402030 |
200 |
4.0 ±0.2× 20.0 ±0.5× 30.0 ±0.5 |
250 |
3.7 |
100 |
4 |
200 |
2 |
402040 |
300 |
4.0 ±0.2× 20.0 ±0.5× 40.0 ±0.5 |
180 |
3.7 |
150 |
4 |
300 |
2 |
402535 |
320 |
4.0 ±0.2× 25.0 ±0.5× 35.0 ±0.5 |
180 |
3.7 |
160 |
4 |
320 |
2 |
402535 |
320 |
4.0 ±0.2× 25.0 ±0.5×35.0 ±0.5 |
120 |
3.7 |
160 |
4 |
320 |
2 |
402873 |
900 |
4.0 ±0.2× 28.0 ±0.5× 73.0 ±0.5 |
80 |
3.7 |
450 |
4 |
900 |
2 |
403040 |
430 |
4.0 ±0.2× 30.0 ±0.5× 40.0 ±0.5 |
120 |
3.7 |
215 |
4 |
430 |
2 |
403450 |
650 |
4.0 ±0.2× 34.0 ±0.5× 50.0 ±0.5 |
80 |
3.7 |
325 |
4 |
650 |
2 |
403465 |
1100 |
4.0 ±0.2× 34.0 ±0.5× 65.0 ±0.5 |
70 |
3.7 |
550 |
4 |
1100 |
2 |
403759 |
900 |
4.0 ±0.2× 37.0 ±0.5× 59.0 ±0.5 |
80 |
3.7 |
450 |
4 |
900 |
2 |
403765 |
1000 |
4.0 ±0.2× 37.0 ±0.5× 65.0 ±0.5 |
80 |
3.7 |
500 |
4 |
1000 |
2 |
405060 |
1300 |
4.0 ±0.2× 50.0 ±0.5× 60.0 ±0.5 |
60 |
3.7 |
650 |
4 |
1300 |
2 |
405075 |
1600 |
4.0 ±0.2× 40.0 ±0.5× 75.0 ±0.5 |
60 |
3.7 |
800 |
4 |
1600 |
2 |
405080 |
1700 |
4.0 ±0.2× 50.0 ±0.5× 80.0 ±0.5 |
60 |
3.7 |
850 |
4 |
1700 |
2 |
405080 |
1700 |
4.0 ±0.2× 50.0 ±0.5× 80.0 ±0.5 |
60 |
3.7 |
850 |
4 |
1700 |
2 |
405085 |
2000 |
4.0 ±0.2× 50.0 ±0.5× 85.0 ±0.5 |
50 |
3.7 |
1000 |
4 |
2000 |
2 |
405085 |
1900 |
4.0 ±0.2× 50.0 ±0.5× 86.0 ±0.5 |
60 |
3.7 |
950 |
4 |
1900 |
2 |
407292 |
2900 |
4.0 ±0.2×71.5 ±0.5× 91.5 ±0.5 |
50 |
3.7 |
1450 |
4 |
2900 |
2 |
413443 |
600 |
4.1 ±0.2× 34.0 ±0.5× 43.0 ±0.5 |
100 |
3.7 |
300 |
4 |
600 |
2 |
422334 |
280 |
4.2 ±0.2× 23.0 ±0.5× 34.0 ±0.5 |
250 |
3.7 |
140 |
4 |
280 |
2 |
422562 |
550 |
4.2 ±0.2×25.0 ±0.5× 62.0 ±0.5 |
80 |
3.7 |
275 |
4 |
550 |
2 |
Dongguan CHX Electronic Technology Co., Ltd. ("CHX Electronic") is a high-tech energy solution provider for li -polymer battery customers all over the world. It's located in the Chinese economic forefront city Dongguan, where Shenzhen, Hongkong in its south and have Guangzhou in the north; Convenient traffic and excellent geographical location set great base for company's booming.
In our ISO 9001: 2008-certified factories, which span a total of 20, 000 m2, we can turn out over 20, 000, 000Ah annual production capacity, our company is principally specialized in the R&D, manufacture, and sales of lithium ion / lithium polymer rechargeable batteries(cells) and battery packs which are widely used in portable DVD players, torch, laptop computers, mobile phone, MP3/MP4 players, LED flashlight, blue-tooth devices, GPS, PDA, POS machine, RC model airplanes, electric toys, electric tools, electric cigarettes, electric cars and other electric products. The same time, company also focus on product quality and environmental protection, and establish a strict, effective, stable quality and environmental management system. Our products comply with RoHS, ISO 9001, ISO 14001, UL, CE certificates. Under the principle of "Integrity, Service, CHasing Xeon", company designs and manufactures the products based on customers' ideas or requirements. More than 80% of our products are sold well all over the world, mainly in Japan, Korean, America, Europe, Taiwan and so on, which has won high reputation in both quality and service at the local.
We hope to develop firm relationship and build long term of good cooperation with all our partners, to achieve win-win finally.
