| Prod Model: |
0020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Reverse Image |
| Alarming Distance: |
2.5-0.35m |
| Probe Diameter: |
18.8mm |
| Interface: |
S-Video |
| Shell Material: |
ABS Plastic |
| Function: |
Night Vision |
| Chip: |
CCD |
| Definition: |
420tvl |
| Probe Number: |
1/2/3/4 |
Product Description
Monitor Specification:
- Screen size: 7-inch panel (diagonal length)
- Input: 2-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees .
(down) 15 degrees
Camera Specifications:
- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy

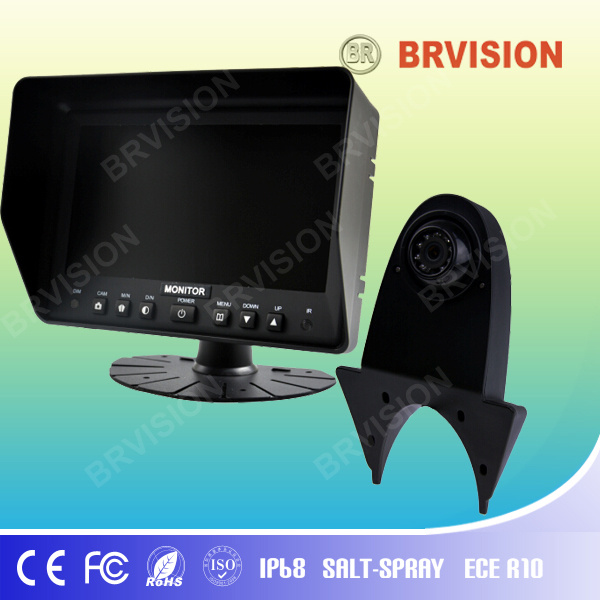

This 7" TFT Digital Color button monitor, with 2CH input, which is capable of connecting and viewing simultaneously up to four cameras. 9 languages selectable for user operation With multiple viewing options, you can choose how many cameras you would like to view and in which format.| Item No. | BR-TM7001 |
| Monitor | 7" inch TFT monitor 2CH input |
| Image | 16:9 |
| Color system | PAL/NTSC(selectable) |
| Resolution | WSVGA 1024 |
| horizontal | 600 vertical pixel |
| Power requirement | 12/24V DC |
| Language | 9 languages for selection |
| Power consumption | 5W |
| Dimension | 261 (L) x 177 (W) x 70 (D) |
| Operating temperature | -30° to +70° |
| Storage temperature | -40° to +80 |
| Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
