| Prod Model: |
NR008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
92*65*26mm |
| Working Voltage: |
DC:6.3~40V |
| Working Temperaturer: |
-40~85°c |
| GSM Module: |
SIM900 |
| Frequency: |
850/900/1800/1900MHz |
| GPS Module: |
Sirf Star Iii |
| Warranty: |
24-Month |
| Free Tracking Service: |
12-Month |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
Main features:
1. Real-time Positioning & Tracking
2. Over Speed Alert
3. SOS Panic button
4. Geofence Alert
5. Voice Monitoring(Listen in)
6. Remote cut-off engine
7. Inbuilt Backup Battery, Unauthorized Dismantle Alert
8. Compatible with the original anti-theft alarm
9. GPS & LBS(location based service), Double positioning
10. Temperature Sensor(optional)
11. Track by demand, by time/distance interval
12.24/7 Client Software Access
Why choose us?
1) Now Noran is becoming the leading manufacturer of Vehicle GPS Trackers in China. Thanks to our staffs hardworking and sincere service for more than 5 years, Noran has been recognized as A Reliable Partner for GPS Tracker in global market.
2) R&D Team in Noran regularly study and research for new & different types of GPS Tracker for different purposes.
3) Due to Noran advanced technology, strict quality control management & competitive price, we gain orders from Government Purchasing in both domestic market and overseas market.
4) Noran engineers guarantees you quicker & better technical support.
Delivery
1) Usually we deliver goods by DHL, FedEx or EMS. You can also appoint other ways for delivery.
2) Delivery time: 1-3 working days after payment be confirmed. Goods take normally 3-5days to reach you.
Package
1) Color box, 1piece/ box, 50PCS/carton. Or as per your request.
Payment: T/T, Western Union, Alipay & L/C at sight are all available for your option.
Special technical service:
1, Help you setup your own GPS tracking system for free
2, Free server service period: 12-month
3, Warranty: 24-month
4, We accept OEM and customised orders. (logo, functions, language)
size |
92*65*26mm |
Working Voltage |
DC: 6.3~40V |
Input Fuse |
2A |
Working Temperature |
-40~85° C |
Humidity |
10% to 90% |
CPU |
TI: MSP430F149(16MHz) |
GSM Module |
GSM Module: SIM900
Band: 850/900/1800/1900MHz
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm± 2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤ 2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ± 0.1ppm
RMS Deviation: ≤ 5deg |
GPS Module
|
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s |
Input I/O |
5 I/O Port
1 port use to check the engine ( ACC check)
1 port use to SOS
Three ports use to Extend |
Output I/O |
1 port (Control car engine) |
Microphone |
3.5mm Single track |
earphone |
3.5mm |
Current |
Standby Current: 16mA
working Current: 60~150mA
Charging current: Max< 500mA |
Battery |
Lithium battery : 400mA( working time is about 3.5 hours ) |
Accessories |

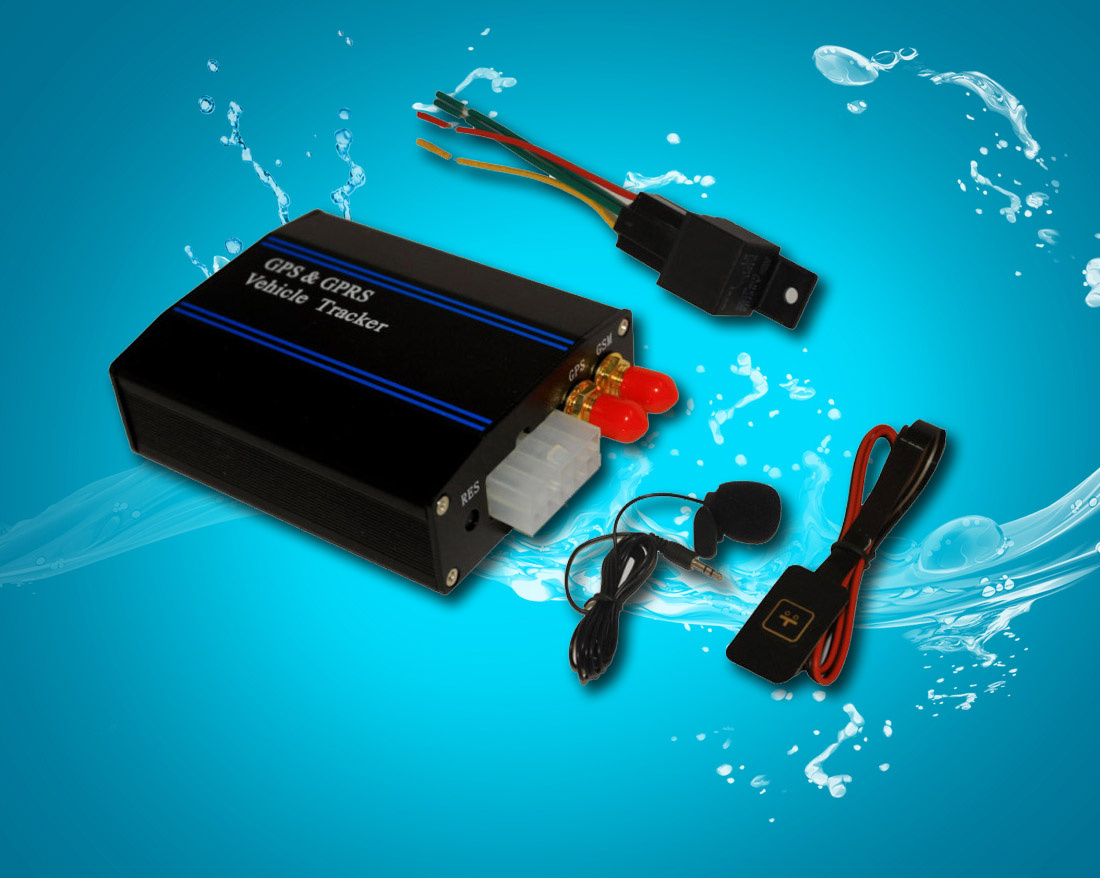

Device, Connecting cable , GPS antenna , GSM antenna, Engine controller, SOS button |
