| Prod Model: |
HW-RE12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12 Inch |
| Structure: |
Closed Enclosure |
| SNR: |
91-100dB |
| Speaker Material: |
Wood |
| Amplification Type: |
Active |
| Usage: |
Stage/DJ |

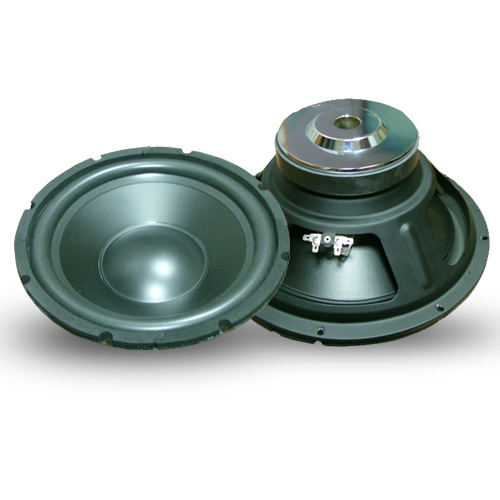

Product Description
4 Layer 2" Copper
Stamped Steel Basket
FEA Optimized Motor Structure
Rubber Surround
Reinforced Injection Dust Cup
Strong Injection Cone (I think is PP)
High Roll Spyder
Long Excursion tall T-Yoke design
RE SERIES
Product Dimension RE SERIES
T/S Parameters
RE-8"
Mounting Depth - 4"
Mounting Hole Diameter - 7.125"
Overall Diameter - 8.25"
Bolt Hole Circle - 7.75"
Motor Width - 4.875"
Motor Depth - 1.5"
Basket Depth - 2.5"
Displacement - 0.07 cu. Ft.
Weight - 6 lbs.
RE-10"
Mounting Depth - 5"
Mounting Hole Diameter - 9.125"
Overall Diameter - 10.125"
Bolt Hole Circle - 9.75"
Motor Width - 4.875"
Motor Depth - 1.5"
Basket Depth - 3.5"
Displacement - 0.09 cu. Ft.
Weight - 6.5 lbs.
RE-12"
Mounting Depth - 5.5"
Mounting Hole Diameter - 10.875"
Overall Diameter - 12.25"
Bolt Hole Circle - 11.75"
Motor Width - 4.875"
Motor Depth - 1.5"
Basket Depth - 4"
Displacement - 0.10 cu. Ft.
Weight - 7 lbs. 8"
Electrical Q Value -Qes: 0.38
Mechanical Q Value -Qms: 4.21
Total Speaker Q Value -Qts: 0.34
Free Air Resonance -Fs: 22.8 Hz
Equivalent Compliance -VAS: 27.1 liters
One-Way, Linear Excursion -Xmax: 12 mm
Efficiency -SPL 1W/1m: 81.2 dB SPL
Effective Piston Area -SD: 195 cm^2
DC Resistance -Re: 3.2 ohm
Nominal Impedance -Znom: Dual 4 ohm
Thermal Power Handling -PE: 175 W
Force Factor -Bl: 15.4
10"
Electrical Q Value -Qes: 0.39
Mechanical Q Value -Qms: 4.37
Total Speaker Q Value -Qts: 0.36
Free Air Resonance -Fs: 21.5 Hz
Equivalent Compliance -VAS: 75.6 liters
One-Way, Linear Excursion -Xmax: 12 mm
Efficiency -SPL 1W/1m: 84.7 dB SPL
Effective Piston Area -SD: 322 cm^2
DC Resistance -Re: 3.2 ohm
Nominal Impedance -Znom: Dual 4 ohm
Thermal Power Handling -PE: 175 W
Force Factor -Bl: 15.4
12"
Electrical Q Value -Qes: 0.42
Mechanical Q Value -Qms: 4.27
Total Speaker Q Value -Qts: 0.38
Free Air Resonance -Fs: 20.0 Hz
Equivalent Compliance -VAS: 182 liters
One-Way, Linear Excursion -Xmax: 12 mm
Efficiency -SPL 1W/1m: 87.3 dB SPL
Effective Piston Area -SD: 500 cm^2
DC Resistance -Re: 3.2 ohm
Nominal Impedance -Znom: Dual 4 ohm
Thermal Power Handling -PE: 175 W
Force Factor -Bl: 15.4
RE SERIES Audio Woofer has been presented above, want more similar products, please click RE AUDIO, Woofers, audio subwoofers.
