| Prod Model: |
SAT8028A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCM Od: |
50*69.2*2.3mm |
| Drive IC: |
Ili9341V |
| Brightness: |
300nits with 4PCS LED Backlight |
| Interface: |
MCU Interface with 40pins |
| Operation Temperature: |
-20-70 Degree |
| Resolution: |
320*240, Qvga |
| LCD A.a: |
43.2*57.6 |
| Screen Size: |
< 3" |
| Type: |
TFT-LCD |
| Function: |
Touch Type |
| Touch Screen Type: |
Resistance Screen |
| Compatible Brand: |
Any Brands |
Product Description

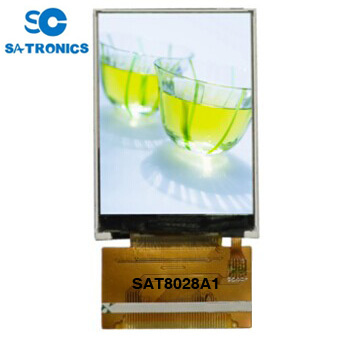

Model NO:SAT8028A
LCM OD: 50*69.2*2.3mm
A.A: 43.2*57.6
Driver IC:ILI9341V
Interface:MCU
FPC Pins:40pins
Brightness:300nits,with 4pcs LED backlight.
With TP:option
Operation temperature:-20-70
Sotrage temperature:-30-80
