| Prod Model: |
TP5 |
| Module Size: |
320*160mm |
| Max Consumption: |
480W |
| Usage: |
Outdoor |
| Screen Dimension: |
960mm*320mm |
| Module Input Voltage: |
5V |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
3-in-1 1r1g1b |
| Average Power Consumption: |
150W |
| Pixel Density: |
40000 DOT/M2 |
Product Description

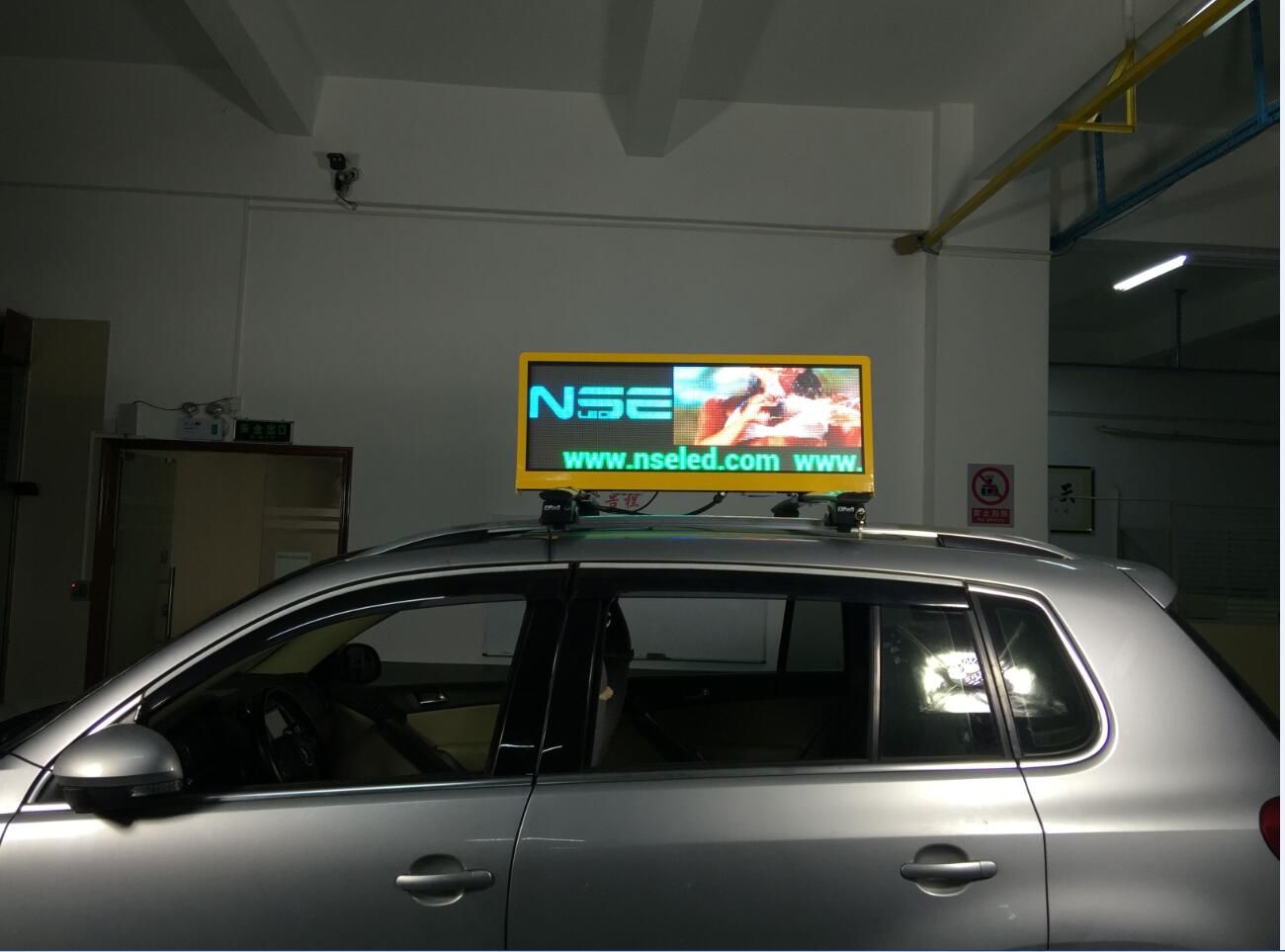

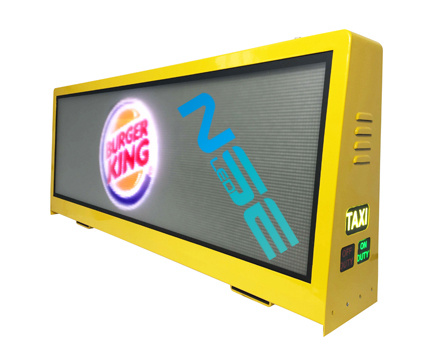

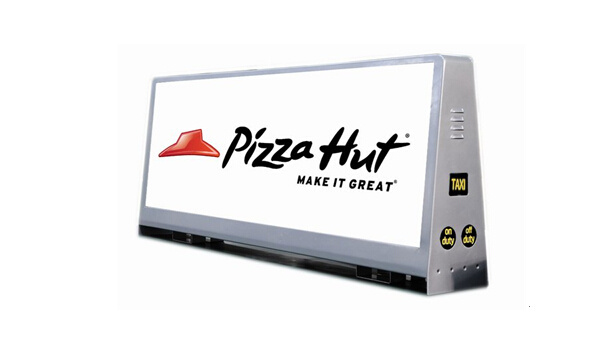

Quality Taxi Led Display from China LED Suppliers
Features
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Low power consumption.9--36V DC input.Vehicle battery is enough to make the taxi top LED sign work.
3. High brightness. Using P5 SMD LED display module, luminance reach 5500nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.
4. High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.
5. It can play a variety of media resources such as text, photos, animation, video and so on.
6. The controlling and editing has never been as easy as now. Through 3G or 4G network, no matter where you are,as long as your device can access
the Internet and open your browser, you can easily control the taxi top LED sign.
7. With GPS modules,the car can be tracked and located.
8. High quality acrylic cover keep the surface of the taxi top LED sign always clean.
| 1 | Pixel Pitch | 5mm |
| 2 | Pixel Configuration | 3-in-1 1R1G1B |
| 3 | Pixel Density | 40000 dot/ m2 |
| 4 | Module Size | 320*160mm |
| 5 | Module Resolution | 64 *32dot |
| 6 | Module input Voltage | 5V |
| 7 | Max Consumption | 480W |
| 8 | Average Consumption | 150W |
| 9 | White Balance Color | 6000-15000K |
| 10 | Frame Size | L:1100mm H:410mm,W:175mm(bottom),90mm(top) |
| 11 | Net Screen Size | 960mm*320mm |
| 12 | Screen Resolution | 192*64 dot |
| 13 | Brightness | >5500 cd/ m2 |
| 14 | Contrast Contrast | >8000:1 |
| 15 | Horizontal View Angle | 120° |
| 16 | Vertical View Angle | 120° |
| 17 | Optimal Viewing Distance | 5m |
| 18 | Defects Rate | ≤3/10000 |
| 19 | Color | 167Million |
| 20 | Brightness Control | Red,Green and Blue 256 Grade/Each |
| 21 | Brightness Control | 64continuously adjustable, automatic / manual |
| 22 | Repetition Frequency | >60-85Hz |
| 23 | Scan Frequency | >1920Hz |
| 24 | Scan Mode | 1/8 scan |
| 25 | Driving Method | Constant current |
| 26 | Power supply | DC 9--36V to DC 5V |
| 27 | Life Span | 100,000 hours |
| 28 | Brightness Change Rate | <5% |
| 29 | Color Temperature | 3500~12000 (White Field:6500-12000) |
| 30 | White Balance Coordinate | Around X:Y=0.27:0.29 |
| 31 | Control Mode | 3G/4G/Enthnet |
| 32 | GPS | Yes |
| 33 | Screen Surface Flatness | <1mm |
| 34 | Temperature Operating | -30°~+60° |
| 35 | Working Humidity | 10%-95%RH |
| 36 | Screen Protection | Waterproof, rust-proof, dust-proof |
| 37 | Power Protection | With over-temperature, over-current, over-voltage protection |
| 38 | Screen Weight | 18 kg |
Application
Our Services
1. All the price above is based on EXW
2. Quotation Valid : 30 days
3. Payment term: 50% T/T in Advance , balance before shipment.
4, Standard package: Honeybox
5. Guarantee & Service:
* 2 years quality guarantee, and we will provide free parts for replacement if any problem due to the LED panel or part quality under normal use in this period.
* According to the matter of fact, we'll charge a certain fee for installing.
* We should to charge for the parts at a productive cost when the warranty expires.
6. Lead time: 20 working days after deposit.
7. Payment item are different according exactly inquiry.
Our Advantages:
1. Automatic production. More than 90% production process is automatic.
2. Quality control. We can control the quality of the original materials by ourselves, such as we can do the encapsulation for LEDs by ourselves.
3. The most competitive price. Because most of the original material we can produce by ourselves. So the cost for us is lower too.
4. The most professional technical support. We have been in this industry almost 10 years, we have a lot of experience to resolve all kinds of problems.
5. The best customer service. We can offer you the best customer service both before and after sales. You can reach us 24 hours every day and 7 days a week.
6. Two years warranty. We are confident about our products quality, so we have no problem at all to offer customers two years warranty.
To be known as a leading portable sign manufacturer, NSE has got rapid-growth in the market in the past 5 years. Being an ISO9001 Certified and Government-nominated "Hi-Tech Enterprise", we are continuously investing in the Research and Development of portable and other creative LED display products. Currently, we have few patents registered in China.
Now our LED display products have been sold to more than 60 countries and areas, such as South Africa, Australia, USA, Germany, Spain, Poland, Russia, Australia, Chile, Brazil, Paraguay, Mexico, Thailand, Malaysia, Indonesia, Vietnam, Saudi Arabia, Iran, and so on. We are also supplying ODM business to two leading VMS products suppliers in Australia and Brazil.
We believe that quality and customers' need can be achieved and satisfied only with high & whole-hearted dedication, and persistence in pursuing high performance of the products. With strict quality assurance system, we are receiving less than 0.01% compliant of noticeable defects from our products. So far, Our products had passed various certificates, such as UL, CE, FCC, ETL, CCC, RoHS ec.
"Create Value, Display Infinity", NSE will continue to break new ground on the basis of past achievements, to strive to top-class LED products supplier.
