| Prod Model: |
QS-2580 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
190mm Magnet with Aluminum Frame |
| Hf Component: |
170mm Magnet |
| Size Options: |
10", 12", 15" |
| Installing: |
Stand |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Imported multilayer birch plywood;
b. High-quality durable polyesterimide paint;
c. Deep and strong bass, mellow and full alto, and bright treble.
1. Description:

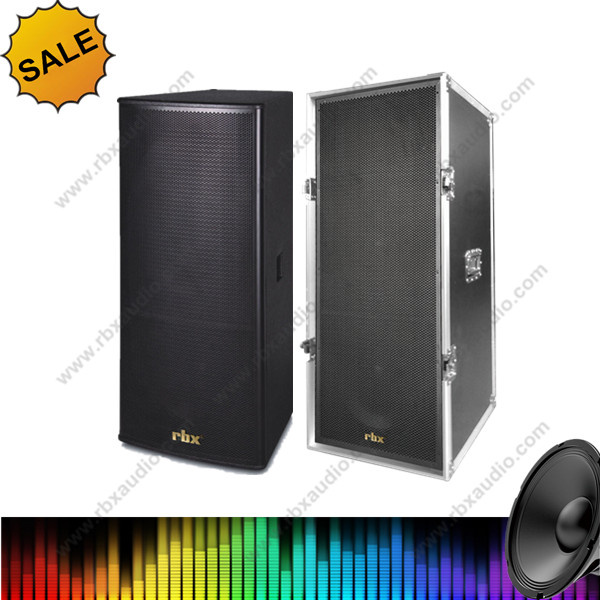

QS-2580 is a three-way loudspeaker, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
QS-2580 is equipped with 2pcs of 15" LF precise driver and a 2" HF precise compression driver. When you use it, you will feel a deep and strong bass, a mellow and full alto, and bright and penetrating treble.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar, small outdoor perform and etc. It can be combined with our sub-woof loudspeaker system.
3. Technical data:
| Model | QS-2580 professional Stage Live concert audio speaker |
| Drivers | LF: 2×15"voice-coil: 3" |
| HF: 1×2"voice-coil: 3" |
| Frequency(±3dB) | 45HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 99dB |
| Maximum SPL | 129dB Continuous/138dB Peak |
| Nominal Impedance | 4 Ohms |
| Input power | Rate: 800W/Peak: 3200W |
| Recommend AMP | 600W to 800W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 1240 × 540 × 540mm (H × W × D) |
| Master carton | 1300 × 600 × 600 (H × W × D) |
| Net Weight | 57.5Kg |
| Gross Weight | 63.5Kg |
4. Construction:
| Physical | Trapezium |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | / |
| Pole Mount | / |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
