| Prod Model: |
QS-1050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| Size Options: |
10", 12", 15" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Imported multilayer birch plywood;
b. High-quality durable polyesterimide paint;
c. Deep and strong bass, a mellow and full alto, and a clear and delicate treble.
1. Description:

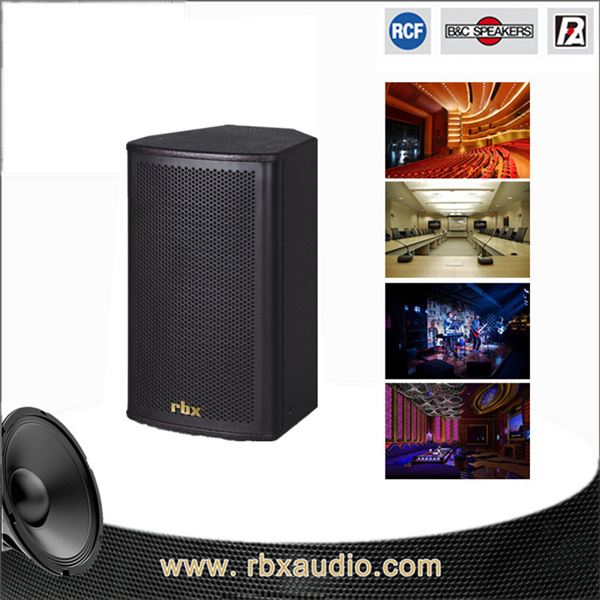

QS-1050 is a two-way full range loudspeaker, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
QS-1050 is equipped with a 10" LF precise driver and a 2" HF precise compression driver. When you use it, you will feel a deep and strong bass, a mellow and full alto, and a clear and delicate treble.
2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar and etc. It can be combined with our sub-woof loudspeaker system. Also, it can be used as rear auxiliary loudspeaker system.
3. Technical data:
| Model | QS-1050 single 10 250W jbl powered speaker |
| Drivers | LF: 1×10"voice-coil: 2.5" |
| HF: 1×1"voice-coil: 3.5" |
| Frequency(±3dB) | 65HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 99dB |
| Maximum SPL | 121dB Continuous/127dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 250W/Peak: 1000W |
| Recommend AMP | 350W to 600W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 530 × 300 × 300mm (H × W × D) |
| Master carton | 590 × 360 × 360 (H × W × D) |
| Net Weight | 14Kg |
| Gross Weight | 16.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (16 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
