| Prod Model: |
QAL CG 200L5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Colorful Steel |
| Size: |
20tubes |
| Package: |
Cartons with Foam |
| Color: |
Blue/ White |
| Angle: |
27'-45' |
| Capacity: |
200L or Optional |
| Pre-Heated Solar Water Heater: |
Optional |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Bracket |
| Certification: |
CCC |
Product Description
Specifications
Soalr water heater system
.Competitive price and good quality
.CE,ISO9001
.5/15 years warranty
.24hours online serviceSolar water heater system details:
Model: QAL CG 200L5

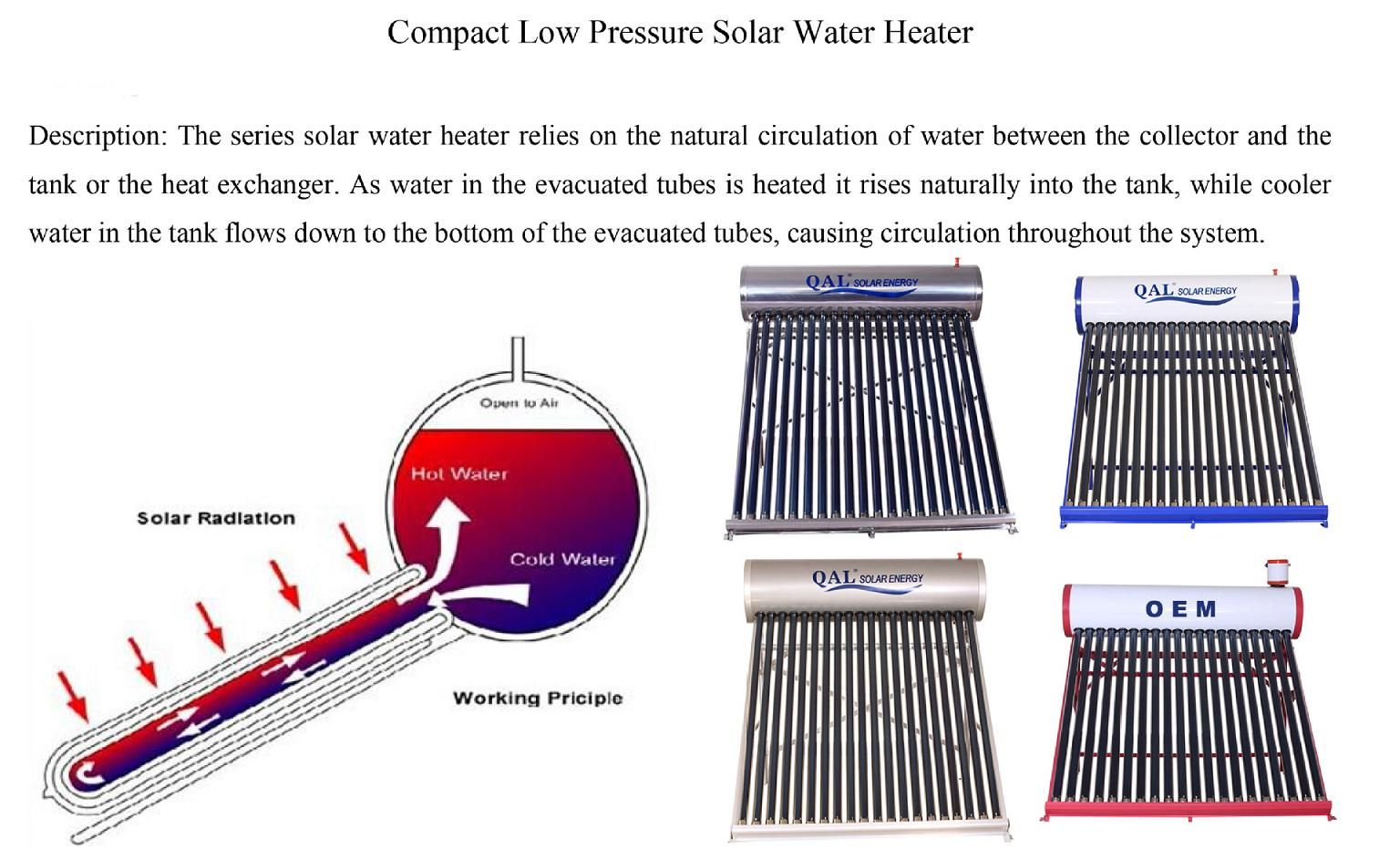

How solar water heater system works
1. Solar water heater system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.
Solar water heater system features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

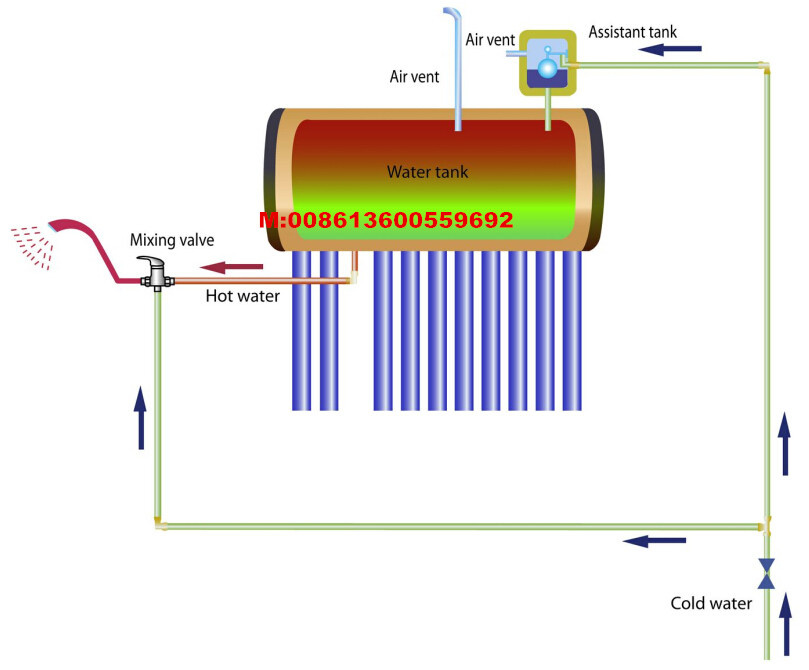

Non-pressure solar water heater optional accessories
1. Assistant tank: 5L
2. Controller
3. Electrical heater: 1.5/2/2.5kw
| Description | Non-pressure solar water heater |
| Material of inner tank | 0.4mm SUS304-2B food grade stainless steel |
| Material of outer tank | 0.4mm colorful steel |
| Tank insulating layer | 55mm high-density polyurethane foamed |
| Tank Capacity | 200L |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P< =0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | 0.04-0.06(80C+-5C) |
| Heat preservation | 72hrs |
| Hail resistance | Φ25mm |
| Bracket: | 1.4mm coated galvanized steel |
| Structure of tank: | 5 holes for air vent, overflow, water inlet and outlet, electric heater |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tube quantity | 20 tube 58x1, 800mm |
From its early beginnings in 2000 Redao (originally called Alinsidun Technologies) is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All Redao products are complied with CE, ISO9001-2008.
With our dedicated and experienced team, our specialised manufacturing base, as well as the continued focus on technical solutions and customer service, we are sure that Redao will remain the supplier of choice for many throughout the coming years.
Redao strives to maximize production outputs and quality using the very lastest in manufacturing techniques, and uses equipment with proven reliability and the flexibility to adapt to fast changing requirements of customers. If you are interested in Redao water heater system, please feel free to call us.
Redao brief profile:
2000>Alinsidun establish, the former name of Redao. Production of solar water heater tank begins.
2001>Alinsidun develop its first solar water heater. Rush production begins.
2002>Alinsidun opened sales and distribution office in Shanghai, China.
2003>Alinsidun was awarded "Observing contract & Valuing Credit Star factory" by Zhejiang Quality Examinations and Appraisal Center.
2004>Export production begins.
2005>Alinsidun observed Good Quality control system by Chinese Product Quality Management center. At the same time, Alinston became the mumber of China Solar water Quality Control System.
2006>Alinsidun was awarded "China Solar Water Heater Most Famous Brand" by China Product Quality Management Center.
2007>Alinsitun complied with the Quality Assurance Requirements of ISO 9001-2000
2011>Redao became the company name instead of Alinston, and Redao solar water heaters complied with CE certification. In Aprial, Redao complied with ISO 9001-2008.
2012>QAL mark registered.
