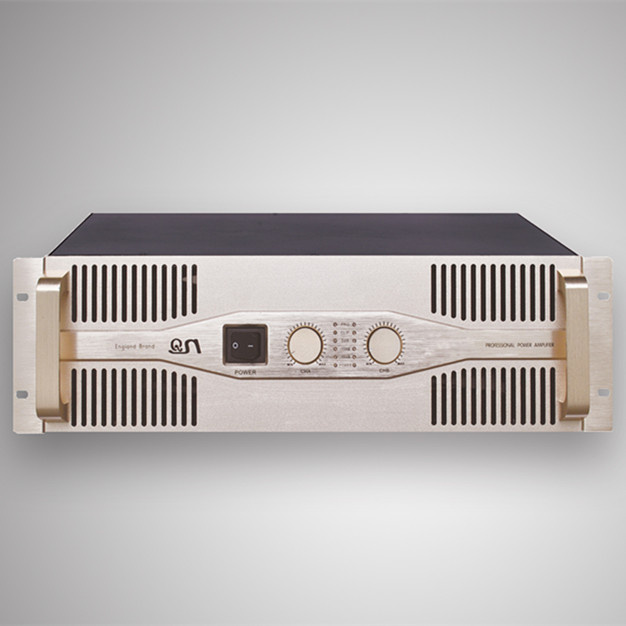

QA5145 2U 2 Channel 450W Stereo Professional High Power CB Linear Amplifier
| Price: |
US $ 193/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |
| Prod Model: |
QA5145 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power 8ohm Stero: |
450W*2 |
| Power 4ohm Stero: |
800W*2 |
| Power 2ohm Bridge: |
1600W |
| Frequency Response: |
20Hz-20kHz(+-0.3db) |
| System Sensitivity: |
0.775V/1.0V/1.44V |
| Operation Mode: |
Stero/Bridge/Parallel |
| Thd: |
<0.08% |
| Size: |
484*460*88mm |
| Net Weight: |
19kg |
| Transisitor: |
Original American on Semi |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
KTV System |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Conductive Mode: |
Classh+ |
| Sound Channel: |
2.0 |
Product Description
QA5145 2U 2 channel 450w stereo professional high power cb linear amplifierFeature: 1)All the semiconductors are the famous brands - American ON Semiconductor, or Toshiba;
2)Using a special audio electrolytic capacitors, it shows high-grade and perfect sounds;
3)It Adopts SMT technology, so it high integration and more stable;
4)Intelligent CVT fan cooling thermal systems, it will so quiet when the machine is small power or cooling the machine;
5)Specialized perfect dynamic limiter. It will not loss the sound quality and protect your sound system effectively;
6)It has perfect protection system, the machine can be stable and not unexpected even if under the extremely conditions.
7)Designed for the professional market products, all modular, compact design, it has a precise And comprehensive protection Care system, beautiful and dynamic sound, stable and reliable performance, compact and elegant appearance.
8)Series for highend professional market, the series for large Diba, nightclubs, stadiums, heatersand so on.
| Model | QA5110 | QA5108 |
Rated power(power)
(1KHz,THD+N=0.7%)
| 8ΩStereo | 1000WX2 | 800W |
| 4ΩStereo | 1650WX2 | 1350W |
| 4ΩBridged | 3400W | 2800W |
| Low cut | 30Hz | 30Hz |
Protect
| 1.DC protection 2. short circuit protection 3.overheat protection 4.over current protection 5.Input overload protection 6.output overload protection 7.Soft start
|
|
| frequency response | 20Hz~20KHz(+-0.3dB)
|
| sensitivity | 0.775V/1.0V/1.44V |
| work mode | Stereo/parral/bridged |
| fans working way | intelligent speed adjustment |
connector(each channel)
| input connector | XLR(6.3&) |
| output connector | binding post&speaker plug(speakon)(SPEAKON) |
input impedance
| balance input | 20K |
| unbalance input | 10K |
| mixed voice reduction | ≥60dB |
| Signal to noise(RMS 8Ω) | ≥103dB |
| damp factor | ≥650 |
| THD | ≤0.08% |
| Position response | ±10° |
| speed rate | ≥25V/μs |
| output circuit mode | Class H+ |
| Net weight | 27KG | 25KG |
| product size | 484W × 460D × 88H |
| package size(mm) | 590W × 600D×145H |
| Model | QA5106 | QA5145 |
Rated power(power)(1KHz,THD+N=0.7%)
| 8ΩStereo | 600WX2 | 450W |
| 4ΩStereo | 950WX2 | 800W |
| 4ΩBridged | 2200W | 1600W |
| Low cut | / | / |
Protect
| 1.DC protection 2. short circuit protection 3.overheat protection 4.over current protection 5.Input overload protection 6.output overload protection 7.Soft start
|
|
| frequency response | 20Hz~20KHz(+-0.3dB)
|
| sensitivity | 0.775V/1.0V/1.44V |
| work mode | Stereo/parral/bridged |
| fans working way | intelligent speed adjustment |
connector(each channel)
| input connector | XLR(6.3&) |
| output connector | binding post&speaker plug(speakon)(SPEAKON) |
input impedance
| balance input | 20K |
| unbalance input | 10K |
| mixed voice reduction | ≥60dB |
| Signal to noise(RMS 8Ω) | ≥103dB |
| damp factor | ≥350 |
| THD | ≤0.08% |
| Position response | ±10° |
| speed rate | ≥25V/μs |
| output circuit mode | Class AB |
| Net weight | 21KG | 19KG |
| product size | 484W × 380D × 88H |
| package size(mm) | 590W × 520D×145H |
Our advantage:1)our product have passed ISO9001,SGS,CE, CCC, FCC, ROHS, CE-LVD.2)we are a factory which will provide reasonable price,high quality product and professional service.3)we have 66 workers with 4 rich experienced engineers for speaker and amplifier.4) fast delivery and excellent aftersale service
About Acessories:We will send you the enough connectors and some other spare parts for you free.Packaging:
1)Dual carton with Foam
2)Carton with external plywood bracket for Speaker
About our company Established in 2005,Guangzhou Yunqiang Electronic Co.ltd specializes in R&D,design,production and marketing of professional speaker,professional power amplifiers,karaoke speakers and amplifier etc.Backed by high technology and staffed with a professional R&D team and QC team,the factory introduces some advanced electronic testing equipments from Japan,taiwan,ect.Combined with advanced processing lines.Exported to the Asia,Middle East,Europe,Amercia,Africa,etc.Our products enjoy high reputation and meet the demand of the market with the high quality and reasonable price.Our Main product:Professional speaker,Line array speaker,subwoofer,professional amplifier,karaoke speaker,karaoke amplifier,Pre-amplifier.Our location:Our factory located in Longhu village,Shijing Road,Baiyun district,Guangzhou city,Guangdong Province,China.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

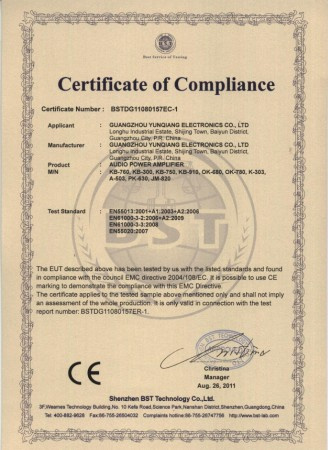

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2016 Prolight + Sound Guangzhou
Our booth is A70 4.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 29 February~3th, March, 2016
