| Prod Model: |
S415 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Sunlanrfid-OEM |
| Size: |
Cr80 Size: 2.125*3.375 Inch(86*54 mm)or Customized |
| Thickness: |
0.76-0.84mm or Customized |
| Printing Options: |
Offset/Silk Screen/Digital/Laser Printing etc |
| Surface Craft: |
Glossy/Matt/Dump/Frosted/Sport UV etc |
| Optional Craft: |
Embossing Name/Number, Barcode, Signature, etc |
| MOQ: |
500PCS |
| Samples: |
Free Samples Are Available |
| Original Place: |
Shenzhen, China |
| OEM: |
Welcome |
| Function: |
Information |
| Type: |
Magnetic Stripe Card |
| Material: |
PVC/Pet/PETG/PLA |
Product Description

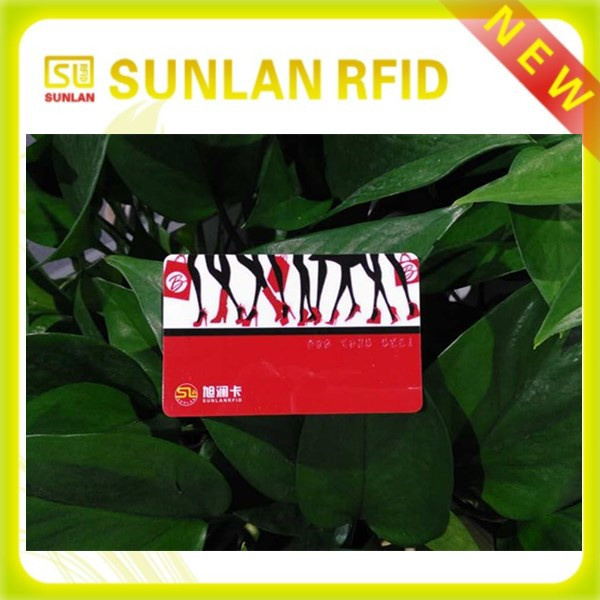

PVC Magnetic Stripe Card with Signature Strip
About us:
We, Shenzhen Sunlanrfid Technology Co., Ltd. Is a manufacturer in south of China, specializing in the manufacturing of RFID tags in different format, ISO cards, Clamshell Cards, Key fobs, Token, Coin Tags.
Our Cooperator:
ISSI, FOXCONN, SINOPEC, China UNICOM, China POST, Vienna Hotel Group...PVC
PVC Magnetic Stripe Card Description:
1. Printing options
- Offset printing(CMYK), silk screen printing(Panton Color), digital printing, inkjet printing, thermal printing;
- gold or silver color background;
- Hot stamp foil color ( gold, silver, laser red gold etc);
- Security logo printing;
- Hologram logo.
2. Size
- CR80 Size: 2.125*3.375 inch (86*54 mm)or customized die cut shape;
- Common size: 12mil(0.3mm), 14mil(0.36 mm), 18mil(0.45mm), 20mil(0.5mm), 30mil(0.76mm);
- Uncommon size: 24mil(0.6mm), 40mil (1.0mm);
3. Surface Processing Craft
- Lamination Glossy, Frosted, Dump, Matt, Sport UV, Epoxy or others special request.
4. Material
PVC/PETG/PET/ABS/PLA
5. Optional Crafts
- Embossing name, number and date ( gold or silver color for options);
Barcode, QR code, Signature panel, magnetic strip, scratch-off panel, UV;
6. Magnetic Stripes(LoCo/ HiCo)
1). Low coercivity (LoCo) and High coercivity (HiCo) magnetic stripes. Encode data into track 1, 2, 3;
2). Magnetic size: 8mm/12.5mm;
7. Scratch-Off Panels
It is commonly used to cover surprise gifts, codes, surprise discounts, data, icons etc. The client/user receives the card in the mail, at a store, or event and then gets to simply scratch off the panel to reveal the information. You can include more than one scratch panel on your design, however, too many panels can leave residual "scratch-off" material on your cards.
8. Technic Specification
Name: Mifare one card and CPU card for PVC Magnetic Smart Card
Chips Available: ISSI 4439, ISSI S70, QR2217, NXP S50, NXP S70, FM1108, etc.
For CPU card: FM1208, ISSI4456, NXP PLUS, P5CD12A4T0B, etc.
Card Size: 85.5*54*0.76mm or customized size
Storge Temperature: -20~50
Operating Temperature: -20~50
Frequency: 13.56MHz
EEROM write time: 2.5ms
EEROM write endurance: 10, 000cycles
EEROM data retention: 10years
Operating distance: 2.5~10cm
Memory Capacity: 1KB, 4KB, 8KB
Read/Write: Read and write
Our Certificate:
ISO 9001-2008, SGS.
MOQ:
500PCS
Packing:
ISO size 0.76mm: 200 PCS/box. 10 boxes/carton.
Standard size card weights (size as credit card): (only for reference. )
1000 PCS 6KG 5000 PCS 30 KG
Shiping:
3-8 working days after the receipt of 50% deposit of the total payment
By express: UPS/DHL/TNT/FedEx By Air / Sea or on your demand
Payment for Magnetic Stripe Card:
T/T, WesterUnion, Paypal
Samples:
FREE Samples are available but freight collect.
How to buy Magnetic Stripe Card?
1. Tell us the specification, like size, quantity, artwork, etc
2. Then I'll give you the price
3, After you confirm the price, I'll send you PI
4. Then I make a JPG confirm file to you once receive your AI, PDF, CDR design file
5. Once you said the JPG confirm file is ok and we received your deposit, we begin to make them
Julia
Phone: +86 18026958136
Shenzhen Sunlanrfid Technology Co., Ltd
Add: Asian Industrial Zone, Gangtou, Bantian, Longgang District, Shenzhen, China 518129
Tel: 86)0755-28416658 Fax: (86)-89602115
| Available RFID Chip |
| LF 125 KHz | EM4200 / EM4100, ATA5577, EM4205,EM4305,HITAG 1, HITAG 2, HITAG S256 etc. |
| HF 13.56 MHz | S50 (1K), S70 (4K), Ultralight, DESFire EV1 (2/4/8K), |
| PLUS, I.CODE SLI, I.CODE SLI-S, Tag-it Plus(2048), Tag-it Pro(256), |
| Tag-it Standard(256), LEGIC MIM256, LEGIC MIM1024, LEGIC Supertag, |
| FM1108 ,ISSI4439,QR2217,FM1208(8K) |
| UHF 860-960MHz | Alien 9662, H3. ISO/IEC 18000-6C EPC |
