| Prod Model: |
JLF (B) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting: |
Wall Fan |
| Air Flow: |
35000m3/H |
| Type: |
Air Cooling Fan |
| Power Supply: |
Electric |
| Timer: |
Without Timer |
| Speed: |
1 Speed |
| Power: |
as Demanded |
Product Description
FEATURES:
1 Frames: thick galvanized sheet, with high resistance to corrosion.
2 Blade: no deform and break, attractive and durable. reasonable angle
3 Bearing: Sealed permanently, high strength, low noise.
4 Propeller and impeller: aluminum magnesium alloy, low weight, high strength and ductility.
5 Motor: CCC certificate, IP 5, Insulation level F class. both China and Siemens motor available.
6 Pulley of motor: casting tell, high strength, long-lasting
7 V-Belt: imported from Japan and Korea, resistance to abrasion, without deformation. And there are A and B for choosin
Technical Details :
| Model | Diameter
blades
(mm) | Blades
speed
(r/min) | Motor
speed
(r/min) | Air
flow
( m³ /h) | Noise decibel |
power
(w) | Rated
voltage(v) | Height
(mm) | Width
(mm) | Thickness
(mm) |
| JLF(d)-1000 | 900 | 438 | 1400 | 35000 | ≤60 | 550 | 380 | 1000 | 1000 | 450 |
| JLF(d)-1100 | 1000 | 438 | 1400 | 38000 | ≤65 | 750 | 380 | 1100 | 1100 | 450 |
| JLF(d)-1380 | 1250 | 437 | 1400 | 44000 | ≤65 | 1100 | 380 | 1380 | 1380 | 450 |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.

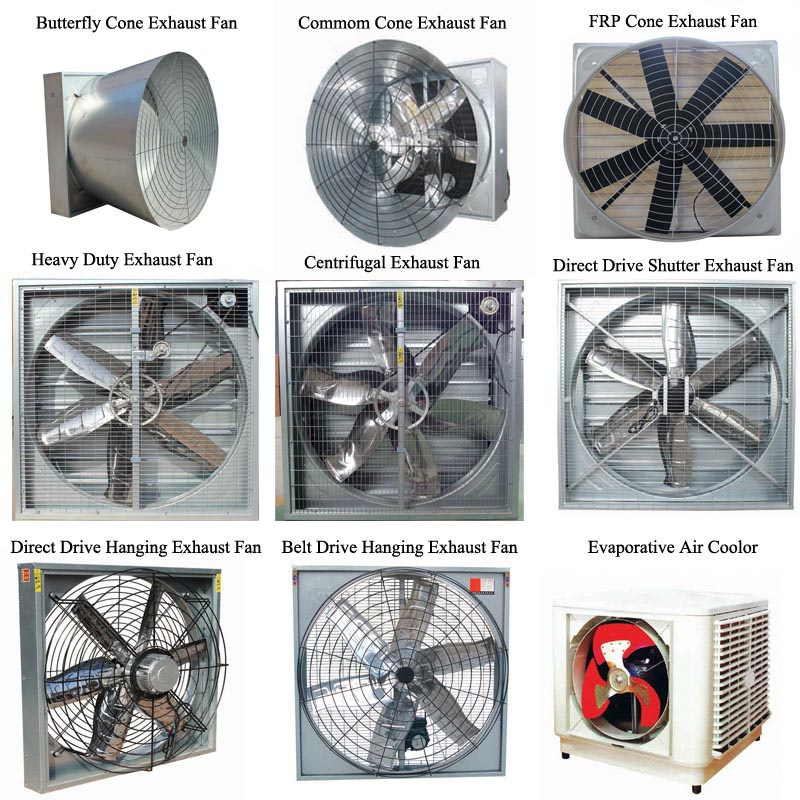

Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
