| Prod Model: |
PU-4638 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Meeting |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
Product Description

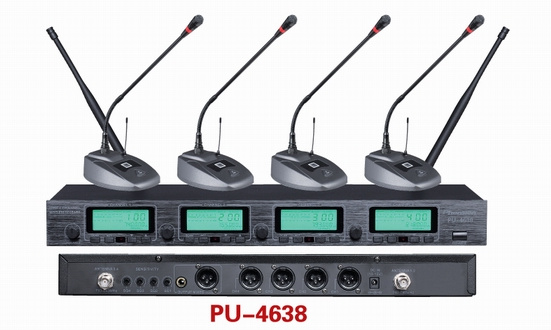

PU-4638 Four Mic Sync IR Pll UHF Conference Microphone
1. With the PLL technology, 200 frequency channels can be chosen, which make it convenient to use several sets at the same time and avoid kinds of interference.
2. Sync IR Frequency synchronization technology adopted, the frequency of the transmitter can be received automatically by the sync IR signal and synchronously with the receiver. The signal is stable and the anti-interference capacity is enhanced.
3. Green display in the transmitler, it can display the working state directly.
4. Stable audio circuit results in high-Fidelity and clear vocal.
5. Mute Switch at the bottom, it is convenient to use.
Frequency Range: UHF 620-950MHz
Frequency Response: 40Hz-18kHz
Frequency Stability: < ± 0.005%
Modulation Mode: Wide- band FM
Modulation Range: 25MHz
Total channels: 4 X100 channels
Working distance: 60m
Channel spacing: 250 kHz
Dynamic Range: 100dB
Maximum Deviation: ± 45kHz
AF Response: 65Hz-15kHz (± 3 dB)
Total Harmonic Distortion: < 0.5%
Audio Output Balance: 0-500mV
Receiver
Power supply: AC 100-240V, 50/60Hz
DC Adaptor output power: 13-15V, 500mA
Power consumption: 5W
S/N Ratio: > 98dB
P/N Ratio: > 80dB
F/N Ratio: > 80dB
Receive sensitivity: 5dBu
Transmitter
Frequency Oscillation Mode: PLL
Transmitter Power: High 30Mw, Low 3mW
Modulation Mode: FM
Band width: 50MHz
Frequency Interval: 250kHz
Maximum Deviation: ± 45kHz
Harmonics Radiation: < -55dBc
Battery Voltage: AA 1.5V× 2
Battery Life: 8-10 hours
Enping Phonsion Electronic Factory is located in Enping, the largest industrial base of microphone in China. We are a professional factory in producing, processing and selling electronic products. Our main products are wire microphone, wireless microphone, conference microphone, amplifier, mixer, as well as audio accessories. Phonsion has own production factory, enormous R&D department, perfect quality control system, high-talented management team and devoted staff in order to provide a full range of sales and after-sales service for our customers.
Based on the tenet of "Quality first, Customers the highest", we devote ourselves to providing OEM and ODM service for our customers. Phonsion team will base on the vision of the future, and look forward to your cooperation with the first class service attitude and quality. We believe that we will create a better tomorrow together.
