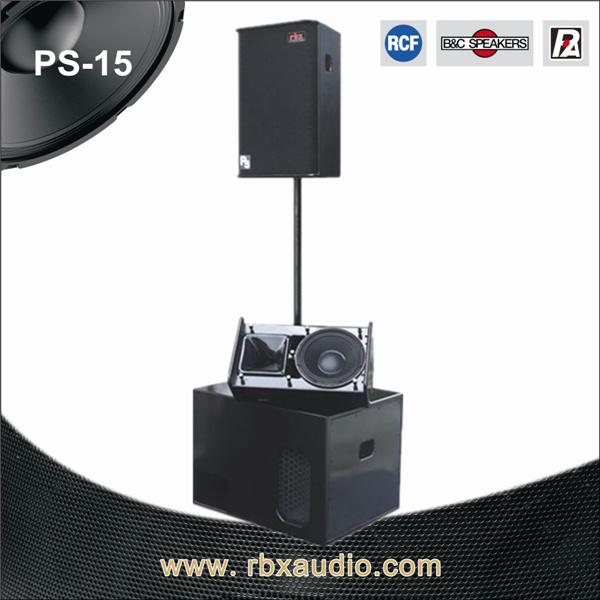

PS-15 PRO Portable Speaker with High-Quality Electronics Parts

Prod Model:	PS-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	180mm Magnet with Aluminum Frame
Hf Component:	120mm Magnet
Size Options:	8", 10", 12", 15"
Installing:	Hanging, Pole Mount, Stand, Lying Down
Diaphragm:	Paper
Capacitor:	Solen
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Home
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:
a. Imported multilayer birch plywood;
b. High-quality durable polyesterimide paint with half matting varnish technology;
c. Mellow and full alto, a bright and penetrating treble.

1. Description:
PS-15 is a two-way full range loudspeaker, we apply several sheets of imported multilayer birch plywood. And, the high-quality durable polyester coatings and the half matting varnish lead to a high-end and elegant appearance.
PS-15 is equipped with a 15" LF precise driver and a 2" HF precise compression driver. When you use it, you will feel a flexible bass, a mellow and full alto, a bright and penetrating treble.

2. Application:
Our PS-15 15" two-way KTV pa system is ideal for auditorium, conference room, music bar and etc. It can be used independently in auditorium. Also, it can be combined with our sub-woof loudspeaker system in mini-bar.

3. Technical data:

Model	PS-15 Pro Portable speaker with high-quality electronics parts
Drivers	LF: 1×15"voice-coil: 3"
	HF: 1×2"voice-coil: 3"
Frequency(±3dB)	50HZ-18KHZ(±3dB)
Dispersion(-6dB)	Hor:90° × Vert:60°
Sensitivity(1m/1W)	99dB
Maximum SPL	128dB Continuous/133dB Peak
Nominal Impedance	8 Ohms
Input power	Rate: 400W/Peak: 1600W
Recommend AMP	550W to 1200W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	675 × 434 × 368mm (H × W × D)
Master carton	735 × 494 × 428 (H × W × D)
Net Weight	27Kg
Gross Weight	31.5Kg


4. Construction:

Physical	Polygonal
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole, black sponge outside
Paint	Polyester coatings with half matting varnish (whose color can be customized.)
Handing Position	RBX handing system
Pole Mount	Bottom: Φ35mm support base

5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
