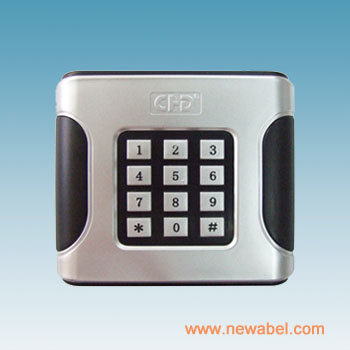

| Prod Model: |
CHD602PM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. The communication agreement of CHD602PM is compatible with HID5355K card reader. The reader is also used as accessorial device of the access controller which is outside connected with a HID5355K card reader.
With some powerful functions, for example, it supports to open doors by password and/or reading card. It has handsome and exquisite appearance, easy and convenient to operate.
2. Performance parameters
* Size: 120MM(length)X 106MM(width)X 24MM(thickness)
* Weight: 165± 10g
* Power supply: DC7~12VDC, static state current: ≤ 100mA;
* Working frequency: 125KHz(CHD602P)/13.56MHz(CHD602PM);
* Support card: EM Card(CHD602P) / Mifare 1(CHD602PM);
* Reading card distance: ID card≥ 8cm/IC card 4cm, (depend on the card type and quality);
* Speed of reading card: ≤ 0.1second
* Communication interface: Standard Wiegand interface, OC output, lightning-proof protection;
* Distance of Wiegand transmission: ≤ 60m
* Working temperature: -10° C~50° C; Relative humidity: 5%~95%
* With an indicator light for display;
* Relative humidity: ≤ 90% no condensation
* Open lock feedback: Legal reading card to open lock the red light doesn't shine, illegal reading card the red light shines (notice that the No. Of opening lock relay must connect feedback input UNL and this function will be effective. )
* Immunity parameter: ESD meet touched discharge 8KV, air discharge 15KV; EFT meet power interface 1KV, Weigand interface 0.5KV; SURGE meet power supply interface 2KV, Weigand interface 1KV
