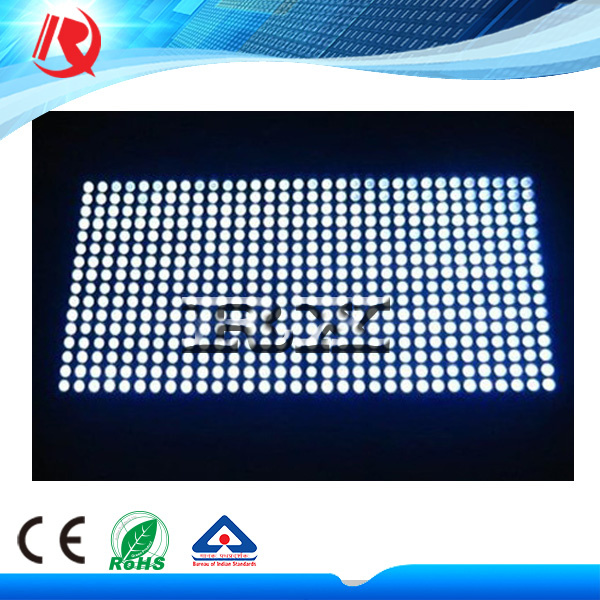

Programable LED Sign P10 White DIP Module Display
| Price: |
US $ 4.5-5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
P10 |
| LED Color: |
Red |
| Pixel Pitch: |
10mmm |
| Brightness: |
2500CD/Square Meter |
| Scan Mode: |
1/4 |
| Module Size: |
320mm*160mm |
| LED Encapsulation: |
32*16 Dots |
| LED Light Source: |
Piranha |
| Emitting Color: |
Red |
| 1 LED Power: |
0.3-0.5W |
| Power: |
15W |
| LED Chips: |
Epistar |
| IP Rating: |
IP65 |
| Waterproof: |
Waterproof |
Product Description

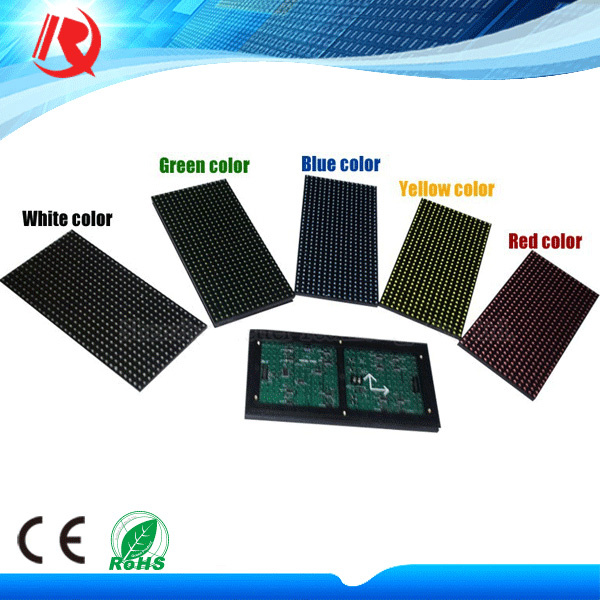

we also have semi-outdoor red, white,blue, green and dual color, you can contact us if you are interested in it:
specification as following | Product | Outdoor P10 single color RED Module |
| Pixel Pitch(mm) | 10 |
| Pixel composite | DIP 346 |
Pixel density
(dots/sqm) | 10000 |
| Drive model | 1/4 scan |
| Module resolution | 32*16 |
Module size
W*H(mm) | 320*160 |
| Cabinet resolution | 96*96 |
Cabinet size
W*H(mm) | 960*960 |
| Brightness (nits) | ≥2400 |
Average consumption
(W/sqm) | 280 |
Max consumption
(W/sqm) | 550 |
| Cabinet weight( kg ) | 45 |
| Power supply mode | constant current |
| Refresh rate | 1000HZ |
| Frame Frequency | 60HZ |
| Gray scale | 12 bit for each color(R,G,B). |
| Colors | 36bit |
| Color temperature | Color temperature can be adjusted as well. |
| IP grade | Rear IP54 |
| View angle | 140°/140° |
| Uniformity of luminance | <3% |
| Control method | Synchronization control by PC |
| Effective communication distance | Network Cable, 100 m;
Multimode optical fiber, 1000 m;
Single mode fiber, 10 km. |
| Pixel failure ratio | <1/100000(industrial standard<1/10000) |
| Mean time between failures | >10000 hours |
| Life span | >100000 hours |
| Earth Leakage Current | <2mA |
| Power supply | AC220V/50HZ OR AC110V/60HZ |
| Operating temperature | -20~60ºC |
| Operating humidity | 10%~90% |
we are the manufacturers of LED module, screen, panel for more than 10 years,we have profetional technicals and working stuff to make sure every single proudct quality.
