| Prod Model: |
AT-8830 Professional UHF Wireless MIcrophone |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
TRS 3.5 mm |
| Wireless Technology: |
UHF |
Product Description

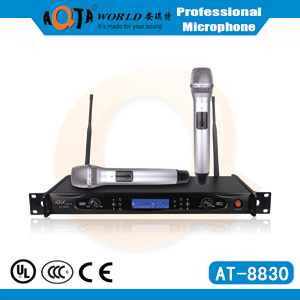

AT-8830 Dual Professional UHF Wireless Microphone
Features:
*Wide UHF 600-900MHz frequency, 200 selectable channels
*Flexible, simple and convenient to operate
*Advanced digital PLL to ensure the unit in high stability and wide frequency response
*LCD display screen
*MCU intelligent control enhances the system status, analyses signals and blocks noises to make the sound perfect
*Dual sound effect compress and expand function offer higher S/N ratio and larger dynamic range
*Multiple squelch control circuit helps to get rid of the external interference
*Unique design, powerful dynamic and wide frequency response are the perfect choice for KTV, live performance and other occasions
System Specification
*Frequency Range: UHF 600-900MHz
*Modulation: PLL
*Adjustable Range: 50MHz
*Channel: 2x100
*Frequency Interval: 250KHz
*Frequency Stability: within ±0.005%
*Dynamic Range: 100dB
*Maximum Frequency Deviation: ±45KHz
*Frequency Response: 80Hz-180KHz ±3dB
*S/N: >105dB
*T.H.D: <=0.5%
Receiver Specification
*Receiver Mode: Double Conversion Superheterodyne
*Intermediate Frequency: First: 110MHz, Second: 10.7MHz
*Wireless Interface:BNC/50WΩ
*Sensitivity: 12dBμV(80dBS/N)
*Sensitivity Adjustable range: 12-32dBμV
*Spur Suppression: >=75dB
*Maximum Output Level: +10dBV
Transmitter Specification
*Antenna Mode: Backpack transmitter equips with 1/4 wave whip antenna, handheld microphone equips with built-in helical antenna
*Output Power: High: 30mW, Low: 3mW
*Spur Suppression: -60dB
*Power Supply: 2x1.5V AA battery
*Battery Life: less than 10 hours (30mW), less than 15 hours (2mW)
