| Prod Model: |
TC-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
305g |
| Frequency: |
25-30 MHz(Europe) |
| Supply: |
12-14 Vcc |
| Input Energy/Power: |
8-11 a |
| Input Power: |
1-5 W |
| Input Power Ssb: |
2-10 W |
| Output Power: |
50 W Max |
| Output Power Level: |
1 |
| Used For: |
Professional |
| Function: |
Post Amplifier |
| Output Number: |
1 |
| Element Number: |
Monoamplifier |
| Type: |
Power Amplifier |
| Usage: |
Power Amplifier |
| Voltage: |
12-14 Vcc |
Product Description

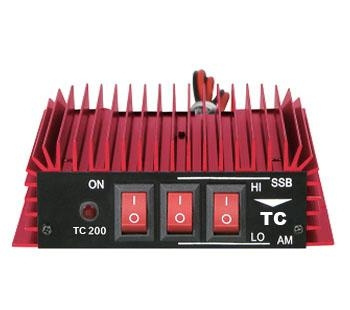

Compact high power all mode linear amplifier with automatic TX/Rx switch and On/Off switch, especially developed for commercial vehicles operating on 24V DC.
Electronic switch
Inversion polarity protection
Frequency 25-30 MHz(Europe)
Supply 12-14 Vcc
Input energy/power 8-11 A
Input power 1-5 W
Input power SSB 2-10 W
Output power 50 W Max
Output power SSB 200 W pep Max
Mode AM-FM-SSB-CW
Fuse 12 A
Output power level 1
Size 109x125x35 mm
Weight 305 gr.
This model can be amplify 50W for HF radio.
1.Turn on/off switch
2.Auto receive/transmit switch
3.Electrode reversal protect |
| Specifications |
| Frequency range | HF( 3-30MHz) |
| Operate voltage | 12-14 Vcc |
| Input current/power | 8-11 A |
| Input power | 3-5 W |
| Input power SSB | 2-10 W |
| FM Output power | 50 W(Input 10W) PEP Max |
| AM Output power | 50 W(Input 10W) PEP Max |
| Output power SSB | 200 W (Input 10W) PEP Max
150W(Input 5W) PEP Max |
| Working mode | FM- AM-CW-SSB |
| Blown fuse | 1X12A |
| Dimension | 109x125x35 mm |
| Net weight | 305 g. |
