| Prod Model: |

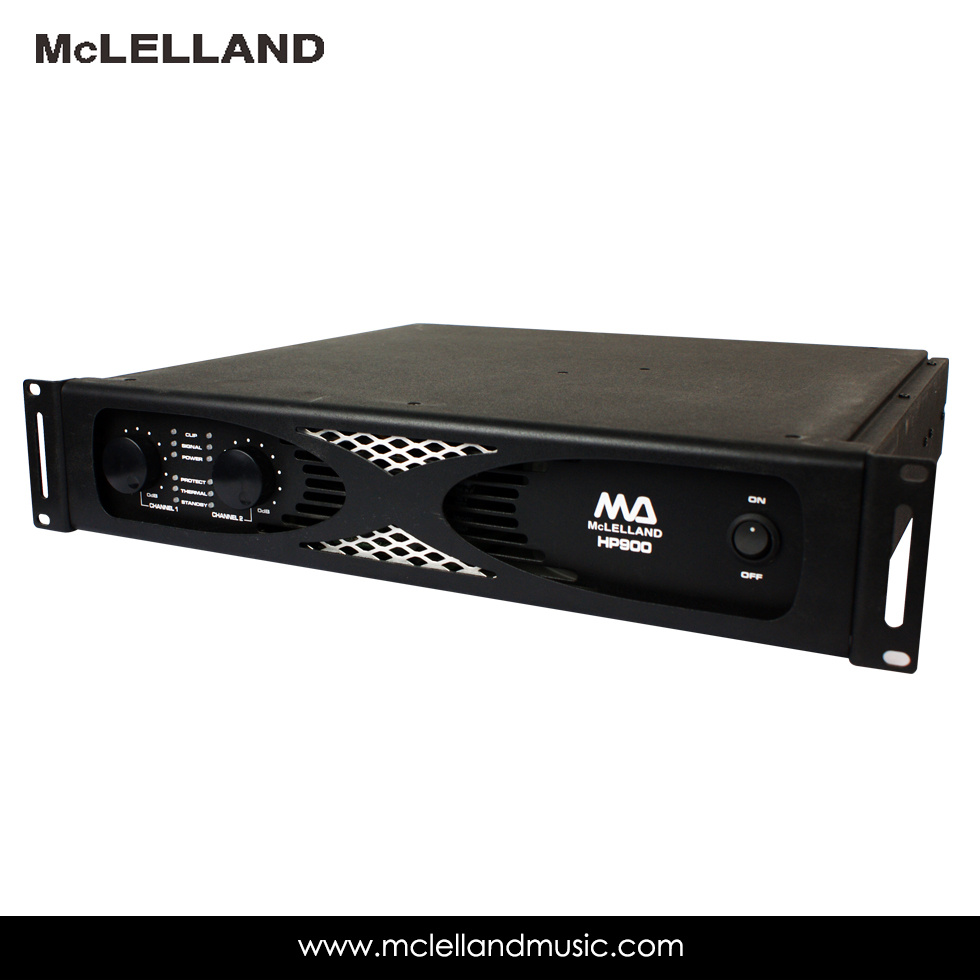

HP 900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stable 2ohm Operation: |
Switched Soft Knee Clip Limiters |
| Variable Speed Ultra-Quiet Facooling: |
Power Ready, Signal Present, Clip, Protect, Thermal |
| Standby LED Indicators For Each Channel: |
Soft Tart in-Rush Current Limiting |
| Input Via 1/4'' Trs And XLR Connectors: |
Heavy Duty AC Line Cord |
| Function: |
Amplifier Combined |
| Tube Type: |
Transistor Amplifier |
| Element Number: |
Monoamplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Voltage: |
Switchable AC115V/60 or 230V/50Hz |
| Usage: |
Professional, Commercial, School, Station |
| Sound Channel: |
2channel |
Product Description
Features:
*Stable 2 Ohm operation
*Variable speed ultra-quiet fan cooling
*Power ready, Signal Present, Clip, Protect, Thermal and Standby LED indicators for each channel
*Level control defeat can be accessed from rear panel
*Switched 40Hz/ 80Hz(12dB/octave cut)High Pass and Low Pass Filters
*Switched Soft Knee Clip Limiters
*Soft Start In-Rush Current Limiting
*Input via 1/4" TRS and XLR connectors
*Speaker Outputs via Speakon connectors
*Speaker Outputs via two pairs of Multi-Way binding posts
*Heavy Duty AC Line Cord
*Optional Accessories: 70 Volt Line Transformer
|
Model No. |
HP 600 |
HP 900 |
HP 1200 |
HP 1500 |
|
Watts Stereo loads 8Ω |
200W |
225W |
370W |
500W |
|
Watts Stereo loads 4Ω |
300W |
450W |
585W |
800W |
|
Watts Stereo loads 2Ω |
375W |
550W |
925W |
1300W |
|
Watts Bridge mono 8Ω |
600W |
900W |
1170W |
1600W |
|
Watts Bridge mono 4Ω |
750W |
1100W |
1850W |
2600W |
|
Freq Response |
20Hz-20KHz with less than 0.5% THD+N |
20Hz-20KHz with less than 0.5% THD+N |
20Hz-20KHz with less than 0.5% THD+N |
20Hz-20KHz with less than 0.5% THD+N |
|
Rack Spaces |
2U |
2U |
2U |
2U |
|
Weight |
20Kgs |
22Kgs |
28Kgs |
29Kgs |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
