| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 483mm*462mm*133mm: |
110V/220V |
| Sound Channel: |
6.1 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
6 |
| Element Number: |
Professional Power Amplifier |

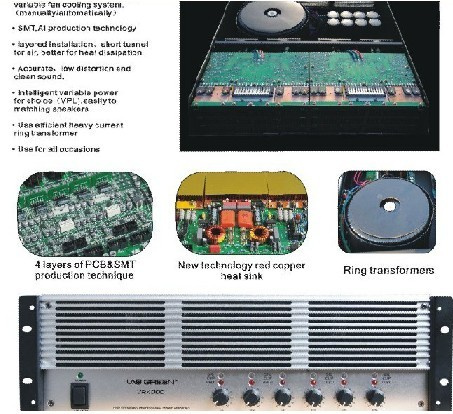

Product Description
*DC-DC converter;
*3U standard;
*intelligent temperature control, variable fan cooling system;
*SMT&Al production;
*Low distortion&clean sound;
*Intelligent variable power for choice(VPL).
|
VR SPECIFICATION |
VR2000 |
VR4000 |
|
Number of channels |
4 |
6 |
|
8Ω |
1200w |
1200w |
|
4Ω |
1600w |
1500W |
|
VPL, selectable per ch. (V) |
150v, 121v, 101v, 83v, 70v, 56v, 47v, 38v |
150v, 121v, 101v, 83v, 70v, 56v, 47v, 38v |
|
THD 20Hz-20kHz |
< 0.1% |
< 0.1% |
|
THD at 1kHz and 1db below clipping |
< 0.05% |
< 0.05% |
|
Channel separation (Crosstalk) at 1kHz |
> 70dB |
> 70dB |
|
Frequency response(1 W into 8 ohms)+0/-3dB |
10Hz-20kHz |
10Hz-20kHz |
|
input sensitivity (VPL off) |
1.2v |
1.2v |
|
Input impedance(bal/unbal) |
20k/10k |
20k/10k |
|
Signal Parallel (signal innput source ch1) |
1-4 |
1-6 |
|
Signal to noise ratio |
> 110db |
> 110db |
|
Dimension (W*D*H) |
483mm*462mm*133mm |
|
Power requirements |
110, 220v |
Our factory specialized in production of audio equipment, the switching mode power supply amplifier we manufactured for audio, feature with high technology, energy saving, environmental protection, light weight. The product has passed CE, 3C certification, and obtained the certificate and report CB. FP series amplifiers feature with electronic technology, audio technology, the arts in one, use new type red copper heat sink, it is professional amplifier with high technology, energy saving, and environmental protection, the weight only 12Kg, it consumes less than ring transformer power amplifier about 28Kg of metal.
