| Prod Model: |

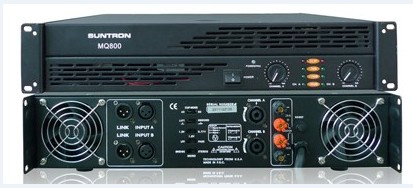

MQ800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Technical Specification:
Stereo power 8Ω 800W
4Ω 300W
2Ω Not suitable
Bridge mono 8Ω 2000W
4Ω Not suitable
S/N Rate: 106db
Slew rate: 80V/us
Damping factor: 550: 1
Frequency Response: +/-0.1db, 20HZ+20KHZ
THD: Less than or equal to 0.01%Rated power@8ohms 1kHZ
IMD: Less than or equal to 0.01% Rated power@8ohms
Input sensitivity: 0.775V, 1.0V, 1.55V
Low pass: 20HZ-180HZ Valid
High pass: 130HZ-20KHZ Valid
Input impedance: 10K/20K ohous, unbaMQnced or baMQnced
CMRR: Less than or equal to -75db
Cross talk attenuation: Less than or equal to -70db
Indecator light: Signal, protect, dctive, clip/limiting
Power input: 220V 50/60HZ FUSE: T15A
Weight: 25kg
Dimension: 483W× 490D× 88H
|
MODEL |
MQ200 |
MQ300 |
MQ400/450 |
MQ600 |
MQ800 |
Stereo power 8Ω
4Ω
2Ω |
200W |
300W |
400W |
600W |
800W |
|
300W |
450W |
600W |
900W |
1200W |
|
Not suitable |
Not suitable |
800W |
1100W |
1400W |
Bridge mono 8Ω
4Ω |
650W |
700W |
1000W |
1800W |
2000W |
|
Not suitable |
Not suitable |
1200W |
2000W |
2400W |
|
S/N Rate |
102db |
103db |
105db |
105db |
106db |
|
Slew rate |
60V/us |
60V/us |
60V/us |
80V/us |
80V/us |
|
Damping factor |
400:1 |
400:1 |
450:1 |
500:1 |
550:1 |
|
Frequency Response |
+/-0.1db,20HZ+20KHZ |
|
THD |
Less than or equal to0.01%Rated power@8ohms 1kHZ |
|
IMD |
Less than or equal to0.01% Rated power@8ohms |
|
Input sensitivity |
0.775V,1.0V,1.55V |
|
Low pass |
20HZ-180HZ Valid |
|
High pass |
130HZ-20KHZ Valid |
|
Input impedance |
10K/20K ohous, unbaMQnced or baMQnced |
|
CMRR |
Less than or equal to -75db |
|
Cross talk attenuation |
Less than or equal to -70db |
|
Indecator light |
Signal,protect,dctive,clip/limiting |
|
Power input |
220V50/60HZ FUSE:T5A |
220V 50/60HZ FUSE:T8A |
220V 50/60HZ FUSE:T10A |
220V 50/60HZ FUSE:T12A |
220V 50/60HZ FUSE:T15A |
|
Weight |
15kg |
16kg |
18kg |
23kg |
25kg |
|
Dimension |
483W×420D×88H |
483W×490D×88H |
Estabilshed in 1995, our company specialize in manufacturing and worldwidely sales of high quality products.
Our products contains conference discussion system, video track system, conference voting system, conference simultaneous interpretation system, central control system, AV, professional matrix switcher, Receptacle Panel, sound peripheral, microphone, power amplifier and professional sound speaker.
Our products have been exported to America, British, Europe and other countries, and also get good opinion from our customers. I think our products also have a good market in your country.
