| Prod Model: |
CX / RMX / PL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier |
| Sound Channel: |
2.1 |
| Conductive Mode: |
AB |

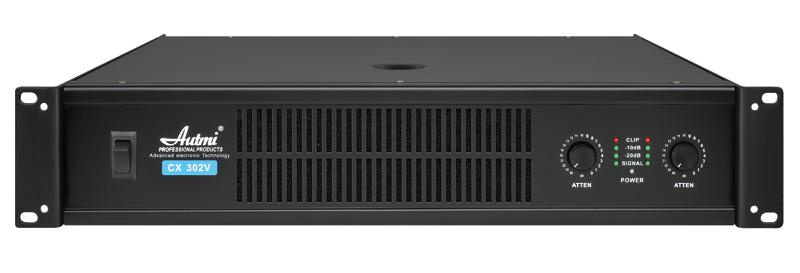

Product Description
Professional power amplifier
Professional Power amplifier uses a new techbology. Comprehensive protection of facilities: Short circuit, open circuit, DC protection, thermal overload protection, specifically designed for the transistors Thermal protection circuit. Unique input and output signal comparison, when the two are more than 0.05% of the error will be corrected without notice to ensure the fidelity of the amplifier. amplifier using the above design to stability, during and had greatly increased.
Model No. Power: final transistor :
CX302V 2 X 300W at 8 ohms, 2 X 450W at 4 ohms Original Toshiba 1943\5200,
total 16PC
CX502V 2 X 400W at 8 ohms, 2 X 600W at 4 ohms Original Toshiba 1943\5200,
total 20PCS
CX602V 2 X 600W at 8 ohms, 2 X 900W at 4 ohms Original Toshiba 1943\5200,
total 28PCS
CX802V 2 X 800W at 8 ohms, 2 X 1200W at 4 ohms Original Toshiba 1943\5200,
total 32PCS
Model | CX302V | CX502V | CX602V | CX802V |
Stereo power
1kHz 0.1%THD | 8Ω | 300W | 400W | 600W | 800W |
| 4Ω | 450W | 600W | 900W | 1200W |
| 2Ω | | 800W | 1100W | 1400W |
| Bridge power | 8Ω | 700W | 1000W | 1800W | 2000W |
| 4Ω | | 1200W | 2000W | 2400W |
| Singal To Noise | 103dB | 105dB | 105dB | 106dB |
| Slew Rate | 60V/μ s | 60V/μ s | 80V/μ s | 80V/μ s |
| Impedance | 400: 1 | 450: 1 | 500: 1 | 550: 1 |
| Frequency Response | +/-0.1dB, 20Hz~20kHz |
| THD | ≤0.01%Rated Power @8Ω 1kHz |
| IMD | ≤0.03% Rated Power @8Ω |
| Input Sensitivity | 0dB(0.775Vrms) |
| Input Impedance | 20K/40K |
| CMRR | ≤ - 80dB |
| Input control rate | ≤ - 75dB |
| LED indicator | On-power, -40dB, Clip/protect |
| Weight | 17kg | 19kg | 24kg | 25kg |
| Circuit type | AB | AB | H | H |
| Dimension(W×D×H) | 483×380×88mm | 483×450×88mm |
Model No. Power: final transistor :
RMX3450 2 x 300W at 8 ohms,2 x 450W at 4 ohms Original Toshi1943\5200,
total 16pcs
RMX5450 2 x 400W at 8 ohms,2 x 600W at 4 ohms OriginalToshib1943\5200,
total 20pcs
RMX6450 2 x 600W at 8 ohms,2 x 900W at 4 ohms Original Toshiba 1943\5200,
total 28pcs
RMX8450 2 x 800W at 8 ohms,2 x 1200W at 4 ohms Original Toshiba 1943\5200,
total 32pcs
| Model | RMX3450 | RMX5450 | RMX6450 | RMX8450 |
Stereo power
1KHz 0.1%THD | 8Ω | 300W×2 | 400W×2 | 600W×2 | 800W×2 |
| 4Ω | 450W×2 | 600W×2 | 900W×2 | 1200W×2 |
| 2Ω | | 800W×2 | 1100W×2 | 1400W×2 |
Bridge power
| 8Ω | 700W×2 | 1000W×2 | 1800W×2 | 2000W×2 |
| 4Ω | | 1200W×2 | 2000W×2 | 2400W×2 |
| Signal To Noise | 103dB | 105dB | 105dB | 106dB |
| Slew Rate | 60V/us | 60V/us | 80V/us | 80V/us |
| Impedance | 400:1 | 450:1 | 500:1 | 550:1 |
| Frequency Response | +/-0.1dB,20Hz~20KHz |
| THD | ≤0.01%Rated Power@8Ω 1KHz |
| IMD | ≤0.03%Rated Power@8Ω |
| Input Sensitivity | 0dB(0.775Vrms) |
| Input Impedance | 20K/40K |
| CMRR | ≤ - 80dB |
| Input control rate | ≤ - 75dB |
| LED Indicator | One-power, -40dB, Clip/Protect |
| Input | 1 Binding-post for each channel |
| Output Circuitry | AB | AB | H | H |
| Weight | 17kg | 19kg | 24kg | 25kg |
| Dememsions(W*D*H) | 483*380*88mm | 483*450*88mm |
Model No. Power: final transistor :
PL380 2 x 300W at 8 ohms,2 x 450W at 4 ohms Original Toshiba 1943\5200,
total 16pcs
PL480 2 x 400W at 8 ohms,2 x 600W at 4 ohms Original Toshiba 1943\5200,
total 20pcs
PL680 2 x 600W at 8 ohms,2 x 900W at 4 ohms Original Toshiba 1943\5200,
total 28pcs
PL980 2 x 800W at 8 ohms,2 x 1200W at 4 ohms Original Toshiba 1943\5200,
total 32pcs
| Model | PL380 | PL480 | PL680 | PL980 |
Stereo power
1KHz 0.1%THD | 8Ω | 300W×2 | 400W×2 | 600W×2 | 800W×2 |
| 4Ω | 450W×2 | 600W×2 | 900W×2 | 1200W×2 |
| 2Ω | | 800W×2 | 1100W×2 | 1400W×2 |
Bridge power
| 8Ω | 700W×2 | 1000W×2 | 1800W×2 | 2000W×2 |
| 4Ω | | 1200W×2 | 2000W×2 | 2400W×2 |
| Signal To Noise | 103dB | 105dB | 105dB | 106dB |
| Slew Rate | 60V/us | 60V/us | 80V/us | 80V/us |
| Impedance | 400:1 | 450:1 | 500:1 | 550:1 |
| Frequency Response | +/-0.1dB,20Hz~20KHz |
| THD | ≤0.01%Rated Power@8Ω 1KHz |
| IMD | ≤0.03%Rated Power@8Ω |
| Input Sensitivity | 0dB(0.775Vrms) |
| Input Impedance | 20K/40K |
| CMRR | ≤ - 80dB |
| Input control rate | ≤ - 75dB |
| LED Indicator | One-power, -40dB, Clip/Protect |
| Output Circuitry | AB | AB | H | H |
| Weight | 17kg | 19kg | 24kg | 25kg |
| Dememsions(W*D*H) | 483*380*88mm | 483*450*88mm |
If you need more detail, please let me know, We are glad to offer our best service in the future.
