| Prod Model: |
AX-260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Input Impedance: |
20k Ohm Balanced, 11k Ohm Unbalanced |
| Frequency Response: |
20Hz-20kHz (+/-0.1dB) |
| Protection: |
Overheating, Clipping, Overcurrent, Overload, Shor |
| Stereo/Mono: |
Stereo, Mono Bridged and Connected |
| Application: |
Commercial |
| Certification: |
CE, RoHS, SGS |
Product Description

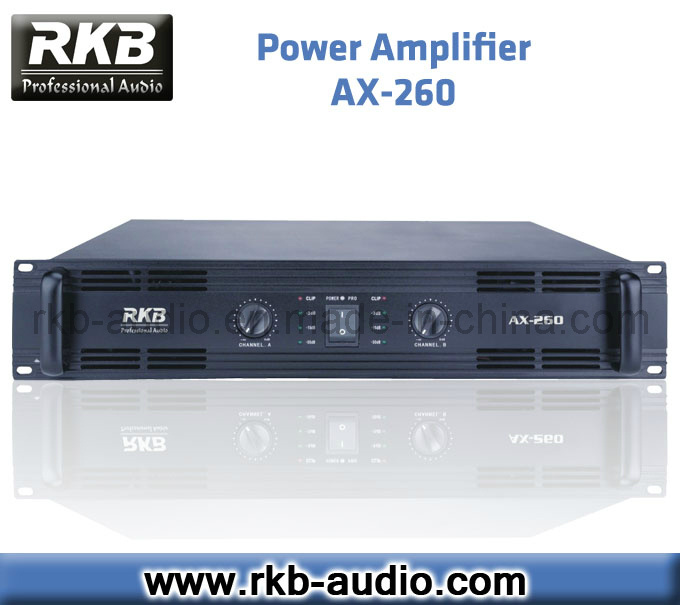

Professional Power Amplifier(AX-260)
AX series professional audio power amplifiers are with high performance and high efficiency. Its excellent audio resolution and extraordinary stability is highly recognized by all users. It adopts high integrated circuit parallel design, greatly reduces the failure rate. The advanced cooling system and low noise design, enables it to protect the power amplifier from overloading and overvoltage; Ensures the speaker equipment working stable and safely under difficult circumstance.
Applications:
*Gymnasium, Large Performance, Disco
*Pub, Nightclub, Club, KTV room etc.
Features:
*With switch buffer protection of overheating, clipping, overcurrent, overload, short circuit.
*Separation of grounding switch
*Working mode conversion ( stereo, mono bridged and connected )
*Input sensitivity selection
*The 30Hz high-pass filter
*Protecting status indication ( overheating / clipping / overcurrent / overload / short circuit )
*With soft clipping process, ensure quality of sound.
*Excellent sound quality and strong power output
*Adopting high integrated parallel circuit design, greatly reduces the breakdown rate
*Advanced cooling system and low noise design
*Professional input and output terminals
## Our main products are: PRO Audio. Including Professional Full Range Speaker / Loudspeaker; Line Array Speaker; Subwoofer / Sub-bass; Power Amplifier; Processor; Mixer; Effector; Microphone; And other Peripheral Equipment. ##
|
Stereo power (RMS/THD1%): |
8 ohms |
600W x 2 |
|
4 ohms |
900W x 2 |
|
2 ohms |
1100W x 2 |
|
Bridge power(RMS/THD1%): |
8 ohms |
1800W |
|
4 ohms |
2000W |
|
Slew rate: |
60v / us |
|
S/N Ratio: |
> 105dB |
|
Total Harmonic Distortion(THD): |
< 0.01% |
|
Intermodulation: |
< 0.01% |
|
Damping factor: |
> 500 |
|
Frequency Response: |
20Hz-20kHz, +/-0.1dB |
|
Input Sensitivity: |
0.775v /1.0v / 1.55v |
|
Input Impedance: |
20k ohms Balanced, 11k ohms Unbalanced |
|
Panel Indicators: |
Signal-Blue, Power-Blue, Peak-Red, Protection-Yellow |
|
Stereo/Mono: |
Stereo, mono bridged and connected |
|
Protection: |
Overheating, clipping, overcurrent, overload, short circuit |
|
Power Supply: |
AC 220v 50~60Hz |
|
Dimensions(WxDxH): |
483 x 418 x 88 mm / 2U |
|
Weight: |
22 Kg |
|
Frequently Asked Questions |
|
1 |
What does RKB mean? |
RKB is a Germany brand. It' s the meaning of " Reinforcement Kingdom of the Best" |
|
2 |
What are your main products? |
Our main products are: Pro Audio, including Professional Full Range Speaker/Loudspeaker; Line Array Speaker; Subwoofer/Sub-bass; Power Amplifier; Processor; Mixer; Effector; Microphone; and other Peripheral Equipment. |
|
3 |
How long is the warranty period? |
All Speakers will have two-year of warranty. Other products will have one-year warranty. |
|
4 |
What are your shipment terms? |
EX-WORK; FOB; CIF; CFR |
|
5 |
What are your payment terms? |
T/T or Western Union; 30% or 50% deposit, balance be paid before shipment. |
|
6 |
What is your packing? |
We use foam to protect the speaker cabinet, and then put it into a hard carton box. Or we are also providing flight case for customers. |
|
7 |
Can I ask for some technical assistance? |
Sure, technical advice for pro audio will be offered freely. |
|
8 |
How long will it take for you to answer my inquiry? |
Your inquiry will be answered within 24 hours. |
|
9 |
Can you do OEM/ODM? |
Yes, we could do OEM/ODM, and we will follow every tiny things required by customers. |
Thanks for reading our products so patiently. It will be our great honor to have a change to serve for your esteemed company. Please don’ t hesitate to contact us now!
