| Prod Model: |
3600VZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Watt: |
1300W |
| Gross Weight: |
41kg |
| Height: |
3u |
| Type: |
Professional Amplifier |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Output Number: |
2 |
| Sound Channel: |
2 |
| Conductive Mode: |
<0.05%@8 Ohm 1kHz 1/4po |
Product Description

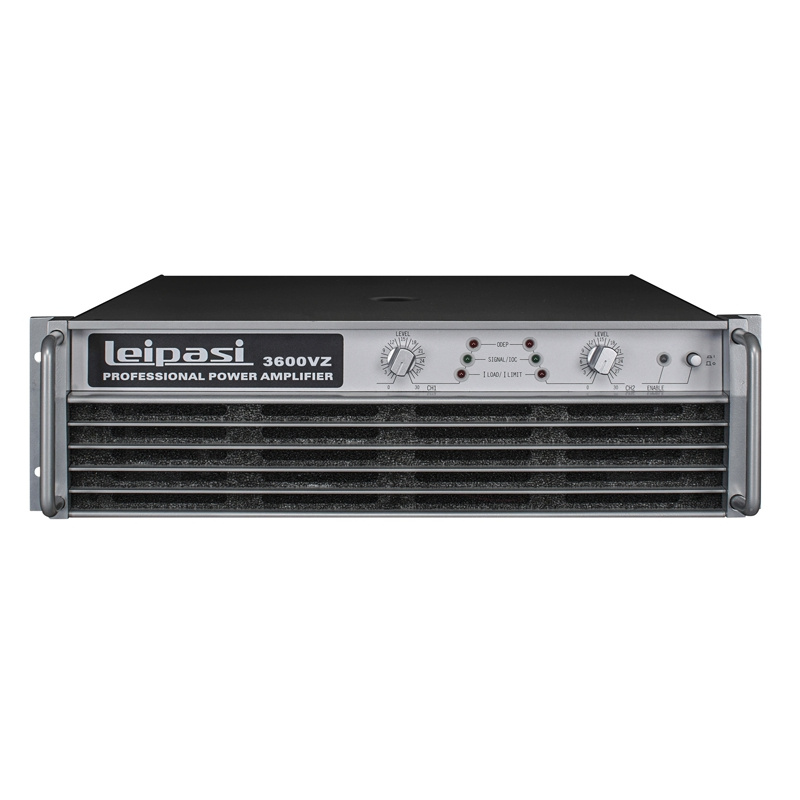

Professional Power Amplifier 3600VZ
Features
1.Professional Power Amplifier VZ series have solid crate so that it can protect the interior from outside
2.Toshiba and pure copper make the power amplifier work well
3.Stable and powerful voice
4.3U height
| Model | 1000VZ | 2000VZ | 3000VZ | 3600VZ | 5002VZ |
| Stereo power 8Ω | 2x500W | 2x800W | 2x1100W | 2x1300W | 2x1500W |
| Stereo power 4Ω | 2x800W | 2x1300W | 2x1800W | 2x1950W | 2x2350W |
| Stereo power 2Ω | 2x1000W | 2x1600W | 2x2200W | 2x2600W | 2x3000W |
| 8Ω BLT | 1500W | 2400W | 3300W | 3900W | 4500W |
| 4Ω BLT | 2000W | 3200W | 4400W | 5200W | 6000W |
| Frequency Response | 5-20K+/-0.5dB |
| THD+N | <0.05%@8Ω 1KHz 1/4Po |
| S/N Ratio | >93dB | >93dB | >93dB | >93dB | >102dB |
| Slew Ration | 20V/u S | 20V/u S | 20V/u S | 20V/u S | 32V/u S |
| Damping Factor | >300 |
| Crosstalk | >60dB@8Ω 1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Height | 2U |
| Gross Weight | 40.5KG | 42.5KG | 41KG | 43KG | 48KG |
| Packing Dimensions | 650x585x200mm |
| Our Advantage | 1.We are professional microphone factory, so we can provide the compitive price to you.
2.we focus on middle and high-end items and ensure every product made by the the superior material. we have strict quality control system to avoid quality problems.
3.There are many types you can choose ,if you have you own designed idea,we also accept the OEM order
4.Little order is availiable |
| The Sample | About the sample,buyer need to charge the sample and freight fee. |
| The Shipping | 1.Express
2.Air shipping
3.Sea shipping |
| The Lead-time | 1.Small order and sample:5-7days
2.Big order:30-45 days |
| Payment | T/T (T/T:30% deposit before producing ,the balance paid before shippment) |
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
