| Prod Model: |
MT-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Signal Transmission: |
Wired |
| Application: |
Amplify |
Product Description

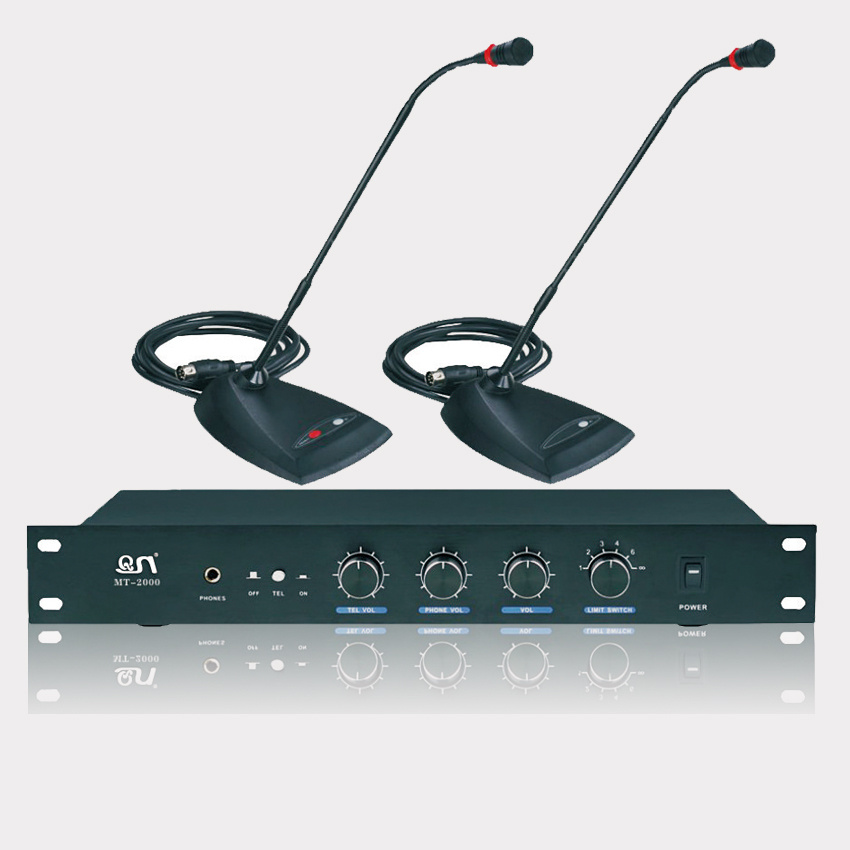

Professional multi-channel conference microphone MT-2000
Features:
MT-2000 Conference unit with two different functions of the host cell selection, can be selected according to applications.
Is a multi-functional host cell, and its connection to use the composition of the teleconference, headphones, volume control and limit their statements.
Optional "1" "2" "3" "4" "6" and "∞ " opening features a high degree of integration within the host.
Technical parameters of MT-2000
Rated voltage: AC220V ± 10% 50Hz
Frequency response: 20Hz-20KHz
Output impedance: REC: 200Ω
LINE: 200Ω
The BALANCE: 300Ω
LINE OUT: 400Ω
Signal to noise ratio: 78dB (1KHz THD1%)
Monitor Earphone output power: 2W maximum
Supply microphone power: 18VDC safe voltage
Supply microphone nominal power: 100W
System audio output: Balanced / unbalanced
Size: 485X220X62mm (19 "international standard rack)
Net Weight: 3.5KG
Chairman of the MT-200C / D / on behalf of the technical parameters
Sensor type: Capacitive
Point features: A single point of ultra-heart-shaped
Frequency response: 50Hz-17KHz
Spiritual sensitivity: -45 ± 2dB @ 1KHz
Input voltage: 18V (host unit powered)
Minimum output impedance: 1KΩ
Total distortion <3% Max SPL: 124dB
Equivalent input noise sound pressure: 24dB (A)
SNR: 68dB (A)
Data cable: 2.1m 8P shielded wire
Microphone Net weight: 1KG
Annex: Wind sponge
