| Prod Model: |
SM57 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sm57 |
| Transducer Type: |
Dynamic |
| Polar Pattern: |
Cardioid |
| Frequency Response: |
40 Hz - 15 kHz |
| Sensitivity: |
-54, 5 Dbv/PA / 1, 88 Mv/PA |
| Signal Transmission Model: |
Wired |
| Connector: |
3 Pin XLR |
| Impedance: |
150ohms |
| Net Weight: |
284G (10 Oz.) |
| Dimensions: |
1-1/4"W (Top) X 6-3/18"L X 29/32" (Bottom) |
| Style: |
Headset Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Connector(',s): |
XLR 3 Pin |
| Output Impedance: |
50-1000Ω |
| Wireless Technology: |
Non |
Product Description
Product Description:

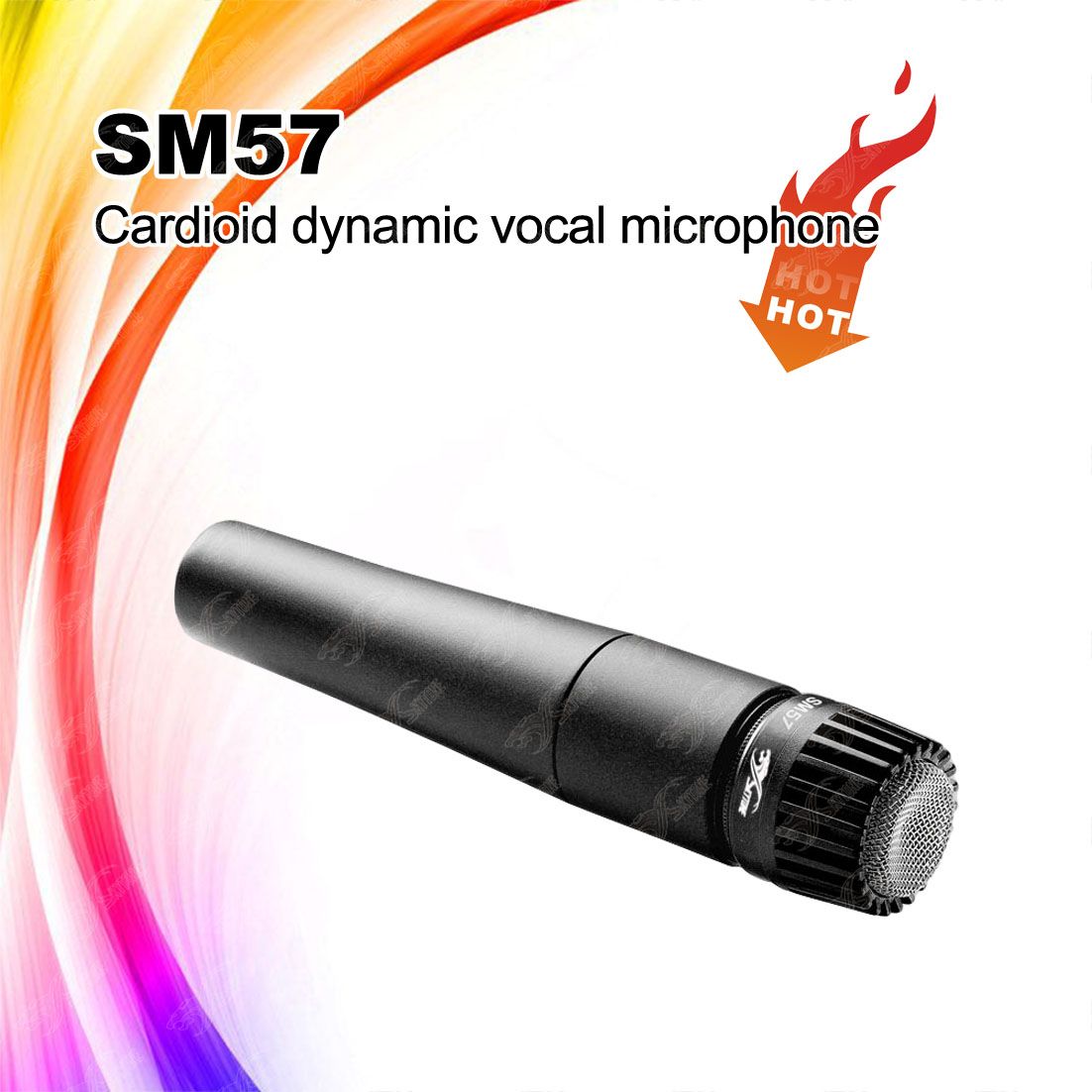

Professional Dynamic Wired Handheld Microphone Sm57
The legendary SM57 is exceptional for musical instrument pickup and vocals. With its bright, clean sound and contoured frequency response, the SM57 is ideal for live sound reinforcement and recording.
Features:
Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
Professional-quality reproduction for drum, percussion, and instrument amplifier miking
Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
Pneumatic shock-mount system cuts down handling noise
Extremely durable under the heaviest use
Frequency response: 40 to 15,000 Hz
Replacement cartridge: R57
Specifications:
SM57 Specifications |
| Type | Dynamic |
| Frequency Response | 40 to 15,000 Hz |
| Polar Pattern | Cardioid |
Sensitivity
(at 1,000 Hz Open Circuit Voltage) | -54.5 dBV/Pa (1.85 mV)
1 Pa = 94 dB SPL |
| Impedance | Rated impedance is 150Ω (300Ω actual) for connection to microphone
inputs rated low impedance |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Case | Dark gray, enamel-painted, die cast metal; matte-finished, silver
colored, spherical steel mesh grille |
| Connector | Three-pin professional audio connector (male XLR type) |
| Net Weight | 284grams |
| Dimensions | 162 mm (6-3/8 in.) L x 51 mm (2 in.) W
|
