| Prod Model: |
DP24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Digital Audio Processor: |
Digital Audio Processor |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| Monitor: |
LED Screen |
| THD: |
<0.03% |
| Noise: |
85 Db |
| Speaker System: |
4 Channels |
Product Description

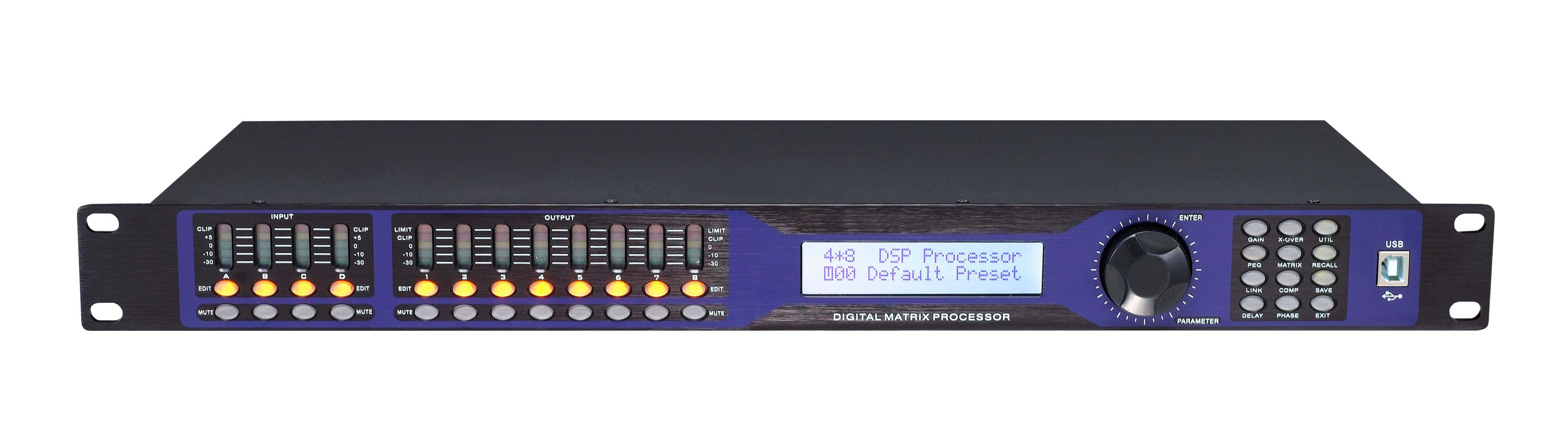

General information:
| 2 In X 4 Out Speaker Processor can connect with PC .consist of four inputs and eight outputs. It shall utilize 32-bit double-precision fixed-point DSP filtering with 24 bit, 48kHz, 128X oversampling delta-sigma A/D and D/A converters. Digital processing includes Gain, Parametric EQ, Shelving Filters, Time Delay, Crossover Functions, Compression, Limiting, and Matrix Routing. |
Specification
| Input connector: | 2* Female XLR |
| Output connector | 4* male XLR |
| Input impedance | 20KΩ |
| Output impedance | 100Ω |
| Easy handling | can connect with PC, USB inputs ( front panel) and two RS-485 inputs( rear panel) |
| Input level | ≤+25dBu |
| Frequency response | 20Hz-20KHz(-0.5dB) |
| Interchannel Crosstalk | >110dB |
| THD | <0.01% OUTPUT=0dBu/1KHz |
| Dynamic Range | >110dB(1KHz) |
| Processor | 192KHZ Linked Stereo DSP Processing for ease of use , 32 bit DSP processing, -24-Bit A/D and D/A performance |
| Power Requirements: | ≤25 WattsOperating Voltage: AC110V/220V 56/60 Hz, |
| Packing | 562 x 362 x 9mm |
| Weight | 4.6kgs |
*1. 96kHz sampling rate, 32-bit DSP process, 24-bit AD/DA convert
2 . Input processing includes Gain, Mute, LINK, high-cut, low-cut, 8 PEQ, noise gate, Phase, Delay and so on.
3. Output processing includes crossover, 9 PEQ, Gain, Mute, Compressor/ Limiter, Phase, Delay, link and so on.
4. All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEQ, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2
5. All inputs / outputs can do Matrix.,and all the input and output channel name can be changed
6 All the input and output with independent phase curve adjust function, PEQ style choose ALLPASS1 is 180. Curve adjust,,ALLPASS2 is 360. Curve adjust
7 All high cut, low-cut filter , crossover type can be select by Butterworth,Link witz-Riley,Bessel, slope can be chosen from -6dB/Oct to -48dB/Oct
8 Compressor/ limiter threshold, ratio , attached time and released time can be adjustment for inputs
9. Maximal delay time 680ms for all input/out channels.
10. Pre settings can copy for every single channel, every channel can do link adjust
11. every input and output channel PEQ curve adjusting picture can be found when you are in any input and output
12. Inside single generator (pink, white noise and 20~20K sine wave, amplitude adjustable )
13. Front panel has level indicator for input/output ,USB port, RS232,485 and net ports remote control at rear panel. Easy for user's operations.
14. 32 user presets can be save and recall, maximal 256 units can be link together via ID settings. Password protection function for high level applications.
