| Prod Model: |
P12 |
| Frequency Response: |
60Hz-18kHz(±3dB) 50Hz-20kHz(-10dB) |
| Nominal Cverage: |
50-100°(H) 55°(V) Constant Directivity |
| Sensitivity: |
96dB Spl |
| Power Rating: |
400W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
122dB(Continuous) 128dB(Peak) |
| Drivers: |
Lf 1X12" Rubber Edge Woofer Hf 1X44mm Driver |
| Dimensions (Hxwxd): |
576X372X384mm |
| Weight: |
23kg |
| Service: |
OEM/ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Certification: |
SGS |
| THD: |
>0.01% |
| Application: |
Touring Performance, Stadium, Theatre |
| Monitor: |
None |
Product Description

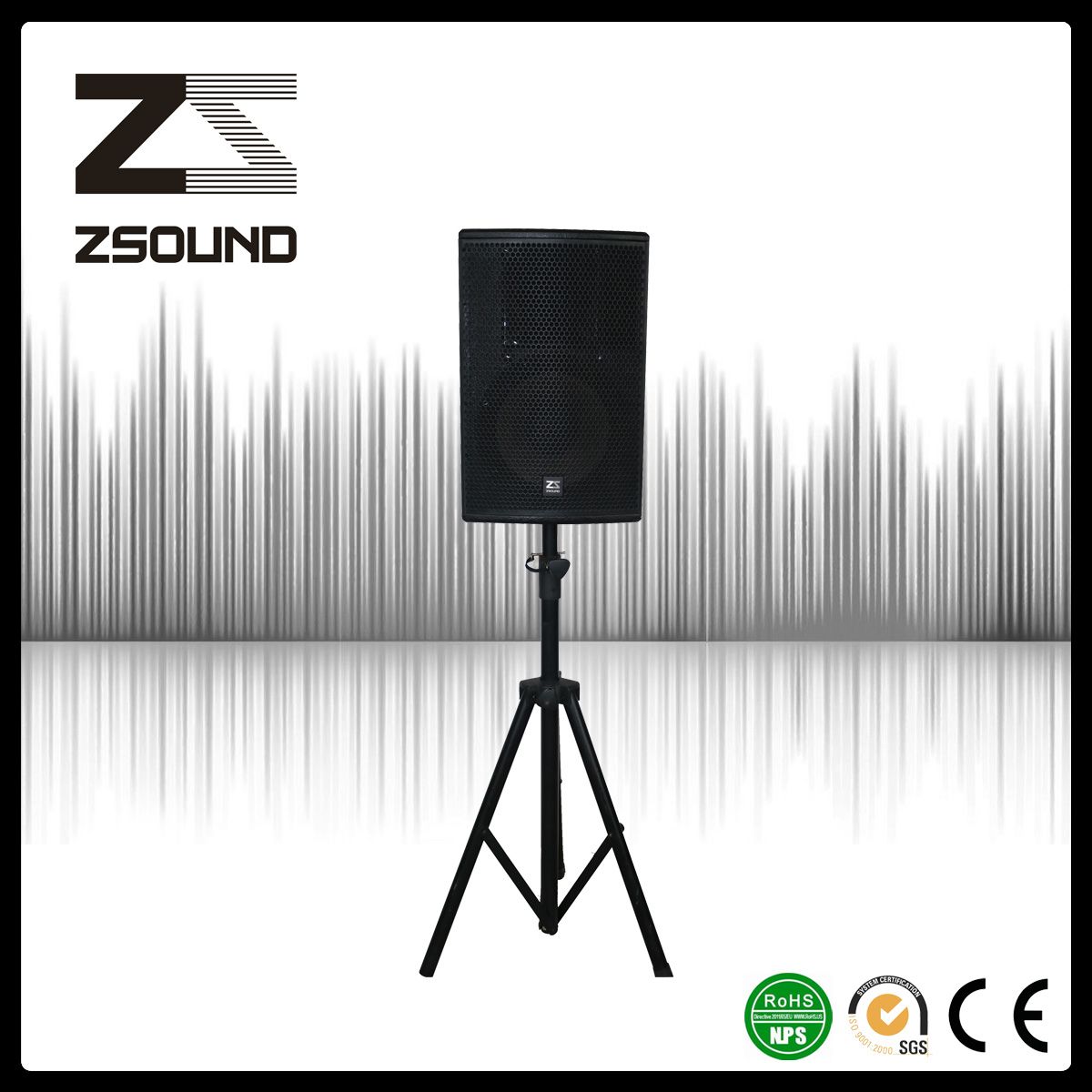

professional cabinet speaker audio system
ZSOUND P12 is a medium scale two-way passive system, utilizing the latest Phase control technology,
with bandwidth ranges from 50Hz to 20KHz. Combining with SB series subwoofer,
the frequency response will extend to 32Hz.
The enclosure features a 12"LF driver and a 44mm (diaphragm) HF compression driver mounted on a constant directivity horn,
with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
P12 consist of an adoptive crossover network, the given design would ensure the two drivers work together appropriately and perfect.
Feature:
Frequency response special design to avoid auditory fatigue
Rotatable and asymmetrical horn
13xM8 rigging points
Pole mount socket
Applications:
Bar
Theatre
Stage monitor
| TECHNICAL SPECIFICATION |
| FREQUENCY RESPONSE: | 60Hz-18KHz(±3dB) 50Hz-20KHz(-10dB) |
| NOMINAL COVERAGE(-6dB): | 50°~100° (H) 55° (V) Constant directivity |
| SENSITIVITY (@1w/1m): | 96db SPL |
| POWER RATING(AES): | 400W |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 122dB (continuous) 128dB(Peak) |
| DRIVERS: | LF 1 x 12"woofer(75mm voice coil) woofer HF 1×1.75" (44mm voice coil) compression driver |
| |
| PHYSICAL DATA |
| DIMENSIONS (H x W x D): | 576 x 372 x 384mm |
| WEIGHT: | 23kg |
| CONNECTORS: | 2 x NL4MP Neutrik connectors |
| SPEAKER CABLES: | 1+1- |
| MATERIALS: | 18mm,24mm birch plywood |
| FINISH: | Black epoxy mesh grille acoustically reticulated foam |
| GRILLE: | |
Our Advantages:1) Global leading professional Manufacturer of professional speaker and amplifier.2) Product quality: Superior speaker and amplifier, top technology and quality.3) Certificate: CE,RoHS,GS,SGS,ISO90014) Monthly Production Capacity: 2000pcs5) Fast delivery: Get your order when you need it.6) 4000 square meters workshop, with about 200 workers and 20 professional engineers7) Convenient Transportation: 1 hour to Baiyun Airport8) 24 hours on line service.
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
