| Prod Model: |
WTG07-WSD02BLACK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
2400-2483MHz |
| Frequency Response: |
20~20k (+/1dB) |
| Sampling Ratio: |
64k@16bit * 2 |
| Modulation: |
Gfsk |
| Features: |
Supporting Over 100 Classrooms |
| Function: |
High Anti-Interference |
| Application Demo: |
Classroom/Church/PA System |
| Style: |
Handheld Microphone |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
TRS 3.5 mm |
| Wireless Technology: |
DSP Digital |
| Output Impedance: |
50-1000Ω |
Product Description

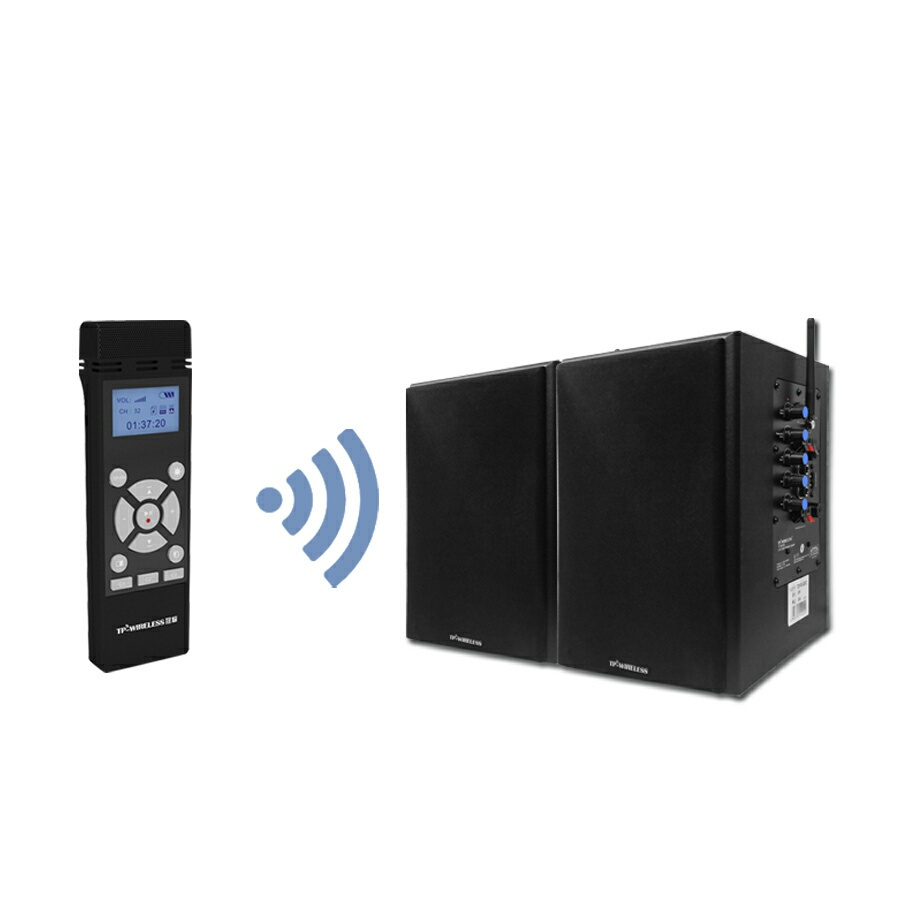

Features of the system:
1.2400MHz-2483MHz is an ISM frequency band which is legal and free all over the world. 120 selectable frequencies can support more than 100 rooms using at the same time without crosstalk.
2. Humanized Multi-room simultaneous using solution: 1-3 meters paring distance, more than 10 meters using distance. Each microphone can use in any room installed with TP-WIRELESS speaker without crosstalk. Every teacher can have their personel microphone and use it in any classroom.
3. The transmit frequency is automatically and synchronously set by the receiver (main speaker).
4. Choices of installation: mounting with tripod, hanging on wall, or putting on the table directly. We provide the mounted plates as the installation accessories, you can also complete the installation work according to the instructions.
Features of the speaker:
1. High quality wooden speaker housing and advanced audio circuitry design features natural and distortion-free sound.
2. Stereo left and right speakers, maximum output power is up to 60W.
3. Broadcasting Audio Input socket for convenient connection with signal from campus broadcasting or DVD, etc.
4. RCA audio Input function meets the demands of multimedia teaching.
5. Fuse Socket makes the equipment is safe enough for any application.
Features of the wireless microphone:
1. The microphone supports hold by hand, belt-clip and neck-hanging
2. Unique flexible lanyard, convenient for teacher to hang on neck with hand-free. Especially suitable for female teacher wear suit without pocket and belt.
3. It can realize PPT paging function with a USB dongle, plug and play. Best choice for multi-media classroom and multi-media conference room.
4. It has a build-in laser pointer in the microphone; it can act as a laser-electronic ferule.
5. The microphone powered by a rechargeable Lithium Battery. (the continuous playtime is up to 8 hrs), USB charge interface.
6. Channel, Volume, Power, Charging status can be shown on the LCD.
7. Mute function automatically when no signal and week signal
8. Elegant and durable metal alloy housing for transmitter.
Technical Parameters:
Frequency Range: 2400MHz-2483MHz
Frequency Response: 20Hz-20KHz
Playtime of Transmitter): >8hrs
Guatantee Operating Range: 15meters
Power Supply: AC100V-AC240V
Output Impedance: 4Ω
Latency Time: 1.1-2ms
SNR: 89dB
Distortion: 1.5%@1KHz
Output Power: 60W(2*30W)
Dimensions: 495mm*345mm*275mm
Weight: 9.68Kg
Packing list for one set:
1*Main speaker
1*Deputy speaker
2*Mounted plates
1*Wireless microphone
1*USB dongle
1*Headset microphone
1*Flexible Lanyard
1*3.5mm stereo to RCA stereo cable
1*3 meters speaker cable
(This cable is used to connected main speaker and deputy speaker, if you need a longer speaker, please leave us a message)
1*Power adapter for microphone
1*Power line for speaker
(US/EU/UK standard depends on your shipping address, if you have a special demand, please leave us a message)
