| Prod Model: |
AGP3400-S1-D24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
Input and Output |
| Screen Size: |
≤17" |
Product Description

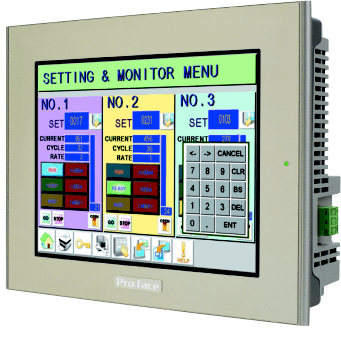

Proface Touch screen AGP3400-S1-D24
7.5-inch/S Class/TFT Color/DC/VGA/8MB
Functional Specification:
Class S Class
Display Type STN Color LCD
Display Colors 4, 096 Colors
Backlight CCFL (Service life: 54, 000 hrs. At 25oC and 24 hr. Operation)
Display Resolution 640 x 480 pixels
Effective Display Area 153.7mm x 115.8mm
Brightness Control 8 levels of adjustment available via touch panel
Contrast Adjustment 8 levels of adjustment available via touch panel
Language Fonts Japanese: 6962 (JIS Standards 1&2)(including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified and traditional Chinese fonts are downloadable. )
Text Composition:
Character Sizes Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 DOT fonts, Stroke font: 6 to 127 DOT fonts (Full-size character: 12 to 254 DOT fonts)
Font Sizes Standard font: Width can be expanded up to 8 times.
Height can be expanded up to 8 times *1
Text:
8 x 8 dots 80 Char. X 60 rows
8 x 16 dots 80 Char. X 30 rows
16 x 16 dots 40 Char. X 30 rows
32 x 32 dots 20 Char. X 15 rows
Memory:
Application 8MB FLASH EPROM *2
Data Backup 320KB SRAM *3
Touch Panel:
Type Resitive Film (analog)
Resolution 1024 x 1024
Control Memory:
Variable Area 64 KB SRAM (uses lithium battery) *3
Program Area 132 KB FLASH EPROM
Interface:
Serial Interface (COM1):
Asynchronous Transmission: RS-232C/422/485 *4,
Data Length: 7 or 8 bits,
Stop Bit: 1 or 2 bits, Parity: None, Odd or Even,
Data transmission speed: 2400bps to 115.2kbps, Connector: D-SUB 9pin male
Serial Interface (COM2):
Asynchronous Transmission: RS-422/485, Data Length: 7 or 8 bits,
Stop Bit: 1 or 2 bits, Parity: None, Odd or Even,
Data transmission speed: 2400bps to 115.2kbps (MPI: 187.5kbps *5),
Connector: D-SUB 9pin female
Ethernet Interface: IEEE802.3u, 10BASE-T/100BASE-TX, modular jack connector (RJ-45)
Expansion Unit Interface: Expansion Unit Interface (external/internal)
USB Interface USB1.1 Host I/F, USB TYPE-A connector x 1
CF Card Interface CF Card Slot (TYPE-II) x 1
Sound Output Interface: Speaker Output 70mW(Rated Load: 8Ω , Frequency: 1KHz),
Connector: Two piece type terminal block
AUX Input/ Output Interface: [AUX Output] Alarm Output, RUN Output, Buzzer Output,
Rated Voltage: DC24V, Rated Current: 50mA,
[AUX Input] Remote Reset Input, Input Voltage: DC24V, Input Current: 6mA,
Operating Voltage: (When ON) DC9V or more, (When OFF) DC2.5V or less
