Model: EVP-X12 |

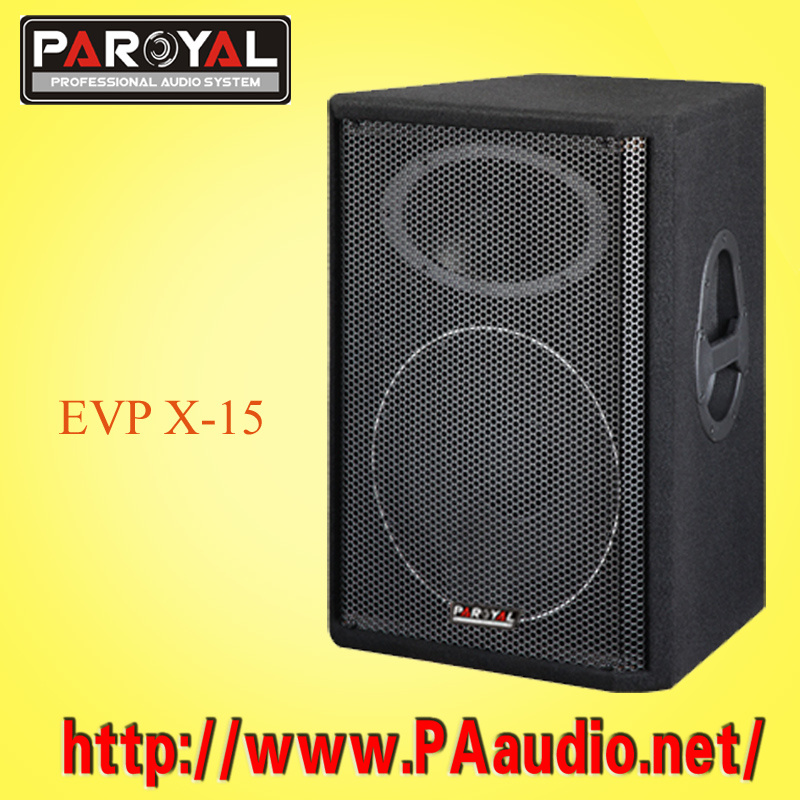

Model: EVP-X15 |
12 inch, two-way, bass-reflex, main PA/monitor applications |
15 inch Two-Way Bass Reflex, Main PA Applications |
Power Rating: 400W/1600W(Peak) |
Power Rating: 400W/1600W(Peak) |
Frequency Range: 60Hz-20kHz |
Frequency Range : 52 Hz - 20 kHz |
Sensitivity: 96dB SPL |
Frequency Response : 65 Hz-20kHz |
Frequency Response: 90Hz-20kHz |
Sensitivity : 98dB |
Nominal Impedance: 8 ohms |
Nominal Impedance : 8 ohms |
Rated Maximum SPL: 96dB SPL continuous |
Rated Maximum SPL : 110 dB SPL peak |
Coverage Pattern: 90o x 45o nominal |
Coverage Pattern : 90o x 45o nominal |
High Frequency Driver: 1x34.4 mm(1.5inch)diaphragm, |
High Frequency Driver : 1 x 44.4 mm (1.75 inch) diaphragm |
Low Frequency Driver: 1x310 mm(12inch)woofer |
Low Frequency Driver : 1 x 380mm(15 inch) woofer |
Model: EVP-X15M Monitor Speaker |
Model: EVP-X215 |
15 inch Two-Way Bass Reflex, Main PA Applications |
Dual 15 inch, Two-Way Dual Chamber, Bass Reflex, |
Power Rating: 400W/1600W(Peak) |
Main PA Full Bandwidth Applications |
Frequency Range : 52 Hz - 20 kHz |
Power Rating: 800W/3200W(Peak) |
Frequency Response : 65 Hz-20kHz |
Frequency Range: 40Hz-20kHz |
Sensitivity : 98dB |
Frequency Response: 57Hz-20kHz |
Nominal Impedance : 8 ohms |
Sensitivity: 100dB SPL |
Rated Maximum SPL : 100 dB SPL peak |
Nominal Impedance: 4 ohms |
Coverage Pattern : 90o x 45o nominal |
Rated Maximum SPL: 115dB SPL Peak |
High Frequency Driver : 1 x 44.4 mm (1.75 inch) diaphragm |
Coverage Pattern: 90ox45o nominal |
Low Frequency Driver : 1 x 380mm(15 inch) woofer |
High Frequency Driver: 1x44.4mm(1.75inch)diaphragm |
|
Low Frequency Driver: 2x380 mm(15inch) woofer |
Model: EVP-X15B |
Model: EVP-X18B |
18 inch. Bass-Reflex Subwoofer, Super Compact with Top Pole |
Dual 18 in. Bass-Reflex Subwoofer, High Power, |
Mount for Satellite Speaker Mounting |
Vertical Orientation for Stacking Full-Range Systems |
Power Rating: 400W/800W(Peak) |
Power Rating : 600W/1000W(Peak) |
Frequency Range: 40Hz-200Hz |
Frequency Range : 35 Hz-250 Hz |
Frequency Response: 45Hz-200 Hz |
Sensitivity : 103dB SPL |
Nominal Impedance: 8 ohms |
Frequency Response: 40Hz-250 Hz |
Sensitivity: 100dB SPL |
Nominal Impedance: 8 ohms |
Rated Maximum SPL: 98dB SPL |
Rated Maximum SPL: 139dB SPL |
Low Frequency Driver: 1x380 mm(15inch) Woofer |
Coverage Pattern: 70o x45 nominal |
|
Low Frequency Driver : 1x 460 mm(18 inch)woofers |
Paroyal Pro audio Co., Ltd |
|
Professional audio system |
|
Pro speaker, EVPX Series |
|
EVPX-12 speaker, EVPX-15 Pro Sound, EVPX-15M |
|
EVPX-215 Pro audio speaker, |
|
EVPX-15B Sub woofer speaker, |
|
EVPX-18B Sub woofer speaker |
|
