| Prod Model: |
SRX725 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Dual 15inch, 2-Way Speaker |
| Frequency Response: |
53Hz -- 20kHz |
| Dispersion (Hxv): |
75 X 50 |
| Handling Power: |
1200watts (RMS) / 2400watts (Peak) |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.03% |
Product Description

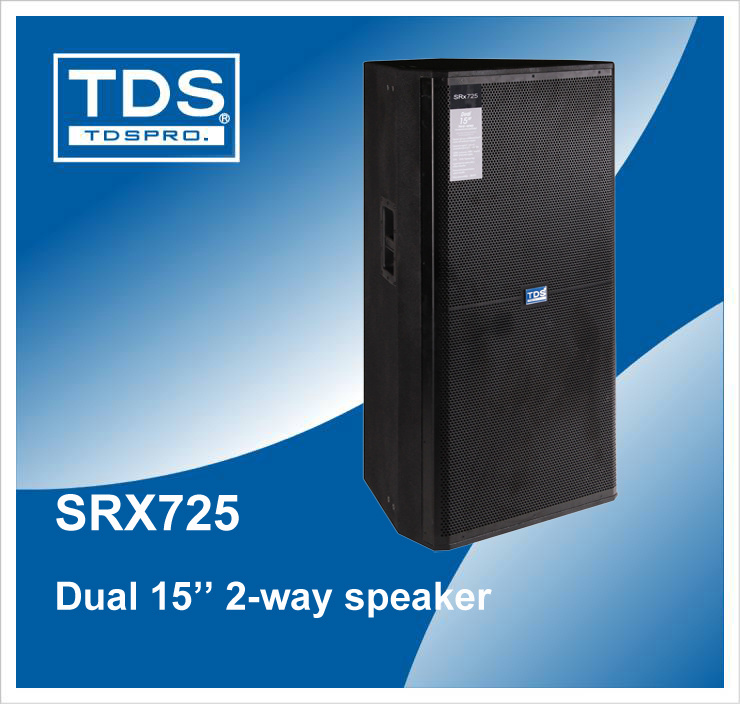

PRO Audio Speaker SRX 725
For the ultimate in performance and simplicity, a pair of SRX725 and a single, high power amplifier delivers superb high-level music and powerful bass. The high quality woofer and 75'' voice coil compression driver provide smooth, clear mids and highs. Despite the performance, the SRX725 weighs only 45kgs.
Features
Light-weight and high-power output.
Dual 100 voice coil differential woofer for extended low-frequency output.
75 ° X 50° Coverage.
PRO Audio Speaker
Applications
Live performance for both indoor and outdoor.
Drum monitor.
Nightclub installations.
SPECIFICATION |
| System Type | 2 x 15inch passive speaker. |
| FrequencyResponse | 53Hz-20kHz ± 3dB |
| Sensitivity(1W/1M) | 99dB. |
| Impedance | 4 ohm |
| Rated Power | 1200W(AES), 4800W (PEAK). |
| Dispersion | 75° (H) X 50° (V) |
| Drivers | LF driver 2 x 15' ' transducer (100mm) voice coil |
| HF driver 1.5' ' exit (75mm) voice coil |
| Maximum SPL | 136dB |
| Connectors | 2 x Neutrik NL4. |
| Dimensions | (W) 541mm x (H) 1219mm x (D) 508mm |
| Weight: | 45kg. |
Why choose TDS products. 1. Raw material quality gurantee, ensure the products durability.The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil. 2. Delivery the products on time.For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days. 3. After-sale service commitmentWhen the products had the technical problems during usage, we will give timely answer.We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time. 4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old. Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
