| Prod Model: |
MF10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Impedance: |
8 Ohm |
| Power Capacity: |
300W (RMS) 600W (Peak) |
| Configuration: |
1x10"+1x2"+ Horn |
| Certification: |
CE |
| Application: |
Commercial |
Product Description
Munson Audio Product Ranges: Line Array Systems (passive and active), Power Amplifier (analogue, switching power, digital), Loudspeakers, Coaxial Speakers, Active Sound System, DSP Management, DJ Equipments, Sound-related or music-related PRO Sound Products, etc.
Fetures:
* High performance, wide-bandwidth
* Rotatable horn
Discription:

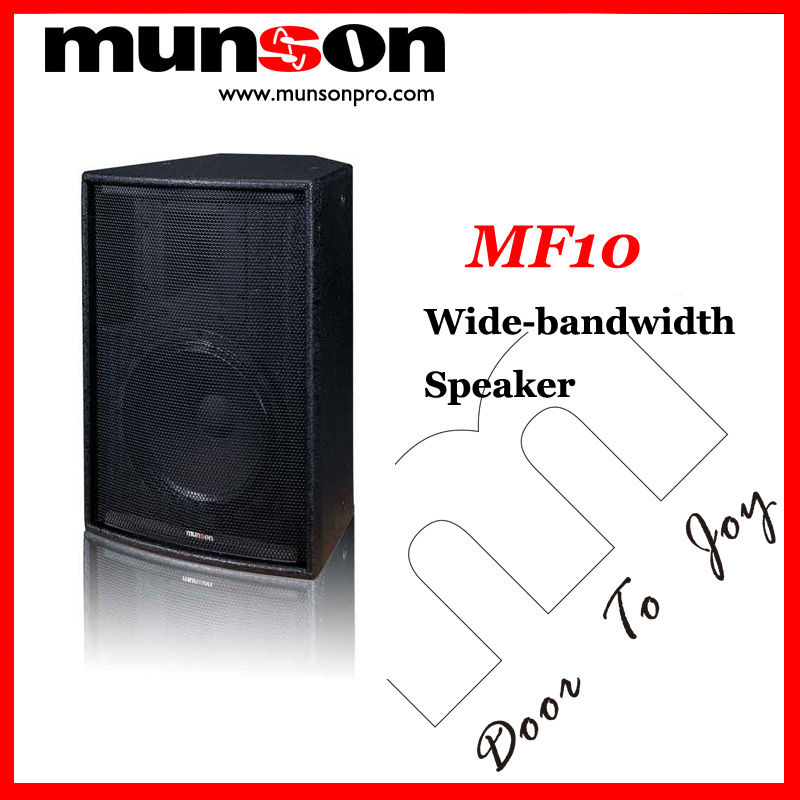

The high power MF is a high performance, wide-bandwidth system in a compact and efficient package. There are three model, MF10 10", MF12 12", MF15 15" and the MF15 extended frequency response is provided by a new 15" LF driver and a new 3" exit compression driver mounted on a rotatable 80° X 50° Constant directivity HF horn. The whole MF line drivers features a tough, water resistant cone and a lightweight, high BL, while the special designed coil windings for improved heat transfer. An aluminum demodulating ring reduces distortion and improves midrange clarity at high levels and increased excursion is available via a triple roll surround and deep motor structure. The crossover design and LF cone profile have been optimised to match the directivity of the HF horn and LF section through the crossover region. The MF line sounds full of warm and power, it's your ideal choice for club and live performance.
|
Speaker Type |
2-way passive full range loudspeaker |
|
Configuration |
1x10" +1x2" + Horn |
|
Operating range |
55Hz-20 KHz |
|
Nominal Impedance |
8Ω |
|
Power Capacity |
300W (RMS) 600W (Peak) |
|
Sensitivity (1W/1M) |
103dB |
|
Max. SPL |
127dB |
|
Dispersions |
90º H× 50º V |
|
Horn Exit (dia. ) |
1" (25mm) |
|
Voice coil |
2 " (44mm) |
|
Crossover frequency |
1.8KHz |
|
Dimensions HWD(mm) |
500× 350× 320 |
|
Shipping HWD(mm) |
565× 450× 410 (0.10CBM) |
|
Weight |
16.5/18.5 (NW/GW kg) |
Munson Audio Product Ranges: Professional Audio Equipments, Loudspeakers, Subwoofers, Coaxial Speakers, Line Arrays Systems (passive and active), Power Amplifiers (analogue, switching power, digital), , Active Touring/Mobile Sound Systems, DSP Management, DJ Equipments, Sound-related or music-related PRO Sound Products, etc.
Munson Audio also provides service for installation, acoustical building plan and supply full line products.
