| Prod Model: |
CC15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Professional Stage Monitor |
| Size: |
580*438*407 Mm |
| Color: |
Black |
| Service: |
OEM/ODM |
| Wood Material: |
Brich Plywood |
| Woofer: |
15 Inch |
| Applications: |
Club, Disco, KTV |
| Quality: |
High |
| MOQ: |
1 PCS |
| Certificate: |
CE, RoHS, SGS |
| Certification: |
CE |
| Application: |
Performance |
| Noise: |
99dB |
Product Description

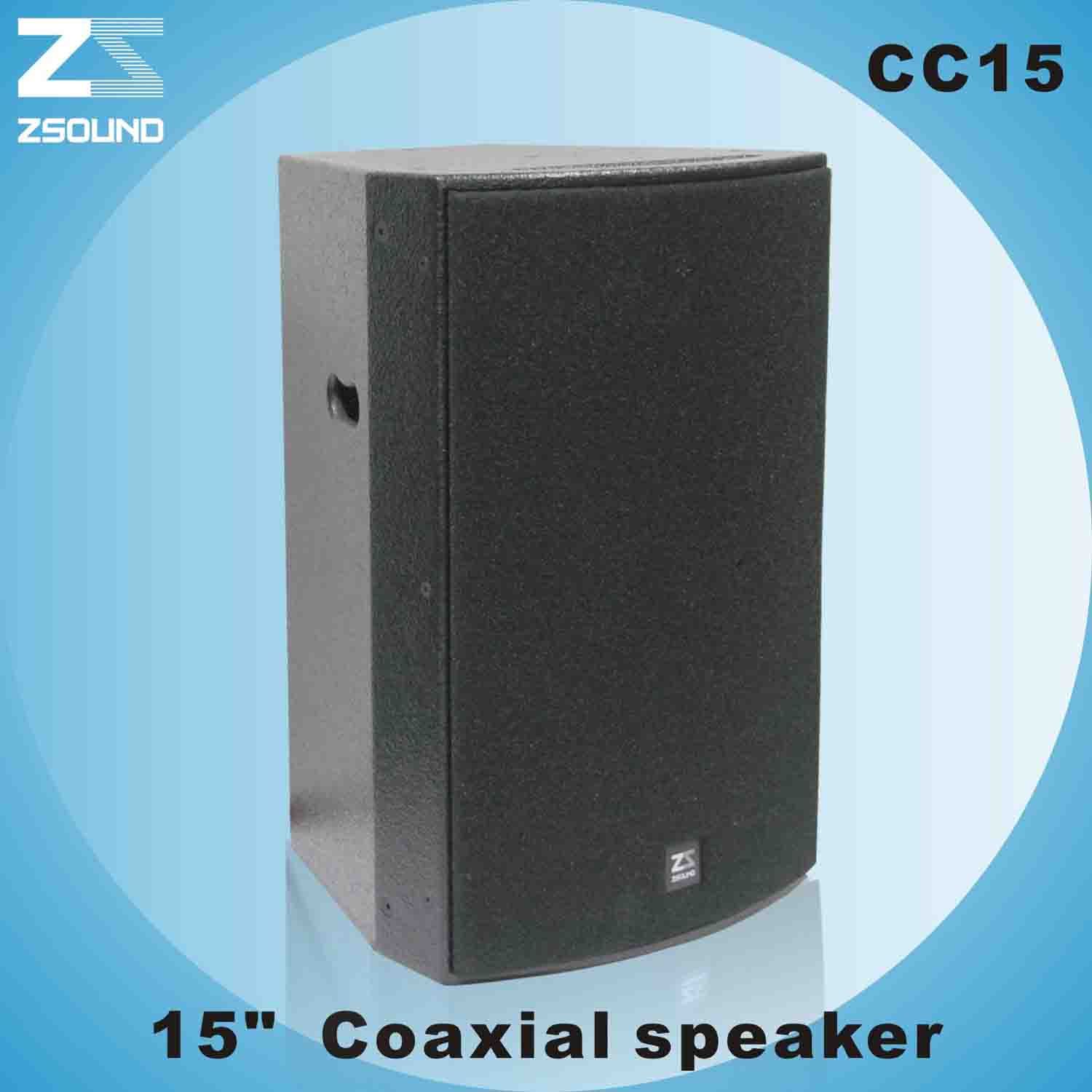

PRO audio powered speaker
By strict choosing European sophisticated drivers with high transient response, then collocate an excellent high frequency 44mm HF driver with a low vibrate high sensitivity LF driver. And choose higher tuned frequency & suitable volume to get ultra-low group delay, quickly repeat each transient detail effectively. That makes the CC15 fit for high acoustic quality application very well...
The enclosure consists of a 15 LF driver and a 44mm composite aluminum diaphragm HF compression driver. The voice coil of LF driver is 75mm, and the speaker frame is made of aluminum. The coverage of the HF horn is 80° , and the angle of trapezoid enclosure at two sides is 20° . The rotatable horn allows the near-ceiling mounting and aiming easy in the venues with restricted height. CC15 provides 6 PCS M8 flying tracks used for fixed installations or hanging and angle modulation in touring performance. The enclosure is configured with a 35mm speaker stands at the bottom.
Applications:
Club and disco
KTV
Feature:
Excellent transient and ideal impulse response
Coaxial structure, consistent accoustical image.
|
TECHNICAL SPECIFICATION |
|
FREQUENCY RESPONSE: |
55Hz-18KHz(± 3dB) 45Hz-19KHz(-10dB) |
|
NOMINAL COVERAGE (-6dB): |
80 ° ( H ) 80 ° (V)Constant directivity |
|
SENSITIVITY(@1w/1m): |
HF: 108dB SPL LF: 99dB SPL |
|
POWER RATING (AES): |
HF: 60W LF: 450W |
|
NOMINAL IMPEDANCE: |
HF: 8 Ohm LF: 8 Ohm |
|
MAXIMUM SPL: |
126dB (continuous) 132 dB (peak) |
|
DRIVERS: |
LF 1 x 15" (75mm voice coil)woofer;
HF 1 x 1.75" (44mm voice coil) compression driver |
|
|
|
PHYSICAL DATA |
|
DIMENSIONS(H x W x D): |
580 x 438 x 407mm |
|
WEIGHT: |
22kg |
|
CONNECTORS: |
2 x NL4MP Neutrik Speakon connectors |
|
SPEAKER CABLES: |
1+1- |
|
MATERIALS: |
15mm, 18mm oaken plywood |
|
FINISH: |
Black water paint |
|
GRILLE: |
Black epoxy mesh grille with acoustically reticulated foam |
