PRO Audio Multi-Frequency and Fashion Shyle UHF 4-CH Wireless Microphone
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
U9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Recever Size: |
480*210*50 Mm |
| Application: |
Show and Classroom So on |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
| Connector(',s): |
XLR 3 Pin |
| Style: |
Headset,Gooseneck,Handheld |
| Directivity: |
Super Heart -Shaped Directivity |
Product Description
Our factory specializing in the production of Conference Wireless Microphones, Karaoke Wireless Microphones, Performance Wireless Microphone, Wireless Microphone and other sound equipment etc.
We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!Product Model: U9

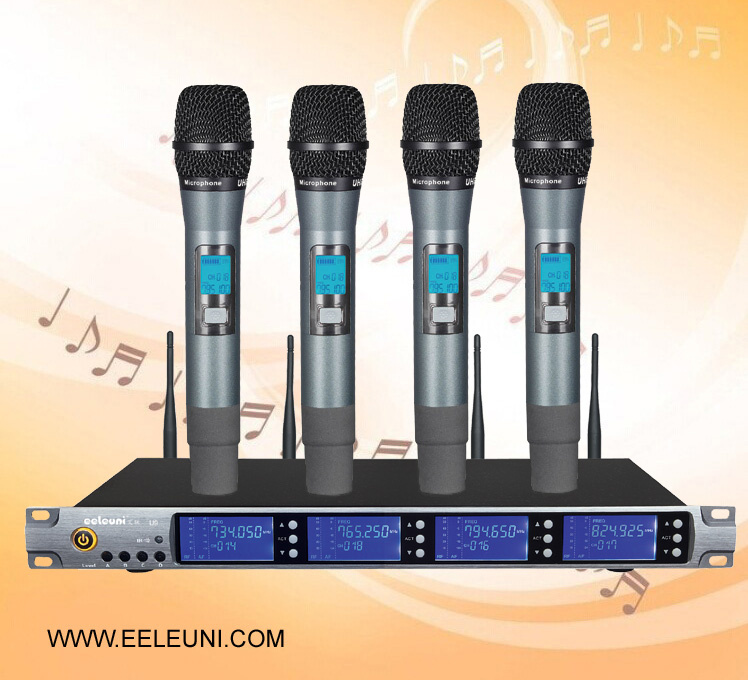

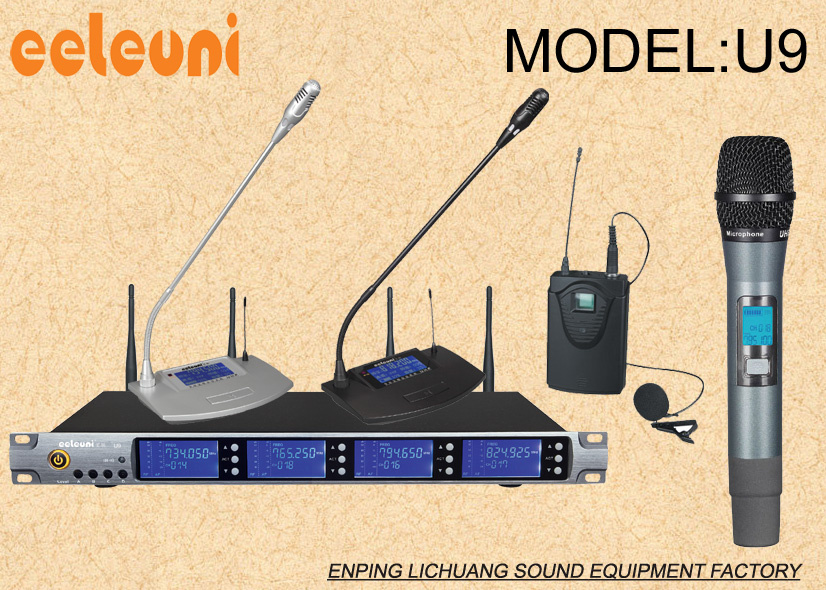

Multi-Frequency and Fashion Shyle UHF 4-CH Wireless Microphone
Product Description
-- There are 4 channels in one receiver, can supply 4 transmitters to use.
-- 99 selectable frequencies in each channel.
-- It can use 4 receivers in the same place; it means 16 transmitters can be used at the same time.
-- The front panel of the receiver is provided with a power supply indicator lamp and the signal lamp which can reflect the working status clearly.
-- Using 4 card antennas for receiving.
-- Using distance is 80 meters in the perfect place.
Note: This UHF receiver can match all UHF transmitters, you can choose by yourself optionally (except T13 only for M5 and T3A only for E3).
Specification| Receiver |
| CarrierFrequency Range | UHF 730-850 MHz |
| Frequency Stability | ±0.001% |
| MaxDeviation Range | ±50KHz |
| Modulation Mode | FM |
| S/N Ratio | >105dB |
| T.H.D | <0.5%@1KHz |
| Sensitivity | 1.2/UV@S/N=12dB |
| Power Supply | DC 14V 800mA |
| Audio Output | Independence: 0-400mV
Mixed Style: 0-300mV |
|
|
| Transmitter |
| Oscillation Mode | PLL Synthesized |
| CarrierFrequency Range | UHF 730-850 MHz |
| Frequency Stability | ±25KHz |
| Power Supply | DC 3V (1.5V AA*2) |
| Power Consumption | 100mA |
| S/N Ratio | >105dB |
| F/N Ratio | >80dB |
| DynamicRange | ≥100dB |
| Type | Condenser / Dynamic |
| Polar Mode | Super Heart-Shaped Directivity |
| Frequency Response | 40Hz – 20KHz |
| Sensitivity | -47±3dB@1KHz |
| TemperatureRange | -10 centigrade to +40 centigrade |
Packaging List:(1) 1 receiver
(2) 4 transmitters
(3) 1 singal cable
(4) 4 antennas
(5) 8 batteries (1.5V)
(6) 1 adaptor
(7) 1 manual
Li Chuang Sound Equipment Factory is located in Enping city--the base of microphone production of China, Guangdong Province. Our company is founded in 2006. We are a high-tech enterprise which combined with the design, development, production, sales and after-sale service. Our company specializing in the production of wireless microphones, wireless receiver and other sound equipment etc.
Our professional technology is leading in the same industry. Through several years of unremitting efforts, our company had developed more than 30 products, and gained many national patents. Our products are hot-selling domestic and abroad. The quality of our products has got the affirmation from customers.
Our company has a mature experience of OEM and ODM. We take"Technique Advanced, Explore Bravely, Quality First and Customers Superior"as the principle to provide the best products and service for customers. We sincerely welcome the worldwide clients to consult the cooperation and create mutually beneficial business relationship in the future.
