| Prod Model: |
P12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
60Hz-18kHz(±3dB) 50Hz-20kHz(-10dB) |
| Nominal Cverage: |
50-100°(H) 55°(V) Constant Directivity |
| Sensitivity: |
96dB Spl |
| Power Rating: |
400W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
122dB(Continuous) 128dB(Peak) |
| Drivers: |
Lf 1X12" Rubber Edge Woofer Hf 1X44mm Driver |
| Dimensions (Hxwxd): |
576X372X384mm |
| Weight: |
23kg |
| Service: |
OEM/ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Certification: |
SGS |
| THD: |
>0.01% |
| Application: |
Touring Performance, Stadium, Theatre |
| Monitor: |
None |
Product Description

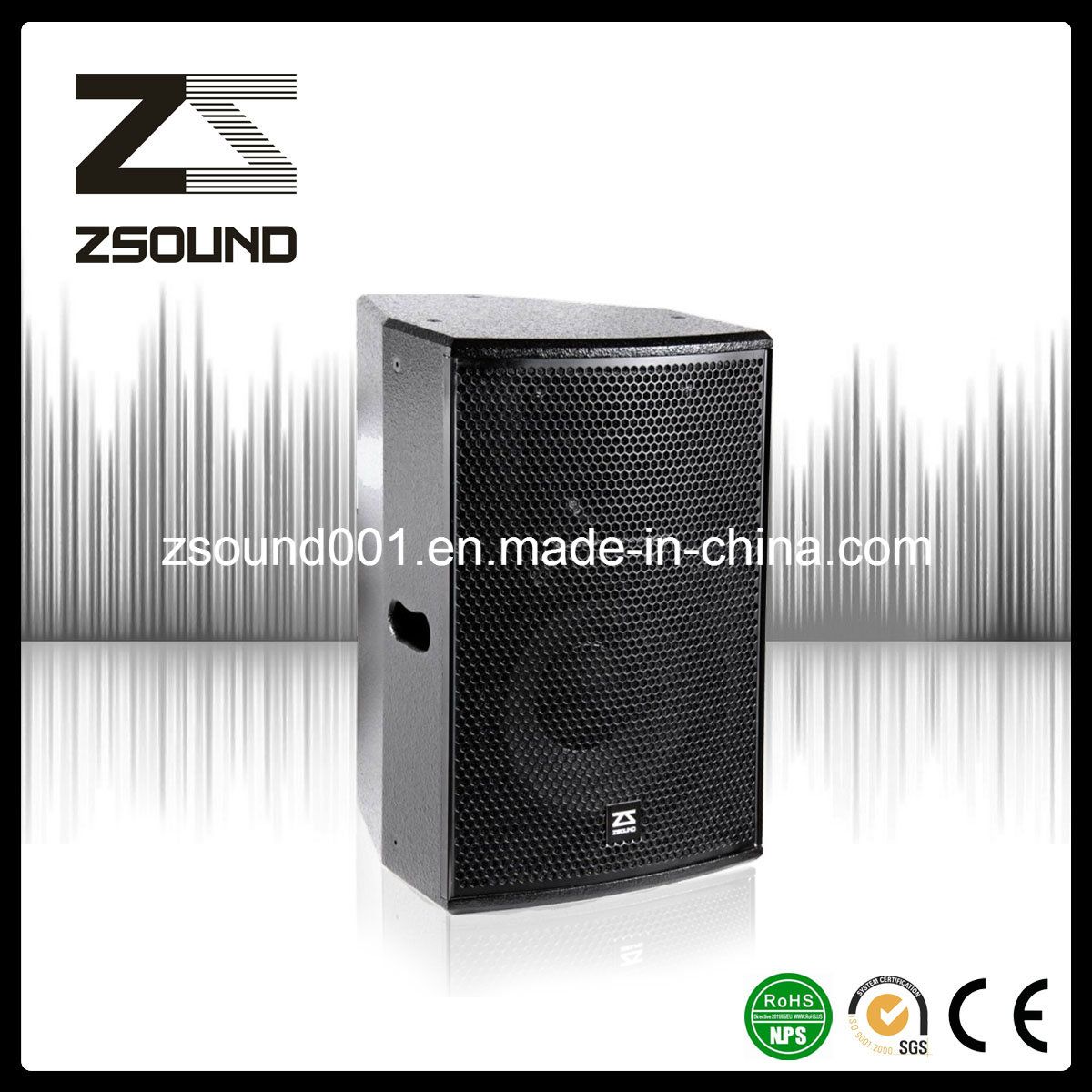

pro audio loudspeaker audio speaker box
ZSOUND P12 is a medium scale two-way passive system, utilizing the latest Phase control technology,
with bandwidth ranges from 50Hz to 20KHz. Combining with SB series subwoofer,
the frequency response will extend to 32Hz.
The enclosure features a 12"LF driver and a 44mm (diaphragm) HF compression driver mounted on a constant directivity horn,
with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
P12 consist of an adoptive crossover network, the given design would ensure the two drivers work together appropriately and perfect.
Feature:
Frequency response special design to avoid auditory fatigue
Rotatable and asymmetrical horn
13xM8 rigging points
Pole mount socket
Applications:
Bar
Theatre
Stage monitor
| TECHNICAL SPECIFICATION |
| FREQUENCY RESPONSE: | 60Hz-18KHz(±3dB) 50Hz-20KHz(-10dB) |
| NOMINAL COVERAGE(-6dB): | 50°~100° (H) 55° (V) Constant directivity |
| SENSITIVITY (@1w/1m): | 96db SPL |
| POWER RATING(AES): | 400W |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 122dB (continuous) 128dB(Peak) |
| DRIVERS: | LF 1 x 12"woofer(75mm voice coil) woofer HF 1×44mm (44mm voice coil) compression driver |
| |
| PHYSICAL DATA |
| DIMENSIONS (H x W x D): | 576 x 372 x 384mm |
| WEIGHT: | 23kg |
| CONNECTORS: | 2 x NL4MP Neutrik connectors |
| SPEAKER CABLES: | 1+1- |
| MATERIALS: | 18mm,24mm birch plywood |
| FINISH: | Black epoxy mesh grille acoustically reticulated foam |
| GRILLE: | |
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Our advantages:
1) global leading professional manufacturer of professional speaker and amplifier
2) product quality: superior speaker and amplifier, top technology and quality
3) certificate: CE, RoHS, GS,SGS,ISO9001
4) monthly production capacity: 2000 pieces
5) fast delivery: get your order when you need it

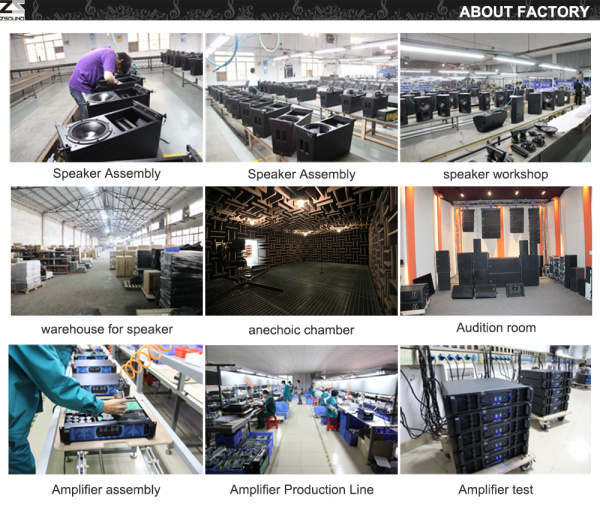

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
