| Prod Model: |
845 |
| Noise: |
≥105dB |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CE |
| THD: |
<0.03% |
| Hi-Fi: |
PRO |
| Operation Mode: |
AMP |
| Monitor: |
Stage |
Product Description
Key Specifications/Special Features:

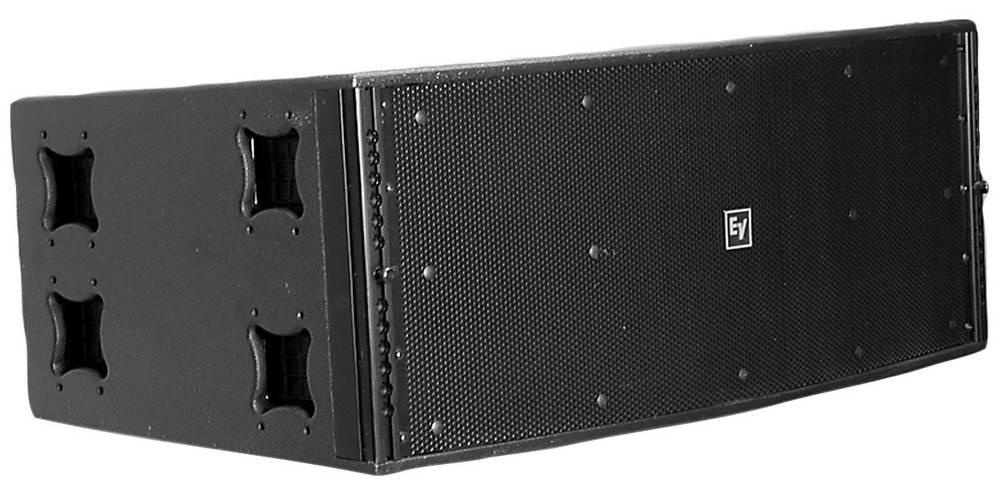

TYPE:Three-way line array element
FREQUENCY RESPONSE(5):60 Hz-18KHz±3dB
DRIVERS:12"(300mm)/3"(75mm) voice coil,Hybrid bass horn loaded
2x6.5"(165mm)1.5"(38mm)coil drivers
3x1"(25mm) exit HF compression drivers,horn loaded
RATED POWER(2):LF:400W AES,1600W peak
MF:200W AES,800W peak
HF:100W AES,400W peak
SENSITIVITY(6):LF;103dB
MF:106dB
HF:109dB
MAXIMUM SPL:LF:129dB continuors,135dB peak
MF:129dB continuous,135dB PEAK
HF:129dB continuors,135dB peak
NOMINAL IMPEDANCE:LF;8 ohms
MF:8 ohms
HF:8 ohms
DISPERSION(-6dB):90ºhorizontal,7.5ºvertical
120ºhorizontal@-10dB
CROSSOVER:300Hz,3kHz active
ENCLOSURE:Vertical trapezoid with 3.75º wall angle
multilaminate brich ply construction
FINISH:Textured black paint
PROTECTIVE GRILLE:Black perforated steel
CONNECTORS:2xNeutrik NL8
FITTINGS:Proprietary rigging system
DIMENSIONS:(W)1000mm X (H)367mm X(D)550mm
(W)39.4ins X(H)14.5ins X(D) 21.7ins
Weight:58kg(128lbs)
Primary Competitive Advantages:
Country of Origin
Distributorships Offered
Electronic Link
Experienced Staff
Green Product
Guarantee/Warranty
International Approvals
Military Specifications
Packaging
Price
Product Features
Product Performance
Prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted
Main Export Markets:
Central/South America
Eastern Europe
North America
Payment Details:
Payment Terms:Telegraphic Transfer (TT,T/T)
Minimum Order:100 Pieces
Guangzhou Dechange Audio Co, . Ltd. Is located in Guangzhou, China, a professional speakers manufacturer. Which is dedicated to manufacturing various medium and high-end speakers, consisting of professional speakers, car speakers, Hi-Fi speakers, home audio speakers.
Based on more than 20y ears industry experience, Dechange company always manufactures award-winning speakers. Depending on a strong R&D department and experienced engineers, we also can design and make OEM/ODM products according to your artwork and special requirement.
Dechange company is becoming to a large-scale enterprise with research, production, assembly and marketing capabilities. Our products are distributed to clients from all over the world.
At Dechange company, quality control is more an action than a slogan. Strict quality control is implemented in all aspects of operations to meet the high standards of top-tier customers. This philosophy has permeated all levels of production processes, covering:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Random warehouse inspections
Welcome OEM order!
We are looking forward to receiving your inquiries!
