| Prod Model: |
PAC120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
12.6kg |
| Color: |
Black |
| Tone Control: Bass: |
±10db at 100Hz/Trebl |
| Working Temperature: -: |
10to +4o |
| Application: |
Commercial |
| Operation Mode: |
Knob Control |
| Hi-Fi: |
Hi-Fi |
| Speaker Material: |
Plastic |
| THD: |
<0.03% |
| Noise: |
<95dB |
| Certification: |
UL |
Product Description
Product description

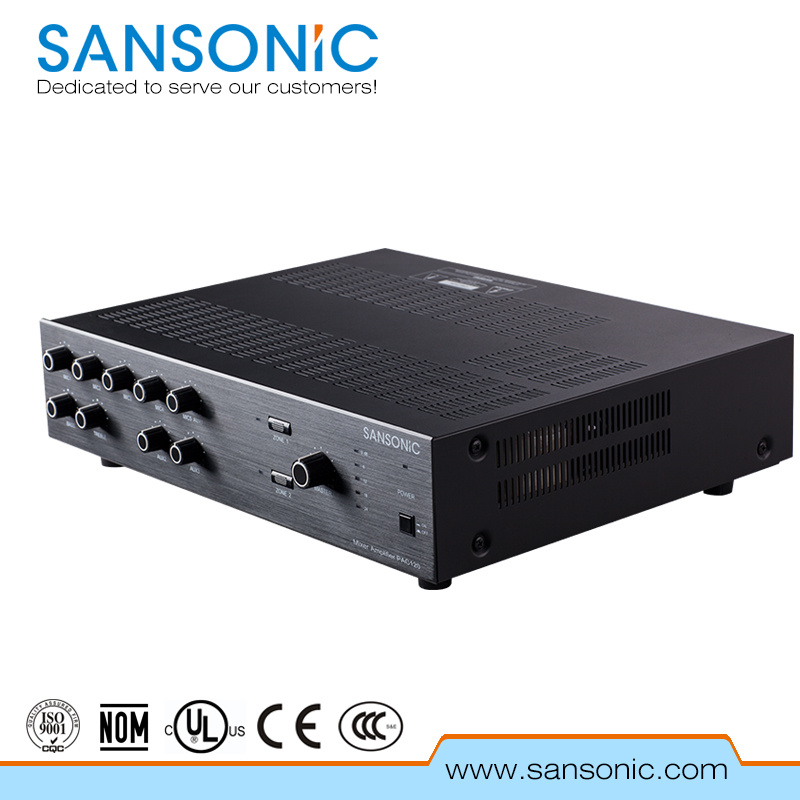

PAC120 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 120W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ω And 100V are selectable for different speaker installation matching. Less than 1% at 1kHz, Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~5 Canon port balanced input
3. AUX1 Canon port balanced input, AUSX2-3 line RCA liner input
4. The panel with volume adjustment knob
5.4~16Ω , 100V output terminal multi-impedance output
6. Pre RCA output
7. Line 1/2 liner and Zone 2 liner output
8. Signal lamp, peak lamp display
9. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
| Specification |
| Model | PAC120 |
| Power requirement | 110-125V AC or 220V-230V AC,50/60Hz |
| Rated power | 120W |
| Distortion | Less than 1% at 1 kHz |
| Frequency Response | 50~20,000Hz(±3dB) |
| Outputs | Recording Output | 0dB, 600Ω Unbalanced, RCA pin jack |
| Liner Outputs1,2 | 0dB, 600Ω Unbalanced, RCA pin jack |
| Speaker Output | High Impedance:70V\25V screw terminal
|
Low Impedance: 8ohmscrew terminal
|
| Inputs | MIC 1-5: | 60dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack
|
| AUX 1: | -20dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack
|
| AUX2-3 | -20dB, 10k ohm unbalanced RCA pin jack |
| Operating Temperature | -10 to +40 |
| Color | black |
| Dimensions(W*H*D): | 420mm x 109mm x 357mm |
| Weight | 12.6kg |
