| Prod Model: |
XP5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Conductive Mode: |
Class Ab or H |
Product Description

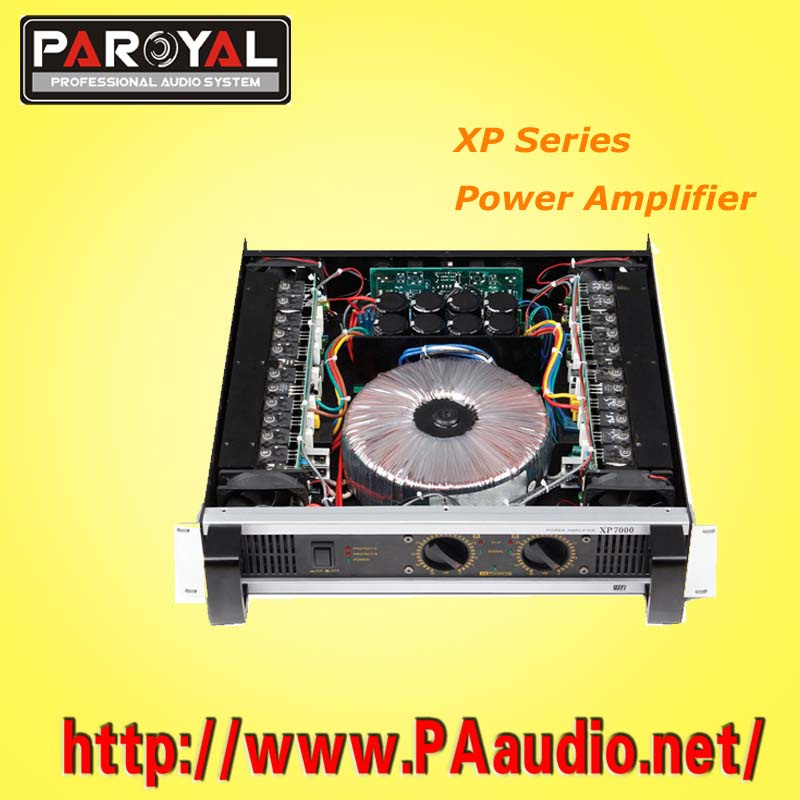

Amplifier (XP5000), Paroyal Audio Manufacturing Co., Ltd, Professional audio, power amplifier, PRO audio systems product
Model: XP1000 XP2500 XP3500 XP5000 XP7000 XP7000(T) power amplifier
|
SPECIFICATIONS |
XP1000 |
XP2500 |
XP3500 |
XP5000 |
XP7000 |
XP7000(T) |
|
|
STEREO MODE (Both Channels Driven) |
|
8 ohms |
|
|
|
|
|
|
|
FTC20 Hz -20 kHz, 0.1%THD |
300 W |
400 W |
500 W |
700 W |
850 W |
1000 W |
|
4 ohms |
|
|
|
|
|
|
|
FTC20 Hz - 20 kHz, 0.1% THD |
450 W |
620 W |
750 W |
1050 W |
1300 W |
1500 W |
|
2 ohms |
|
|
|
|
|
|
|
EIA 1kHz, 1% THD |
720W |
950 W |
1200 W |
1650 W |
2000 W |
2400W |
|
|
BRIDGE MONO MODE |
|
8 ohms |
|
|
|
|
|
|
|
FTC 20Hz - 20kHz, 0.1% THD |
870W |
1150 W |
1450 W |
2050 W |
2450 W |
2900W |
|
4 ohms |
|
|
|
|
|
|
|
EIA 1kHz, 1%THD |
1450 W |
1850 W |
2400 W |
3300 W |
4000 W |
4800W |
|
Signal to Noise, 20Hz-20kHz |
98 dB |
100 dB |
101 dB |
102 dB |
104 dB |
106 dB |
|
|
ALL MODELS |
|
Distortion (Typical) |
|
|
20Hz-20kHz: 10dB below rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
1.0kHz and below: full rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
Frequency Response |
20 Hz-20 kHz, ± 1 dB |
|
-3 dB points: 5 Hz - 50 kHz |
|
Damping Factor, 1kHz and below |
Greater than 300 at 8 ohms |
|
Input Impedance |
10k ohms unbalanced, 20k ohms balanced |
|
Input Clipping |
10 Vrms (+22 dB) |
|
Cooling |
Continuously variable-speed fan, rear-to-front air flow |
|
Connectors, each channel |
Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) |
|
TRS tip and XLR (pin 2 positive) |
|
Output: touch-proof binding posts and Neutrik® Speakon® |
|
Controls |
Front: AC switch, Ch. 1 and Ch. 2 gain knobs |
|
Rear: 10-position DIP switch |
|
Indicators |
Power-On: Green LED |
|
Signal: Yellow LED (1 per channel) |
|
Clip: Red LED (1 per channel) |
|
Amplifier Protection |
Stable into reactive or mismatched loads |
|
Load Protection |
On/off muting, AC coupling , triac crowbar , on each channel) |
|
Power Requirements |
100, 120, 230 VAC, 50-60 Hz |
|
Dimensions |
480*480*100(mm) |
