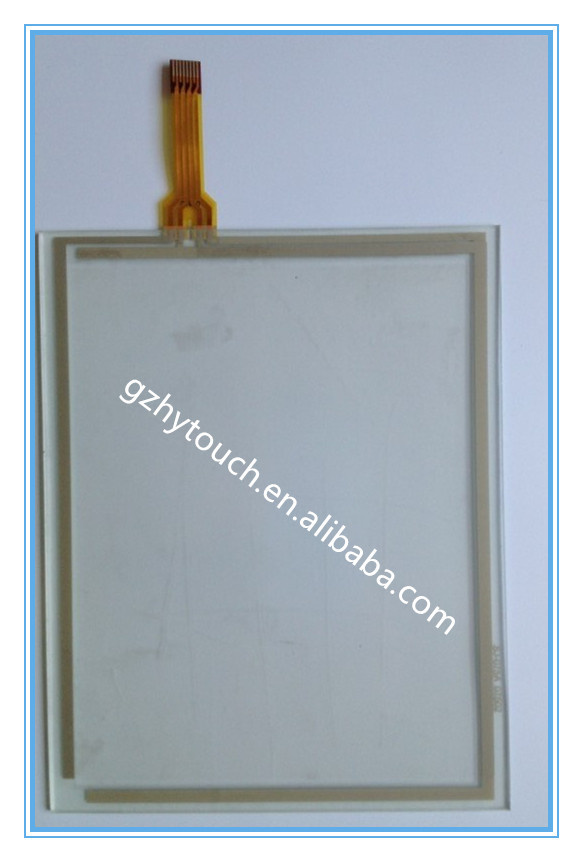

Printer Touch Screen in China New Design
| Price: |
US $ 34/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description
| Main Specifications: | |
| Thickness | 1.8mm |
| Screen Size | 5.8'' |
| Conductive Glass | ITO 0.7, 1.1, 1.8 |
| Conductive Film | 188 μm |
| Structure | Conductive film, ITO film |
| Key Sheet or Glue | Conductive glass, ITO glass |
| Insulation Distance | 3 * 3mm |
| Connector | FPC flexible printed circuit |
| Electrical Performance |
| Loop Resistance | 50~300Ω |
| Linearity | ≤±1.5% |
| Insulation Resistance | ≥10MΩ, @25V (DC) |
| Maximum Operation Voltage | 5V (DC), 1mA |
| Chattering Time | ≤15ms |
| Response Time | ≤30ms (from the touch moment to response) |
| Mechanical Behavior |
| Input Method | Pen or finger |
| Operation Force | OD 2mm pen within 60g~150g pressure |
| Surface Hardness | 3H |
| Transparency | 80 ± 3% @550nm wave length |
| Environmental |
| Operation Temp | -10~60°C |
| Storage Temp | -20~70°C |
| Writing life | More than 1000,000 times |
| Stamping life | More than 1000,000times |
| Touch life | >350,000,000 Times according to different touch screen |
Guangzhou Quanchutong Electronic Factory is first founded in 2003. Our company mainly produce 4 wires and 5 wires resistive touch screens. We made resistive touch panels from 2 inch to 24 inch and capacitive touch panels from 2 inch to 65 inch. Meet the diverse requirements of the clients, such as point of sale (POS), hospitality, medical and health care IT, industrial and consumer. As a pioneer in the industry with many years of experience.
Our company has passed ISO9001 and ISO1400 certification. We aim at meeting the clients' needs and expectations by the way of improving the products performance and quality, reducing the cost and getting the price down, offering the top service. High technology and environmental friendly enterprise is what we want to be.
